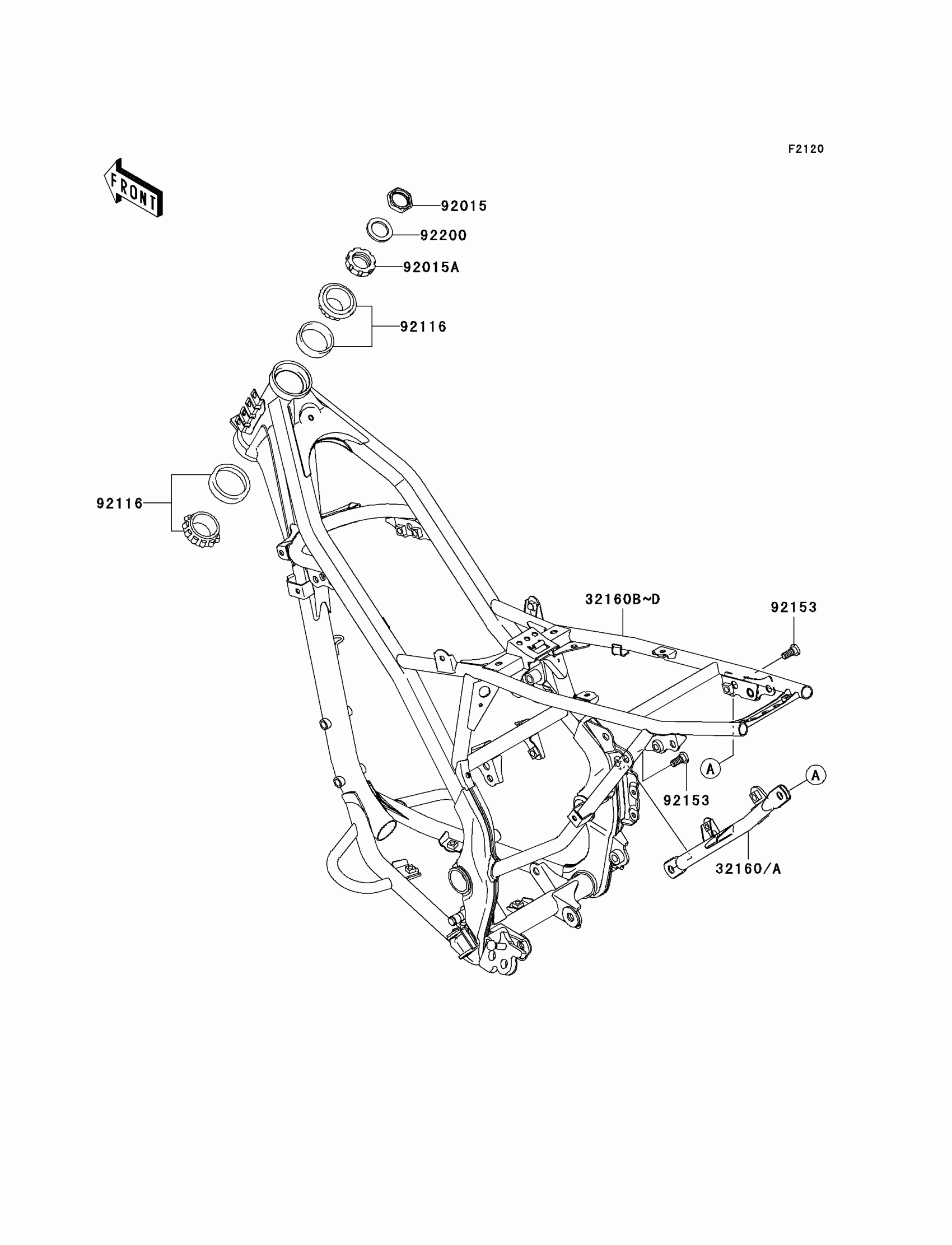

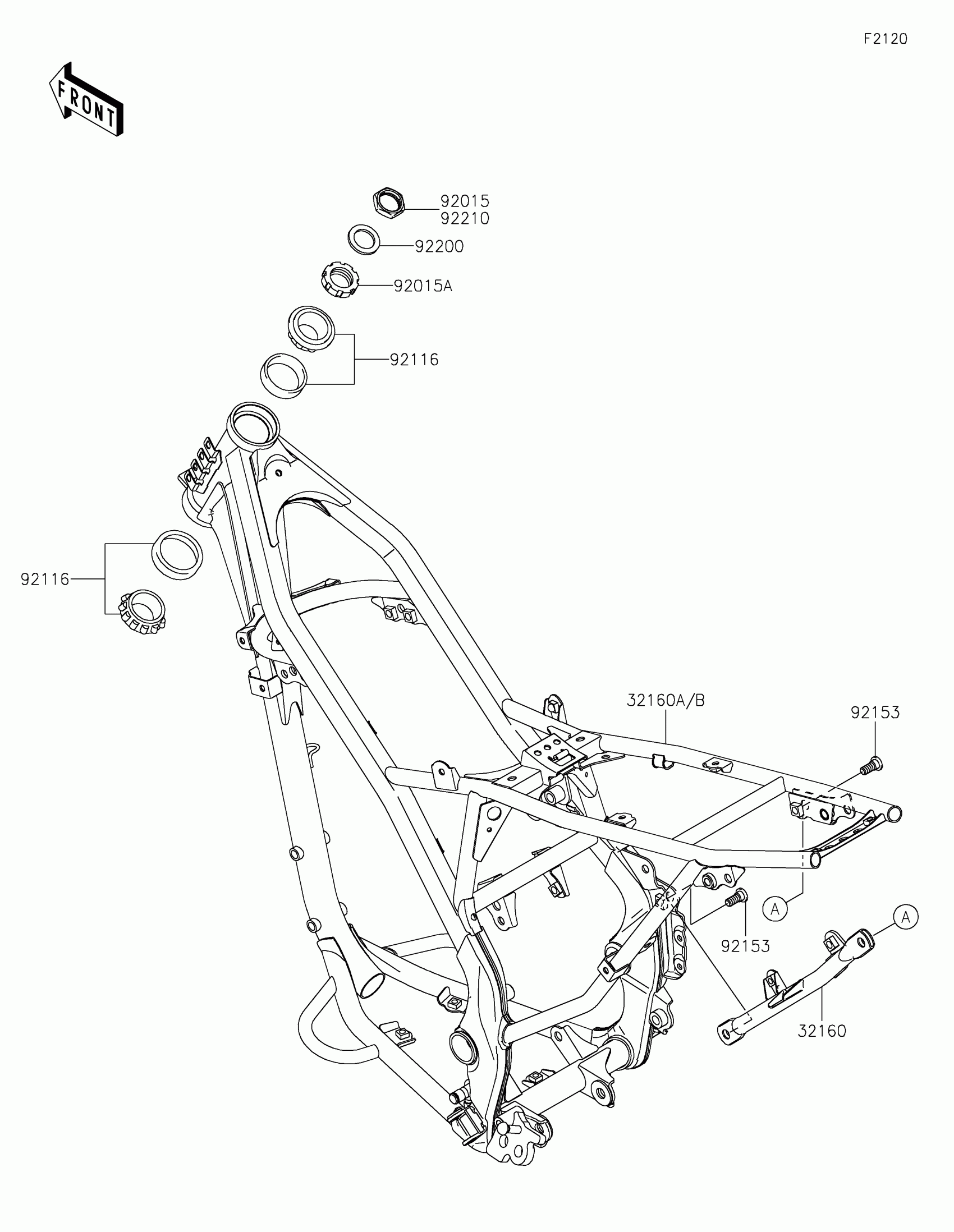

Kawasaki KLX®140L Frame Diagram

FRAME-COMP,RR,P.SILVER

32160-0239-458

$93.54

FRAME-COMP,MAIN,P.SILVER

32160-0342-458

$1,022.29

NUT,STEERING STEM,22MM

92015-1653

$12.66

NUT,STEERING STEM,25MM

92015-1684

$20.39

BEARING-ROLLER,H1-CAP32005JRRS

92116-1065

$38.13

BOLT,SOCKET,8X20

92153-1621

$1.57

WASHER,STEERING STEM

92200-0517

$7.47
