2011 Kawasaki KLX®140 Rear Brake Diagram

← All diagrams

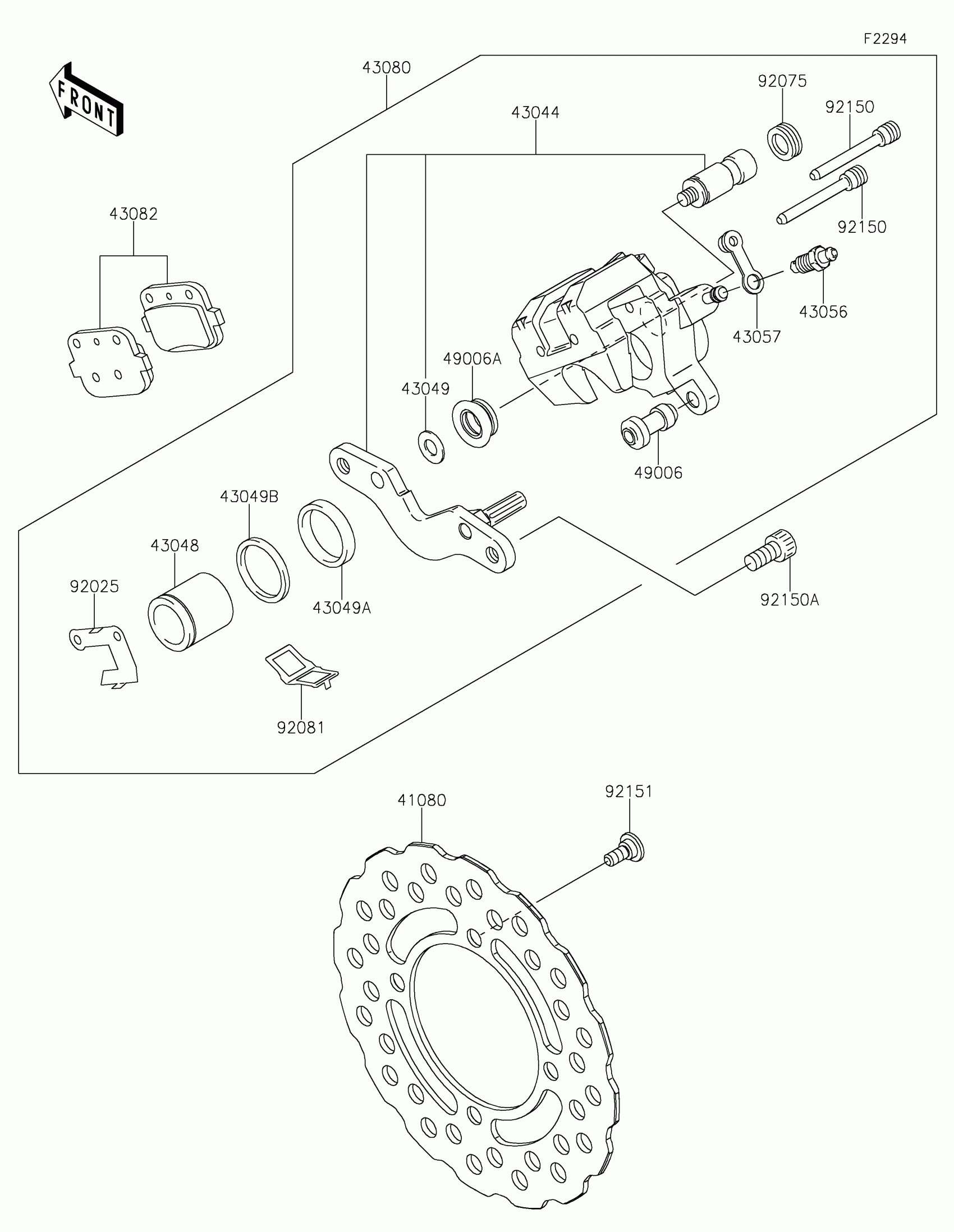

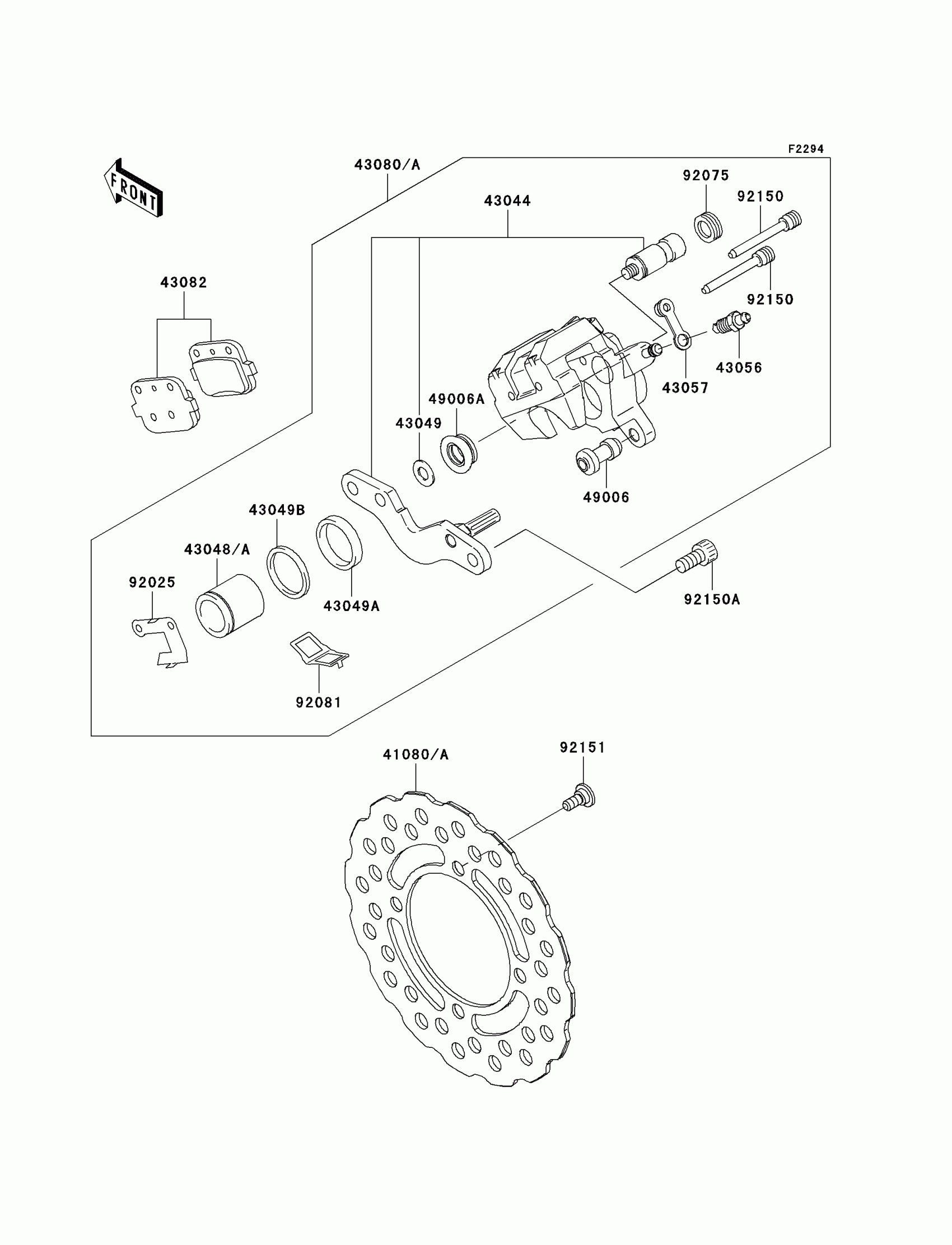

Find the part on the Rear Brake diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLX®140 Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080A

DISC,RR

41080-0170

1

$193.68

In stock

43044

1

$50.69

In stock

43048

PISTON-CALIPER

43048-0015

1

$47.40

In stock

43049

PACKING

43049-1025

1

$4.80

In stock

43049A

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049B

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056

BREATHER-BRAKE

43056-0004

1

$12.83

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43080A

CALIPER-SUB-ASSY,RR

43080-0075

1

$178.83

In stock

43082

PAD-ASSY-BRAKE

43082-1205

1

$54.48

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1089

1

$5.88

In stock

92025

SHIM,PAD

92025-1817

1
Out of stock

92075

DAMPER

92075-1414

1

$7.25

In stock

92081

SPRING,PAD

92081-1502

1

$8.31

In stock

92150

BOLT

92150-1144

1

$7.86

In stock

92150A

BOLT,SOCKET,8X16

92150-1840

1

$3.75

In stock

92151

BOLT,DISC PLATE,6MM

92151-1799

1

$3.29

In stock
