2011 Kawasaki KLX®140 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

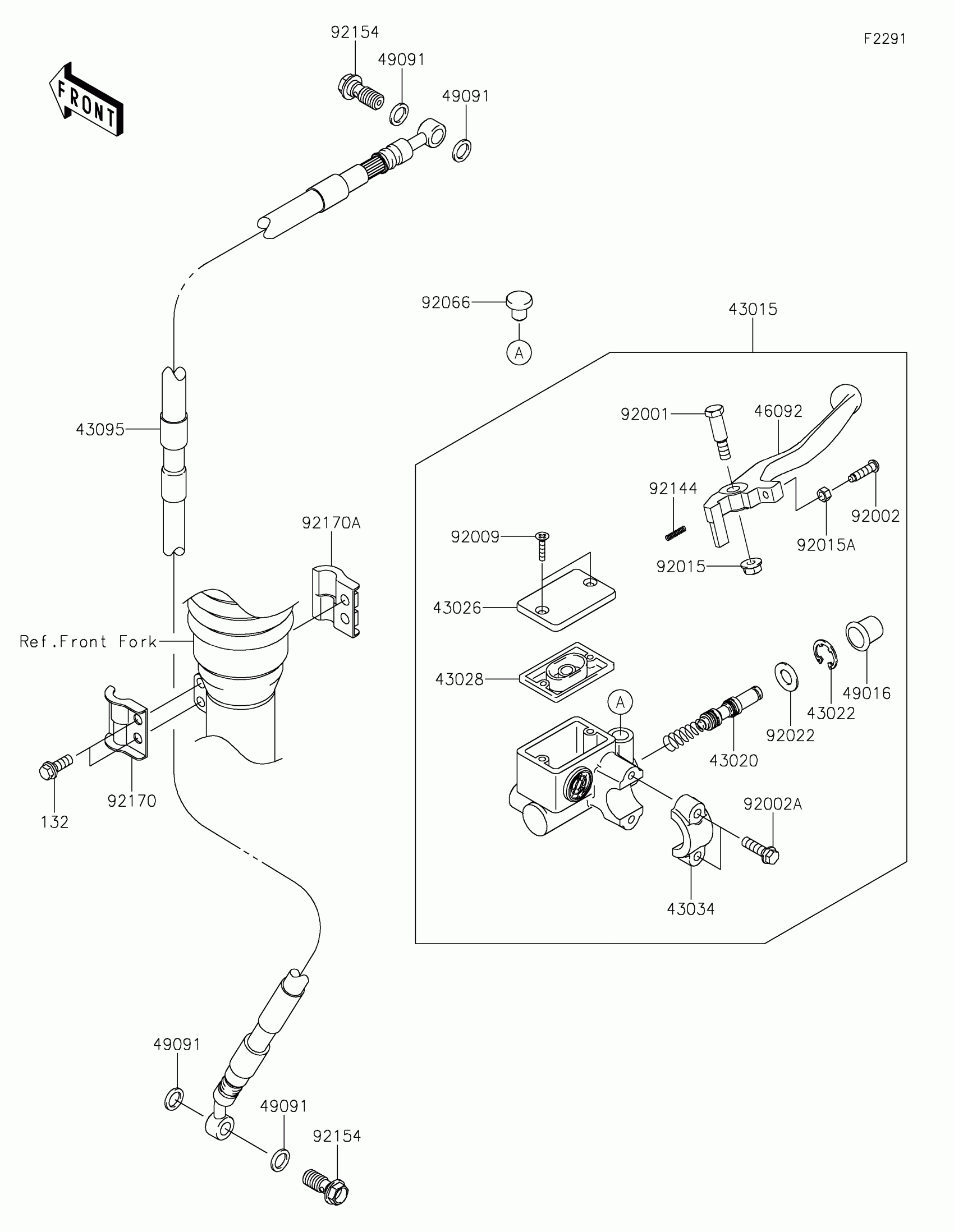

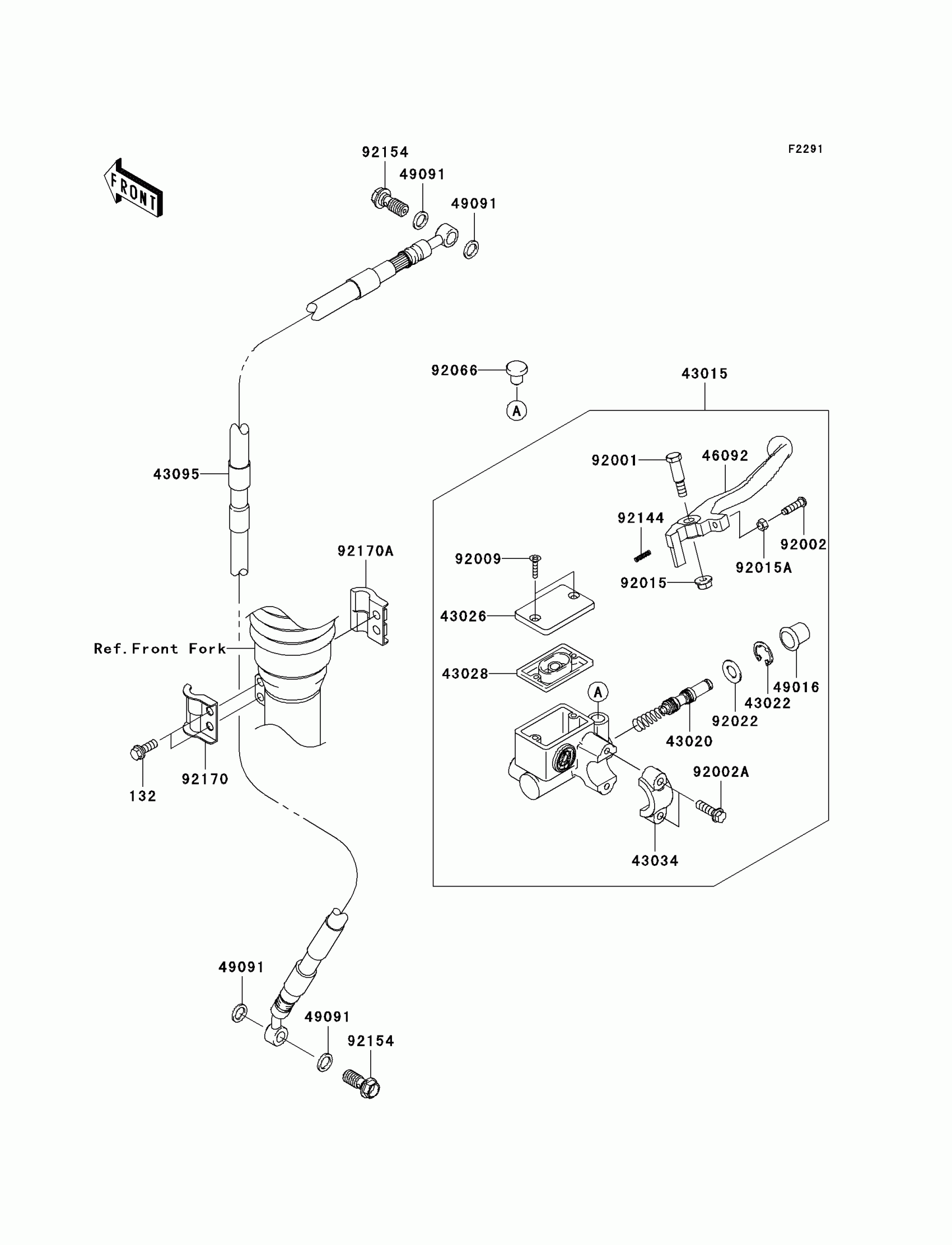

2011 Kawasaki KLX®140 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.21

In stock

43015

1

$271.88

In stock

43020

PISTON-COMP-BRAKE

43020-1065

1

$52.23

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1074

1

$23.33

In stock

43028

DIAPHRAGM

43028-1061

1

$12.79

In stock

43034

1

$15.29

In stock

43095

HOSE-BRAKE,FR

43095-0335

1

$96.35

In stock

46092

1

$20.31

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92001

1

$11.26

In stock

92002

BOLT,ADJUST

92002-1893

1
Out of stock

92002A

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,ADJUST

92015-1642

1

$3.12

In stock

92022

WASHER

92022-1814

1
Out of stock

92066

PLUG

92066-1348

1

$0.85

In stock

92144

SPRING,RETURN

92144-1103

1

$7.48

In stock

92154

BOLT,OIL,L=23

92154-0226

1

$4.68

In stock

92170

1

$7.25

In stock

92170A

1

$7.25

In stock
