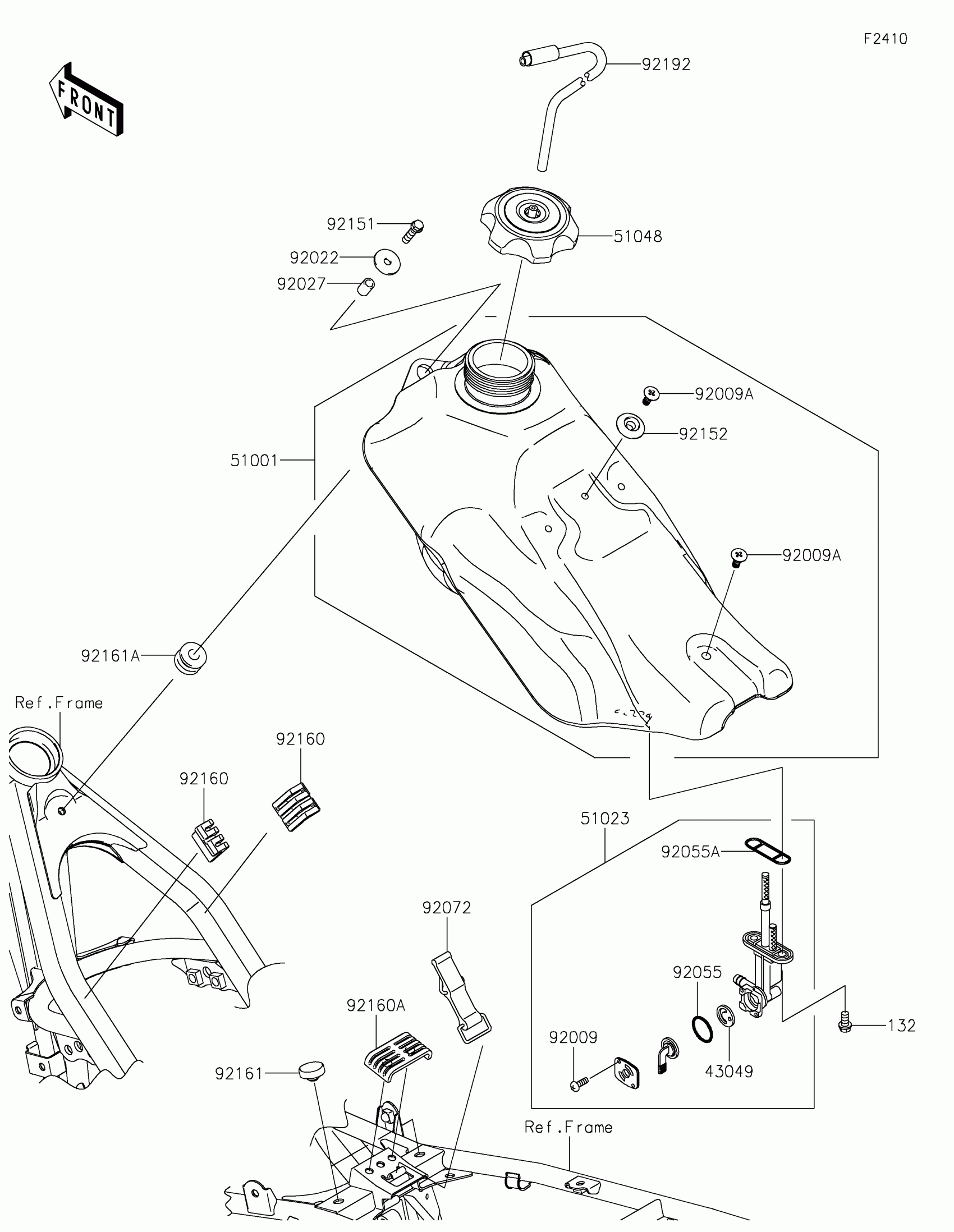

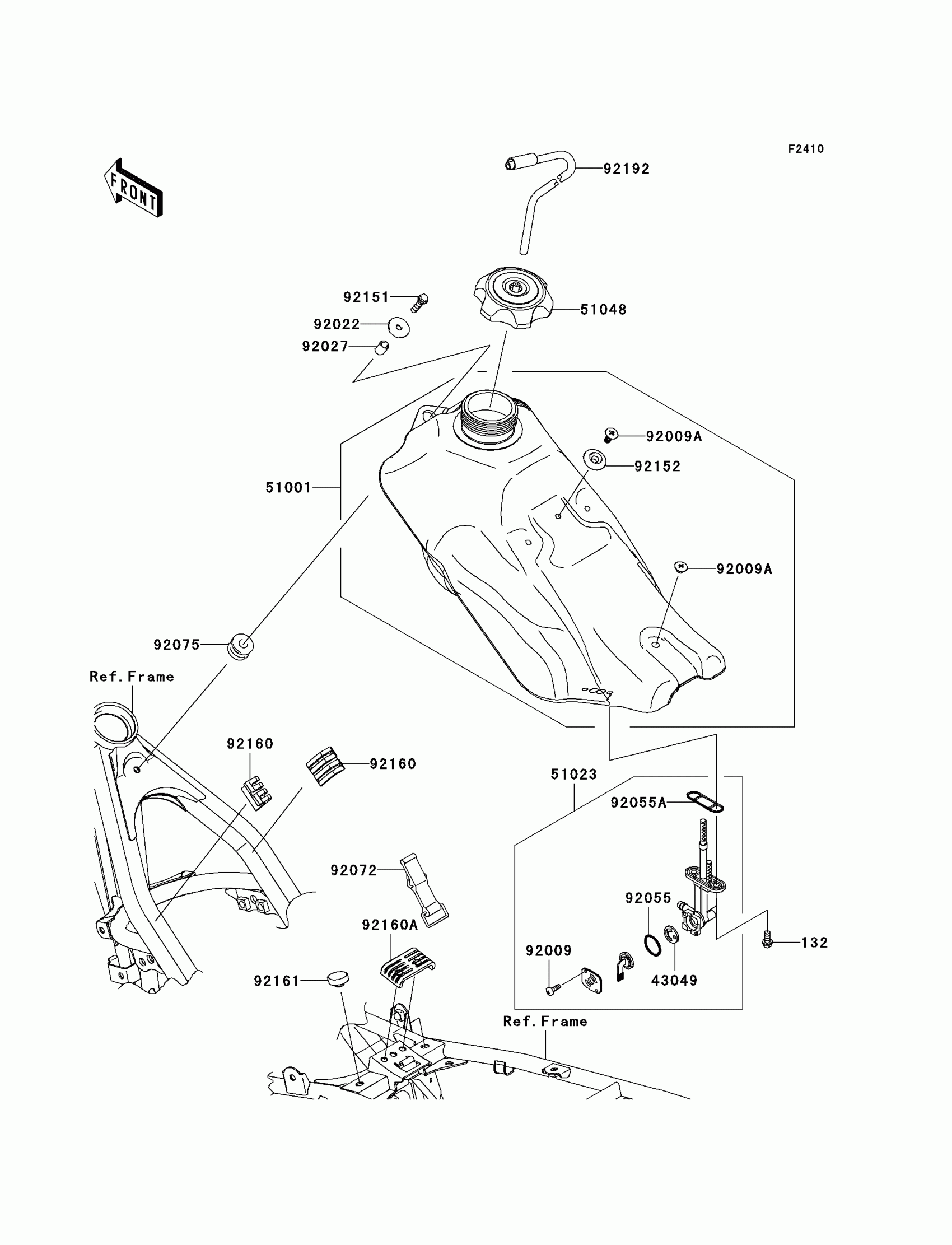

Find the part on the Fuel Tank diagram for your 2011 Kawasaki KLX®140, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki KLX®140 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

43049

PACKING,VALVE

43049-1102

1

$5.77

In stock

51001

TANK-COMP-FUEL

51001-0192

1

$432.99

In stock

51023

TAP-ASSY,FUEL

51023-0030

1

$81.79

In stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1

$53.60

In stock

92009

SCREW,3X5

92009-1123

1
Out of stock

92009A

SCREW,6MM

92009-1971

1
Out of stock

92022

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.8X10X14

92027-1966

1

$4.42

In stock

92055

1

$3.97

In stock

92055A

1

$3.97

In stock

92072

BAND,FUEL TANK

92072-0109

1

$9.74

In stock

92075

DAMPER

92075-1787

1

$5.21

In stock

92151

1

$2.06

In stock

92152

COLLAR

92152-0569

1

$4.95

In stock

92160

DAMPER,FUEL TANK

92160-1328

1

$5.84

In stock

92160A

DAMPER,FUEL TANK,RR

92160-1397

1

$7.71

In stock

92161

DAMPER

92161-0336

1

$4.47

In stock

92192

TUBE

92192-0161

1
Out of stock
