2014 Kawasaki KLX®110L Fuel Tank Diagram

← All diagrams

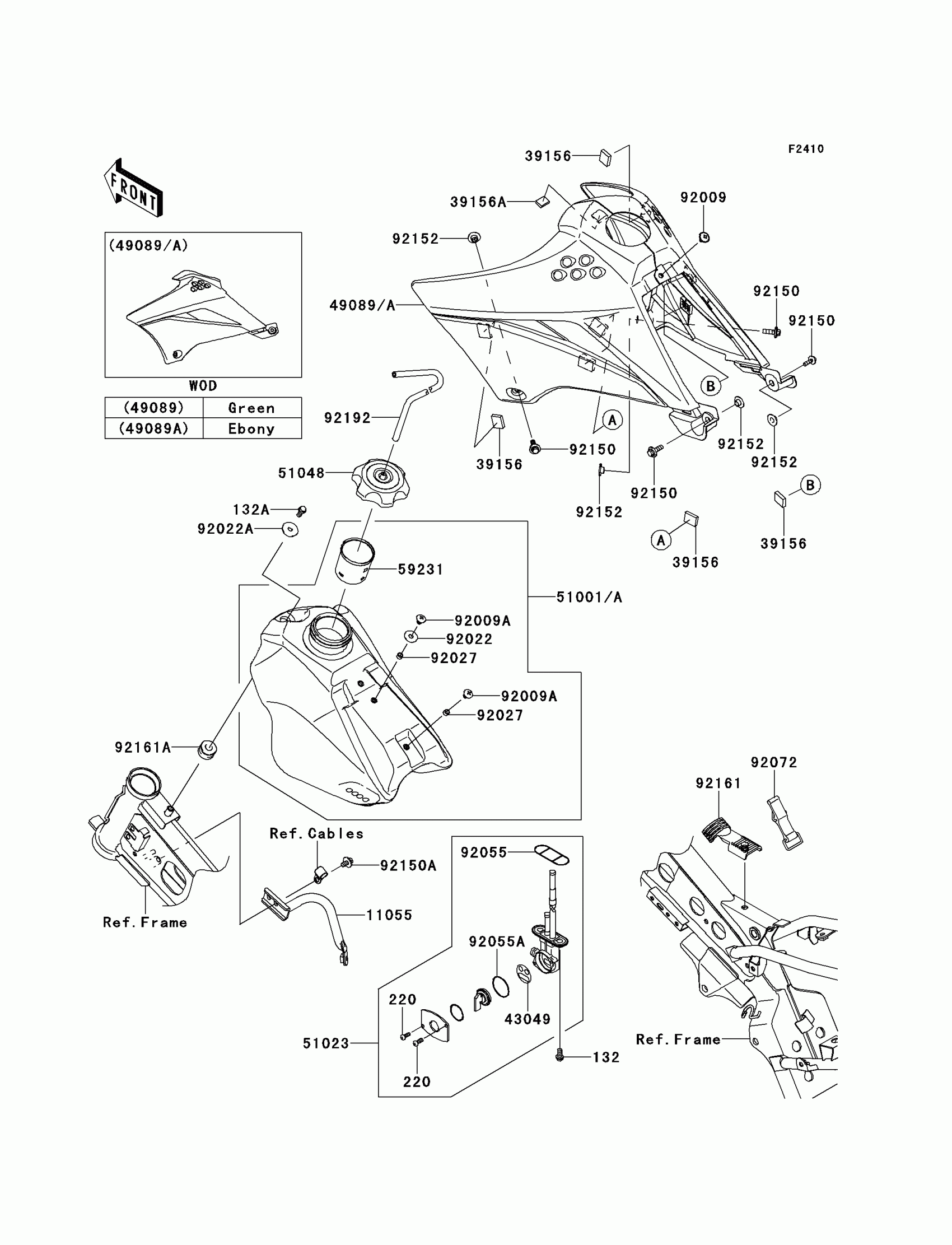

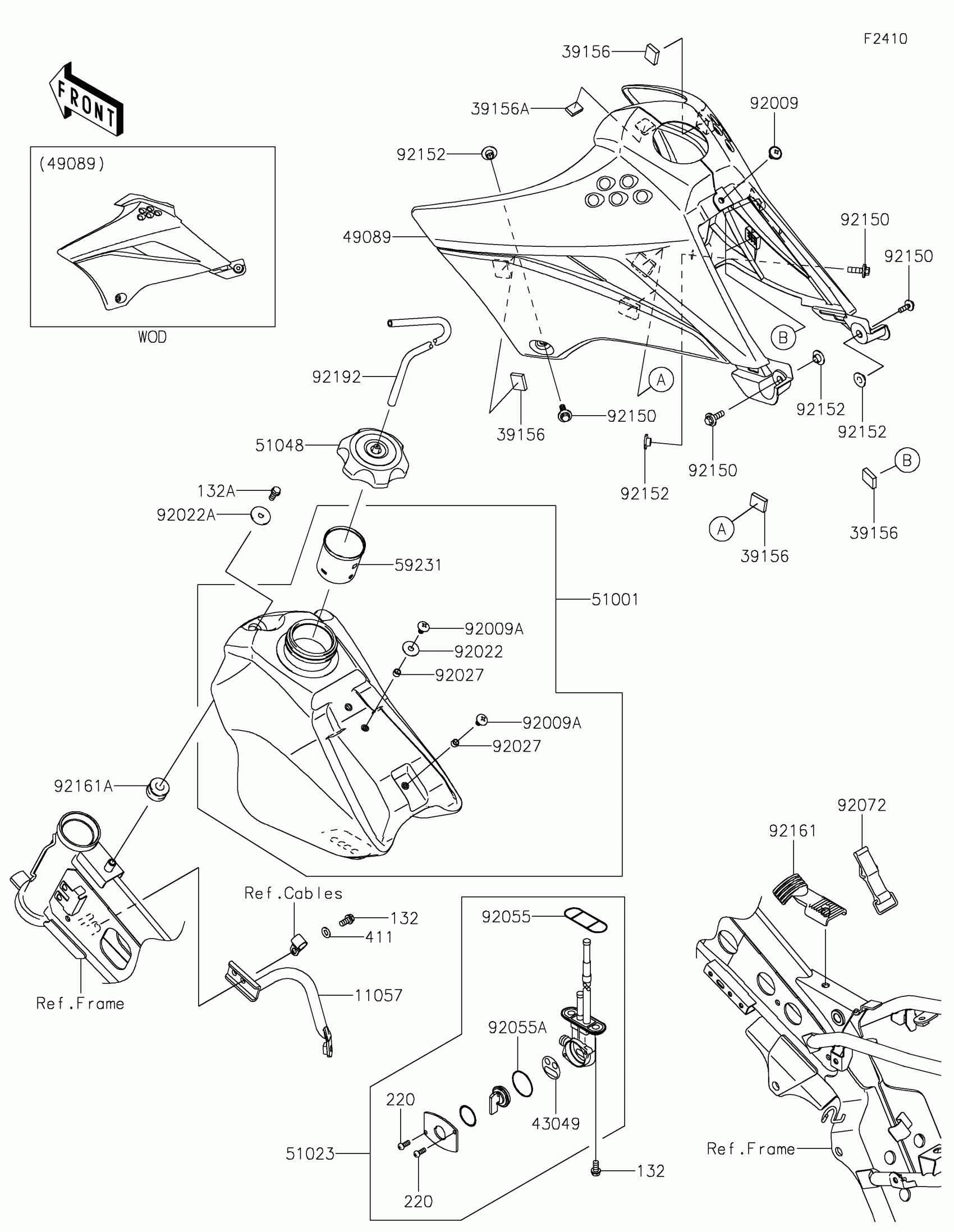

Find the part on the Fuel Tank diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLX®110L Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.12

In stock

132A

1

$1.31

In stock

220

SCREW-PAN-CROS,3X8

220AA0308

1

$0.63

In stock

11055

BRACKET,SHROUD,RH

11055-1636

1

$16.17

In stock

39156

PAD,16X20X5

39156-0580

1

$2.56

In stock

39156A

PAD,12X17X4

39156-0581

1

$2.56

In stock

43049

PACKING,TAP VALVE

43049-1091

1

$5.77

In stock

49089

SHROUD-ENGINE,L.GREEN

49089-0081-290

1

$93.62

In stock

51001A

TANK-COMP-FUEL

51001-0771

1

$338.24

In stock

51023

TAP-ASSY

51023-0036

1
Out of stock

51048

CAP-ASSY-TANK,FUEL

51048-0009

1

$53.60

In stock

59231

FILLER

59231-0051

1

$5.97

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92009A

SCREW,6X10

92009-1530

1
Out of stock

92022

1

$3.29

In stock

92022A

WASHER,6.5X24X2

92022-1690

1

$3.12

In stock

92027

COLLAR,6.2X7.8X5

92027-2096

1

$0.53

In stock

92055

1

$5.84

In stock

92055A

RING-O,TAP LEVER

92055-1419

1

$3.97

In stock

92072

BAND,FUEL TANK

92072-1229

1

$10.09

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92150A

BOLT,6X12

92150-1435

1

$3.43

In stock

92152

COLLAR

92152-0427

1

$6.16

In stock

92161

DAMPER,FUEL TANK

92161-0779

1

$13.42

In stock

92161A

DAMPER

92161-1523

1

$3.27

In stock

92192

TUBE,5X8X380

92192-0884

1
Out of stock
