2014 Kawasaki KLX®110L Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

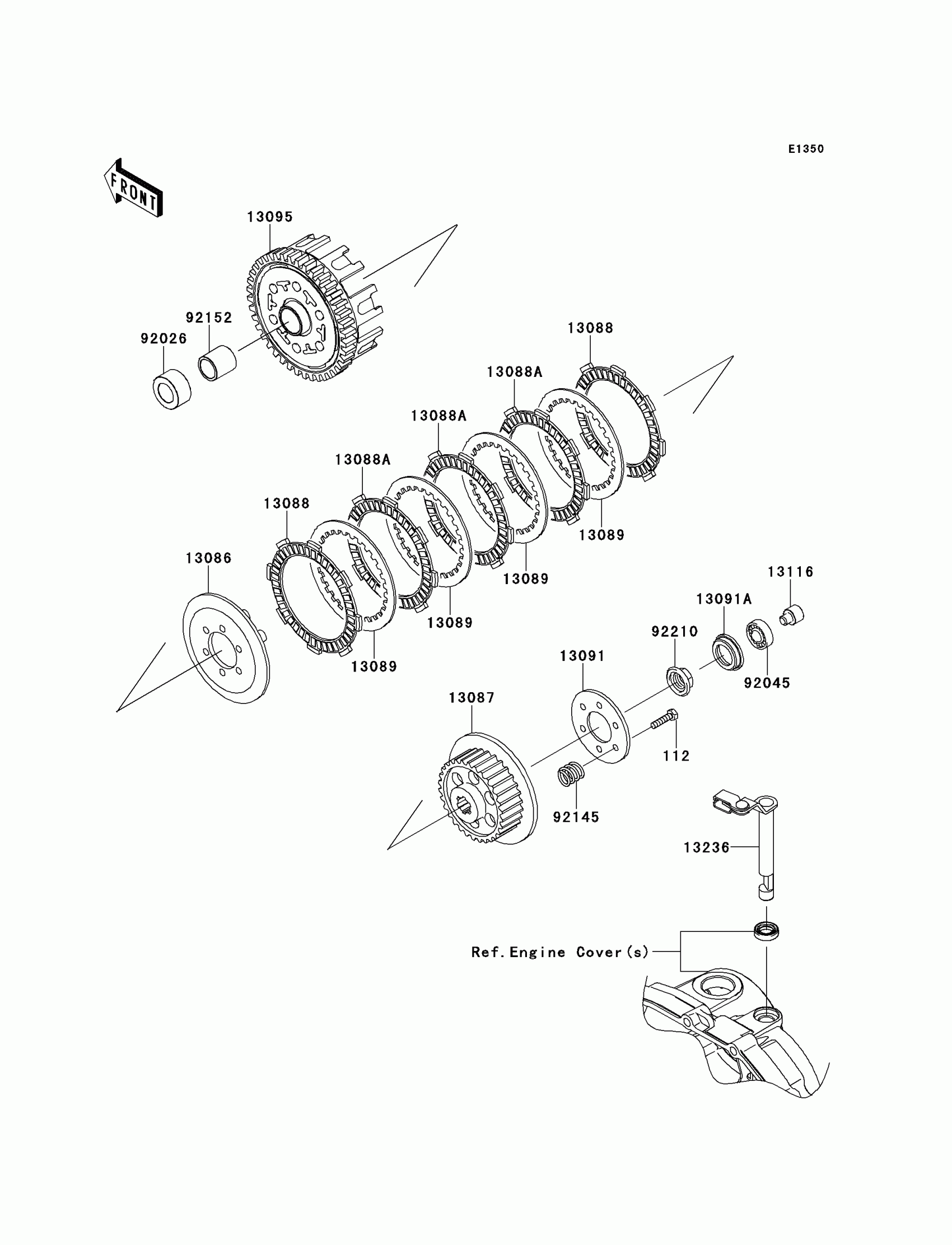

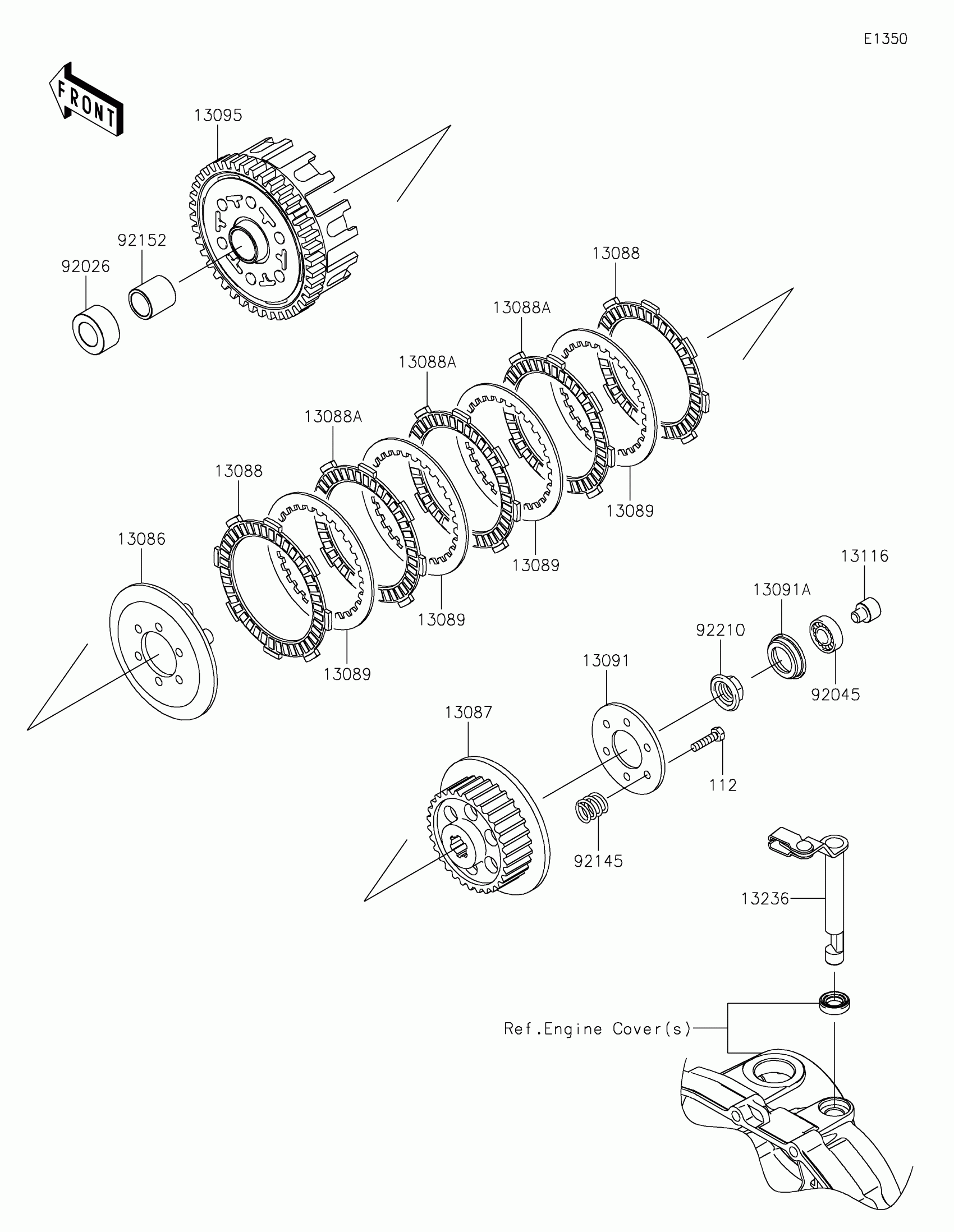

2014 Kawasaki KLX®110L Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET,5X20

112BA0520

1

$4.37

In stock

13086

WHEEL-CLUTCH

13086-1065

1

$26.70

In stock

13087

HUB-CLUTCH

13087-1151

1

$41.45

In stock

13088

PLATE-FRICTION

13088-0047

1

$12.10

In stock

13088A

PLATE-FRICTION

13088-0048

1

$10.03

In stock

13089

PLATE-CLUTCH

13089-1087

1

$10.14

In stock

13091

HOLDER,CLUTCH

13091-1782

1

$7.76

In stock

13091A

HOLDER

13091-1787

1

$10.24

In stock

13095

HOUSING-COMP-CLUTCH

13095-1403

1

$97.35

In stock

13116

ROD-PUSH

13116-0038

1

$7.15

In stock

13236

LEVER-COMP

13236-0177

1

$52.62

In stock

92026

SPACER

92026-1605

1

$3.76

In stock

92045

BEARING-BALL,#628

92045-1123

1

$21.64

In stock

92145

SPRING

92145-0713

1

$5.97

In stock

92152

COLLAR,17X22X22.7

92152-0393

1

$15.93

In stock

92210

NUT,14MM

92210-1374

1
Out of stock
