2014 Kawasaki KLX®110L Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

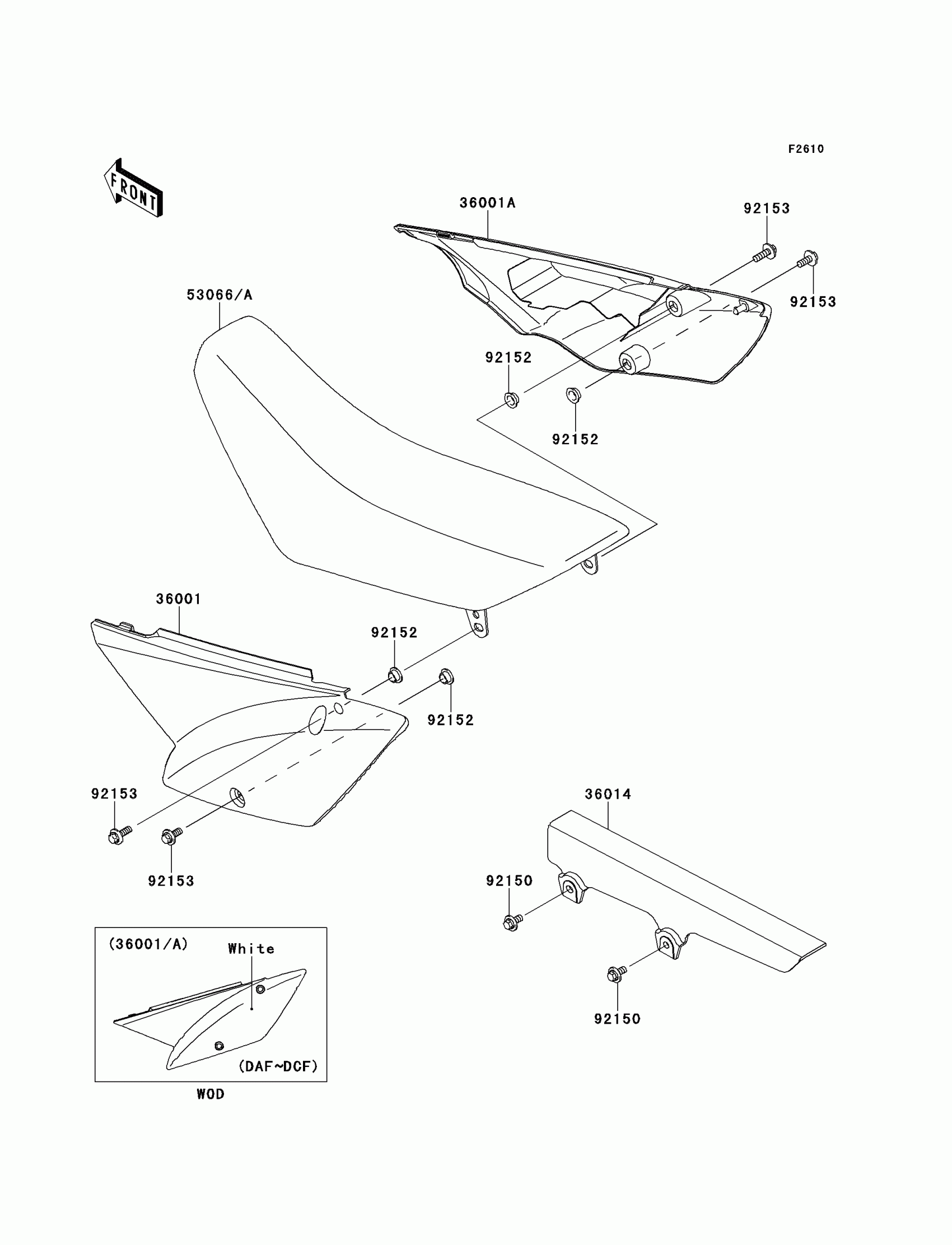

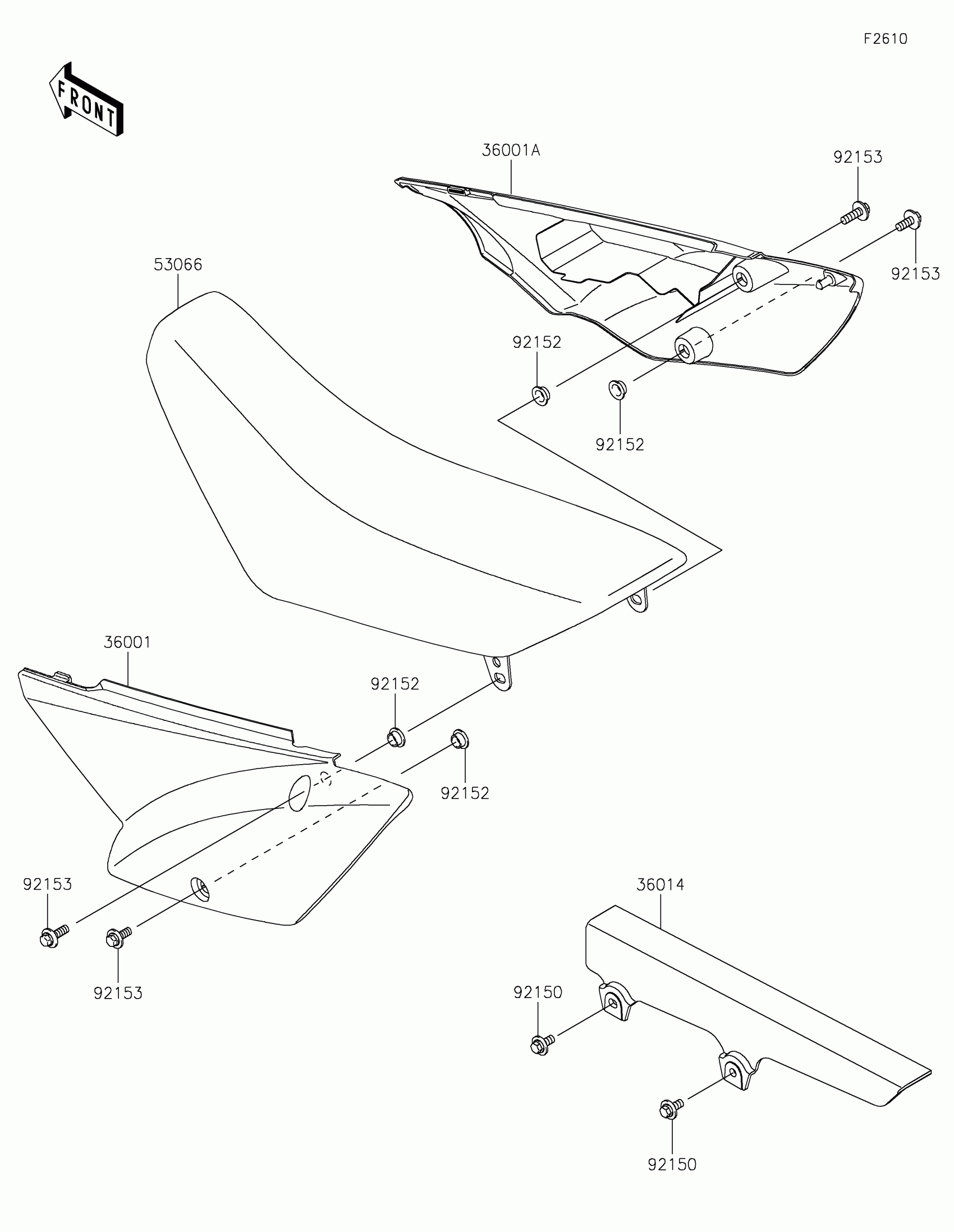

2014 Kawasaki KLX®110L Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,B.WHITE

36001-0194-266

1
Out of stock

36001A

COVER-SIDE,RH,B.WHITE

36001-0195-266

1
Out of stock

36014

CASE-CHAIN

36014-1258

1
Out of stock

53066A

SEAT-ASSY,BLACK/GREEN

53066-0431-13R

1
Out of stock

92150

BOLT,FLANGED,6X14

92150-1689

1
Out of stock

92152

COLLAR

92152-0789

1
Out of stock

92153

BOLT,6X20

92153-0502

1
Out of stock
