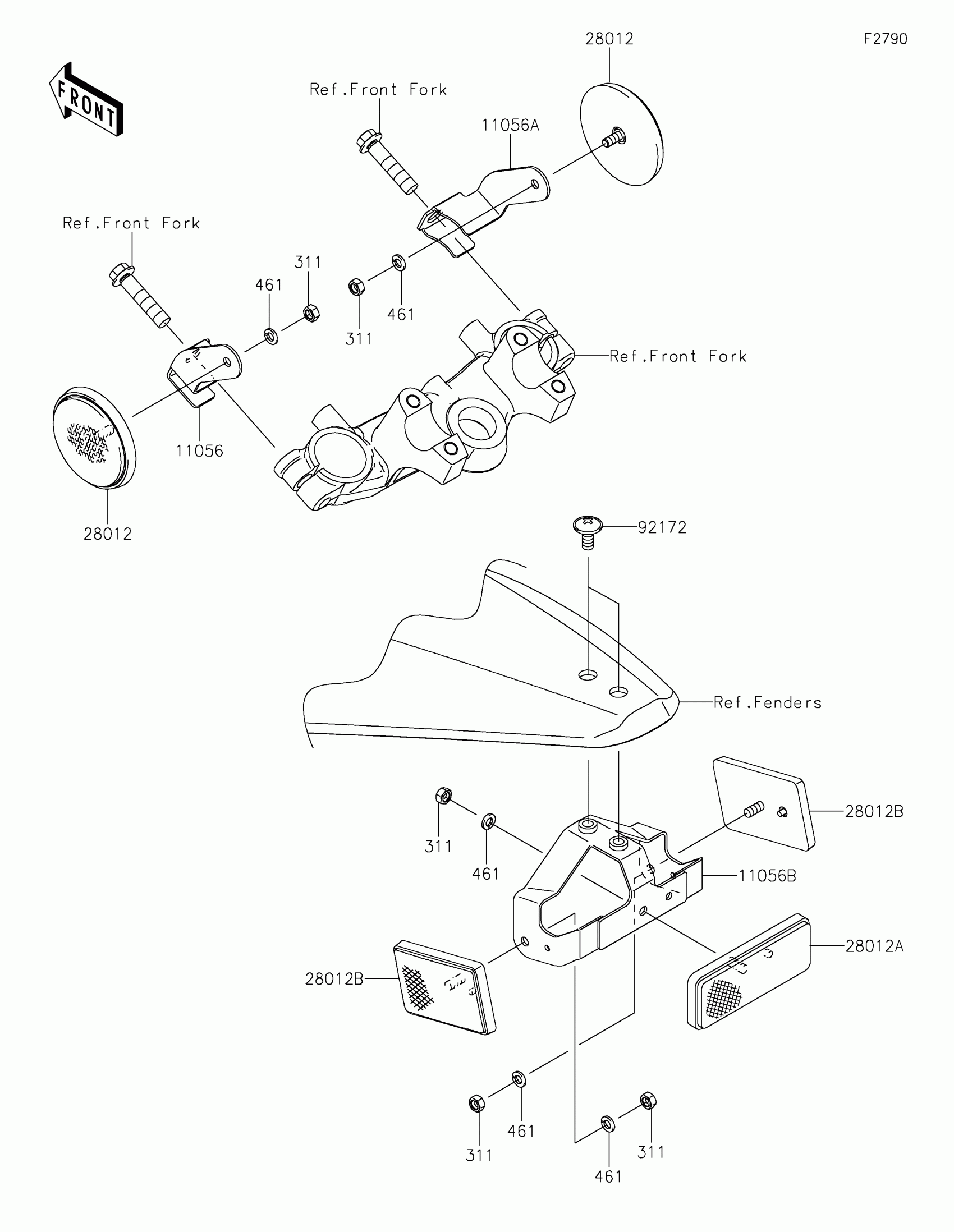

Find the part on the Reflectors diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX,5MM

311BA0500

1

$3.85

In stock

461

WASHER-SPRING,5MM

461DA0500

1

$0.76

In stock

11052

1

$14.37

In stock

11052A

1

$19.31

In stock

11052B

1

$14.37

In stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

92027

COLLAR,L=3.5

92027-1018

1

$4.16

In stock

92172

SCREW,6X14

92172-0401

1

$2.10

In stock
