2009 Kawasaki KLX®110 Generator Diagram

← All diagrams

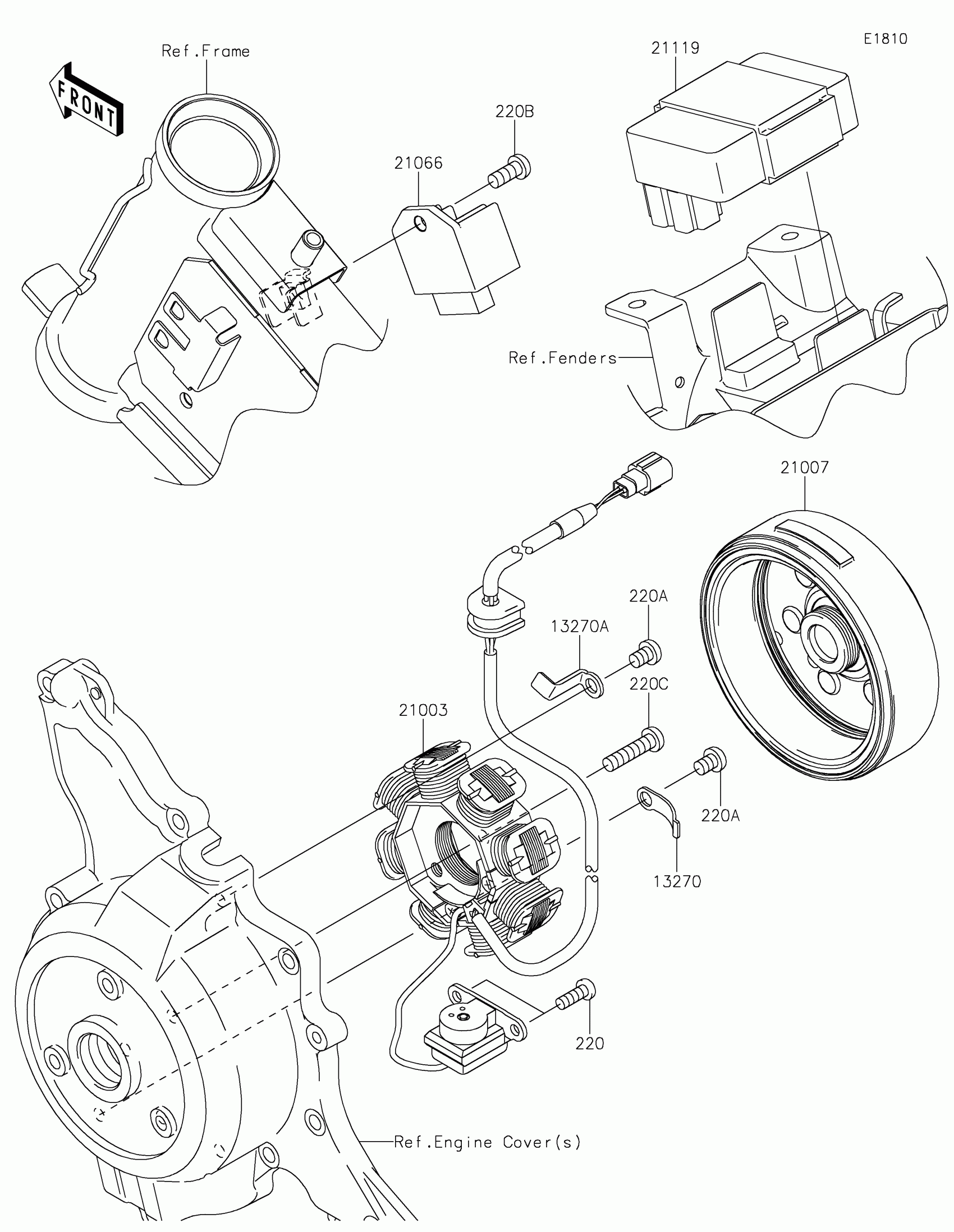

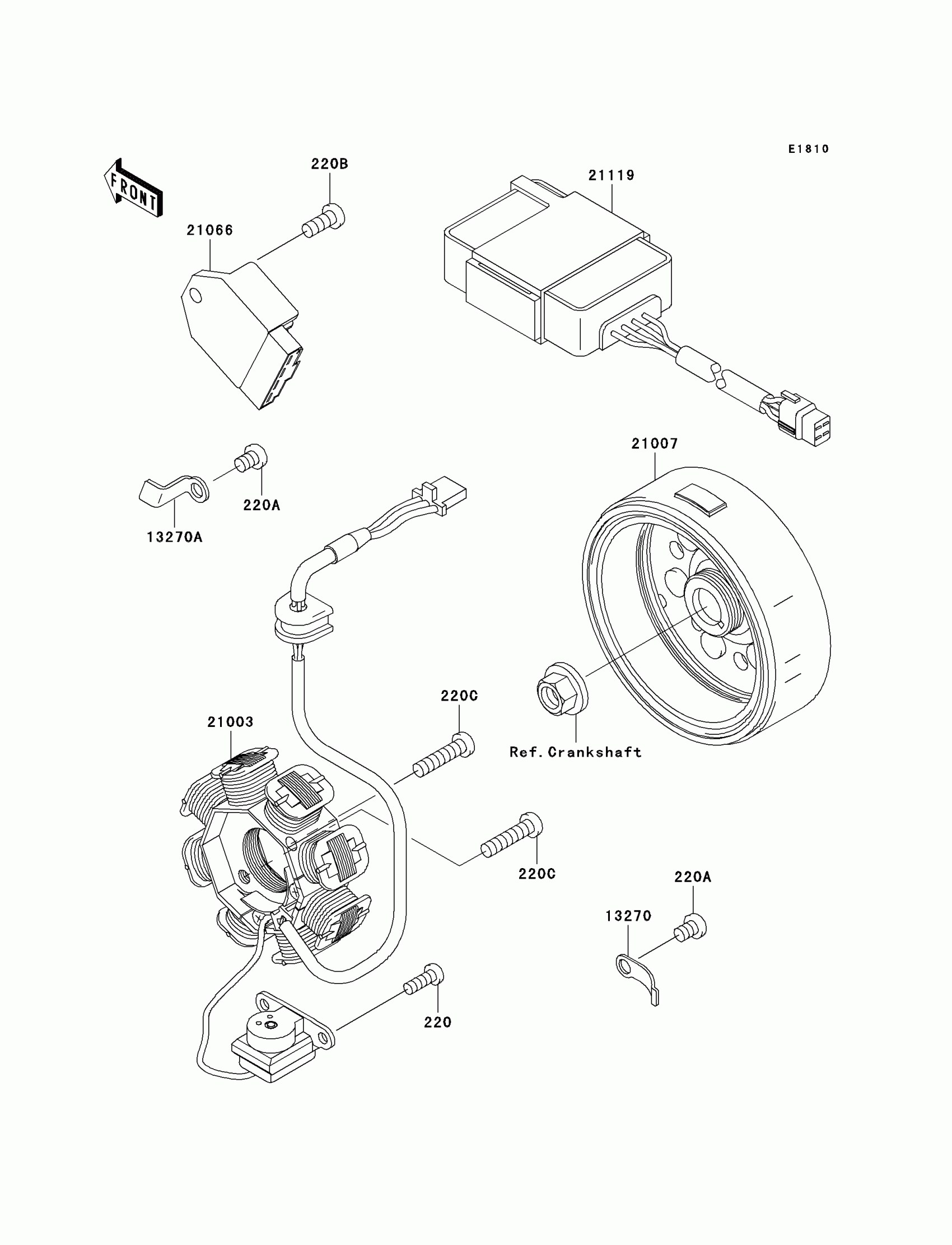

Find the part on the Generator diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

1

$3.52

In stock

220A

SCREW-PAN-CROS,6X8

220AA0608

1

$0.63

In stock

220B

1

$1.32

In stock

220C

1

$2.27

In stock

13270

PLATE

13270-1754

1
Out of stock

13270A

PLATE

13270-1961

1
Out of stock

21003

STATOR

21003-1390

1

$134.77

In stock

21007

ROTOR

21007-0098

1

$139.68

In stock

21066

REGULATOR-VOLTAGE

21066-1086

1

$107.20

In stock

21119

IGNITER

21119-1612

1

$347.57

In stock
