2009 Kawasaki KLX®110 Chassis Electrical Equipment Diagram

← All diagrams

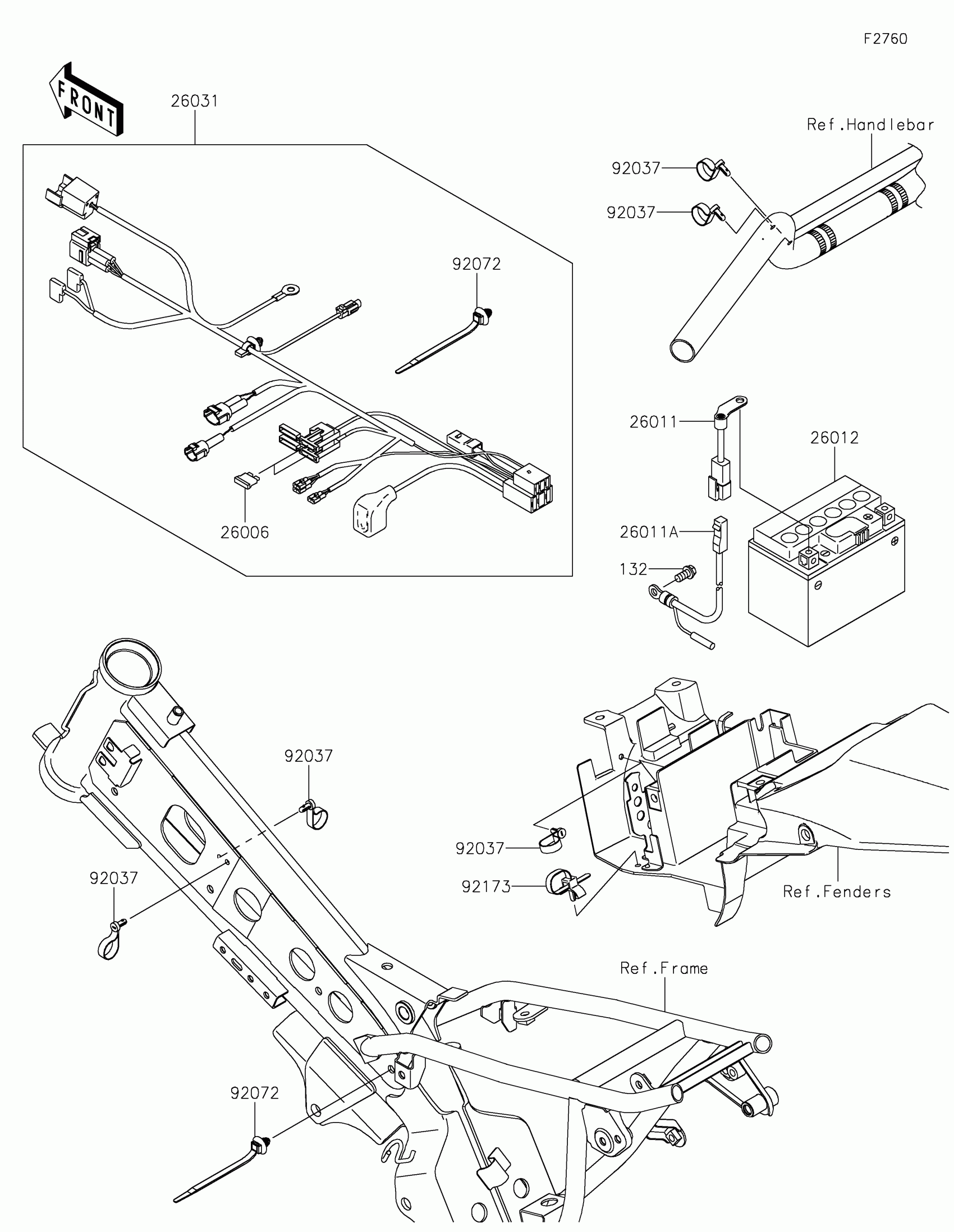

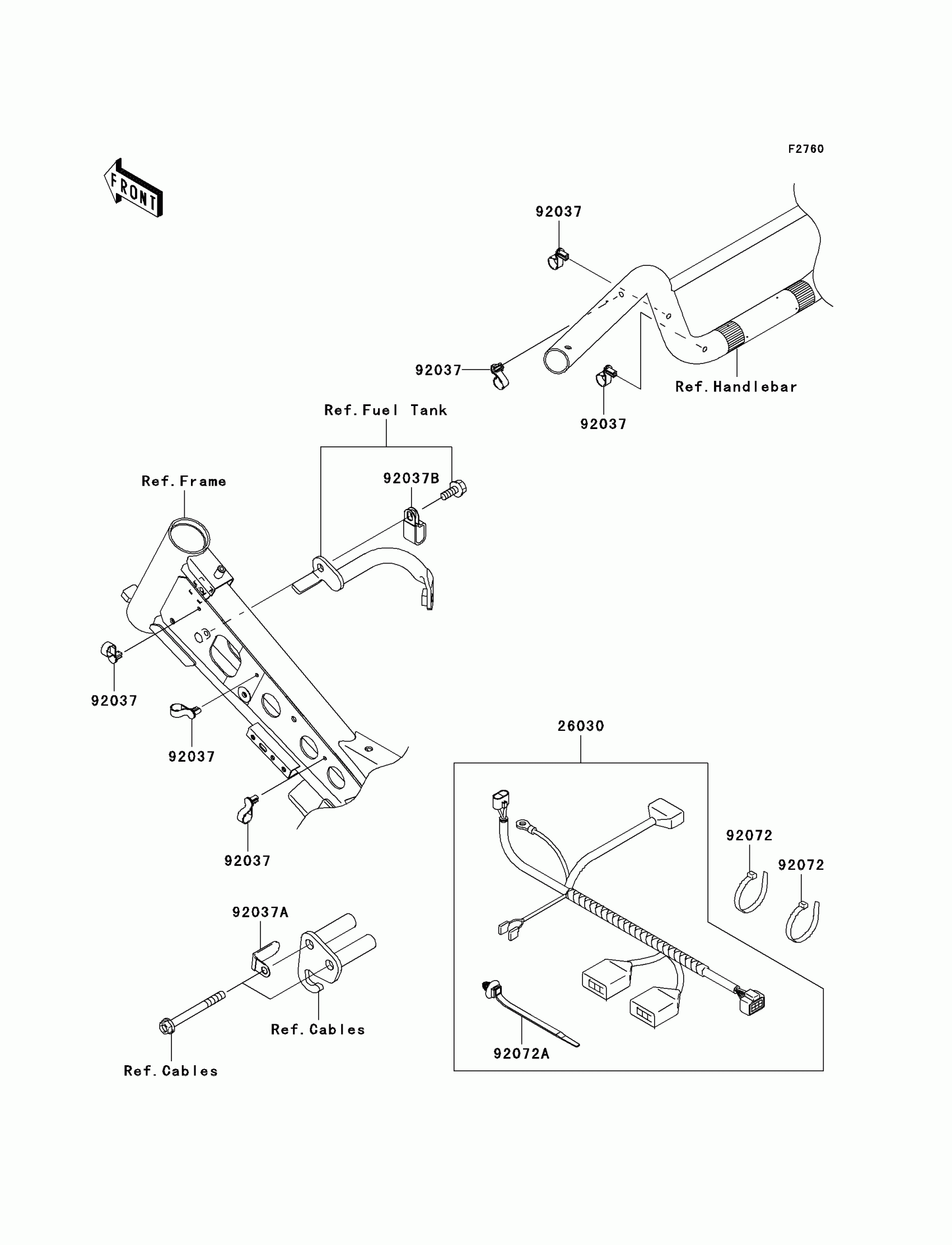

Find the part on the Chassis Electrical Equipment diagram for your 2009 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Kawasaki KLX®110 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

26030

HARNESS,MAIN

26030-1931

1

$152.91

In stock

92037

CLAMP,SPEED,L=58

92037-1163

1

$5.21

In stock

92037A

CLAMP,L=45

92037-1539

1

$4.42

In stock

92037B

CLAMP

92037-1608

1

$6.44

In stock

92072

BAND,L=140

92072-1293

1

$5.61

In stock

92072A

1

$2.97

In stock
