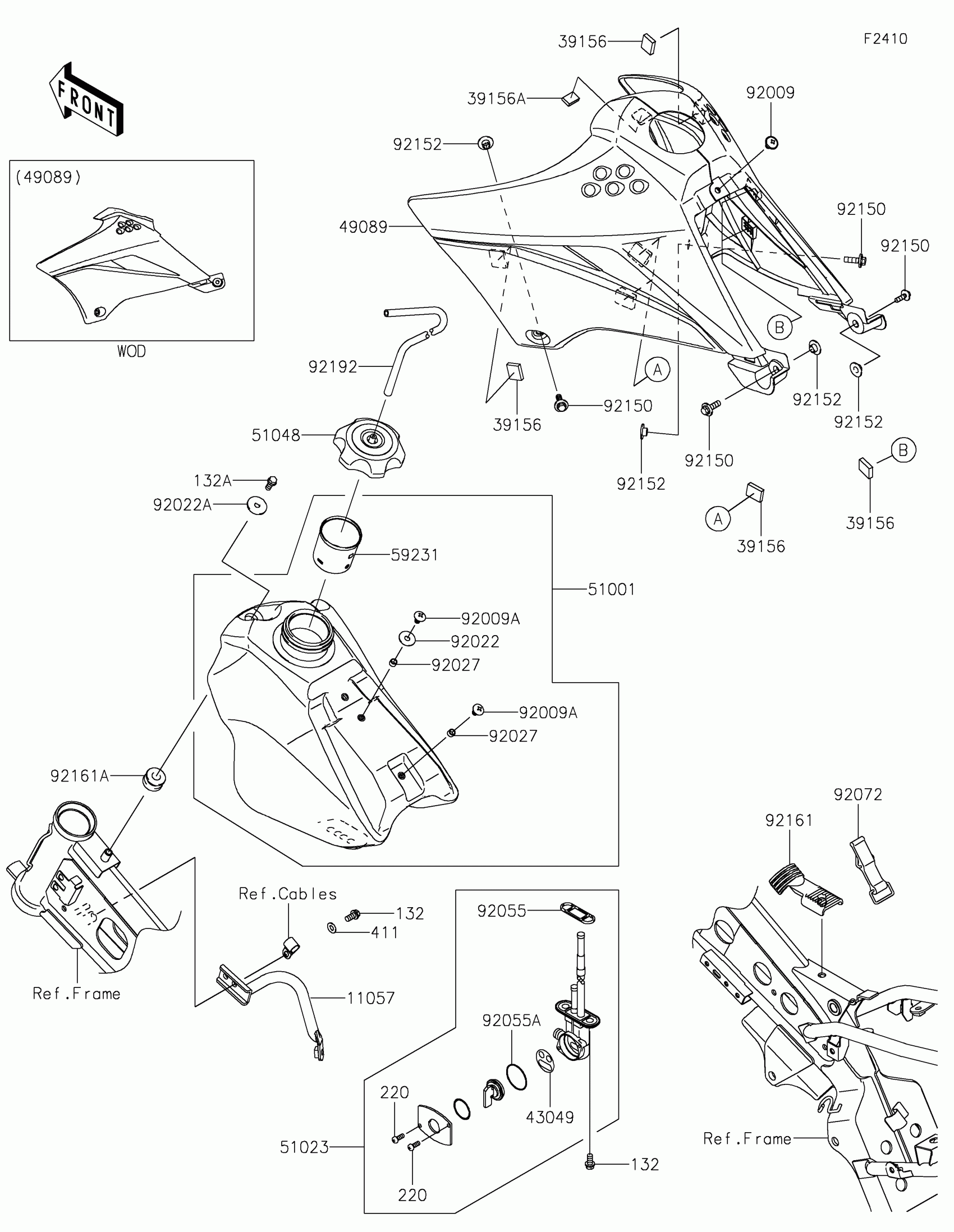

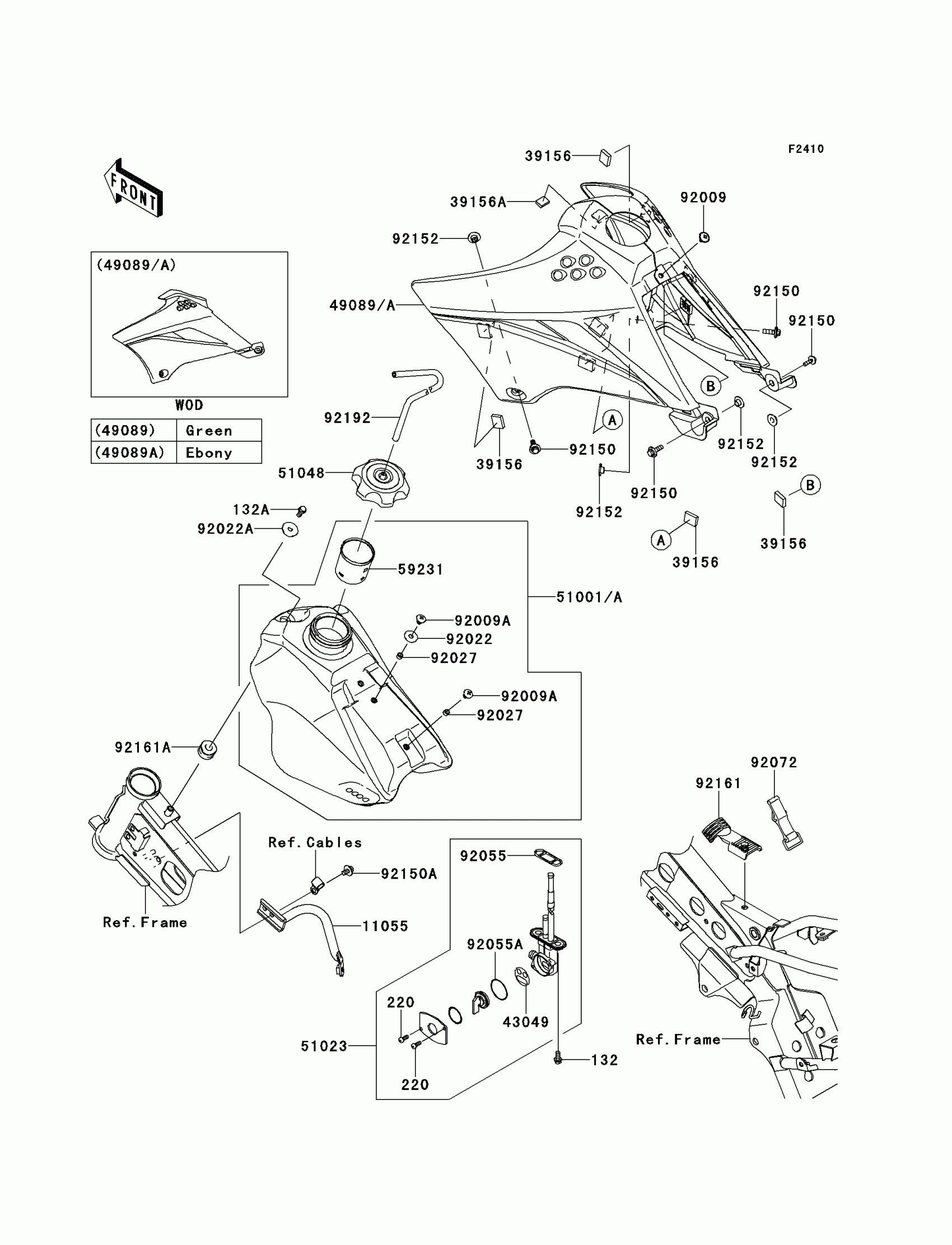

Kawasaki KLX®110 Fuel Tank Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

220

SCREW-PAN-CROS,3X8

220AA0308

$0.54

11055

BRACKET,SHROUD,RH

11055-1636

$16.17

39156

PAD,16X20X5

39156-0580

$2.56

39156A

PAD,12X17X4

39156-0581

$2.56

43049

PACKING,TAP VALVE

43049-1091

$5.54

49089

SHROUD-ENGINE,L.GREEN

49089-0081-290

$93.62

51001A

TANK-COMP-FUEL

51001-0771

$324.58

51023

TAP-ASSY

51023-0036

Unavailable

51048

CAP-ASSY-TANK,FUEL

51048-0009

$53.60

59231

FILLER

59231-0051

$5.97

92009

SCREW,6X10,WHITE

92009-1286

$3.29

92009A

SCREW,6X10

92009-1530

$2.99

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022A

WASHER,6.5X24X2

92022-1690

$2.99

92027

COLLAR,6.2X7.8X5

92027-2096

$0.48

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,TAP LEVER

92055-1419

$3.81

92072

BAND,FUEL TANK

92072-1229

$9.68

92150

BOLT,6X20

92150-1339

$3.35

92150A

BOLT,6X12

92150-1435

$3.29

92152

COLLAR

92152-0427

$5.91

92161

DAMPER,FUEL TANK

92161-0779

$13.42

92161A

DAMPER

92161-1523

$3.27

92192

TUBE,5X8X380

92192-0884

$7.59
