2014 Kawasaki KLX®110 Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 2014 Kawasaki KLX®110, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

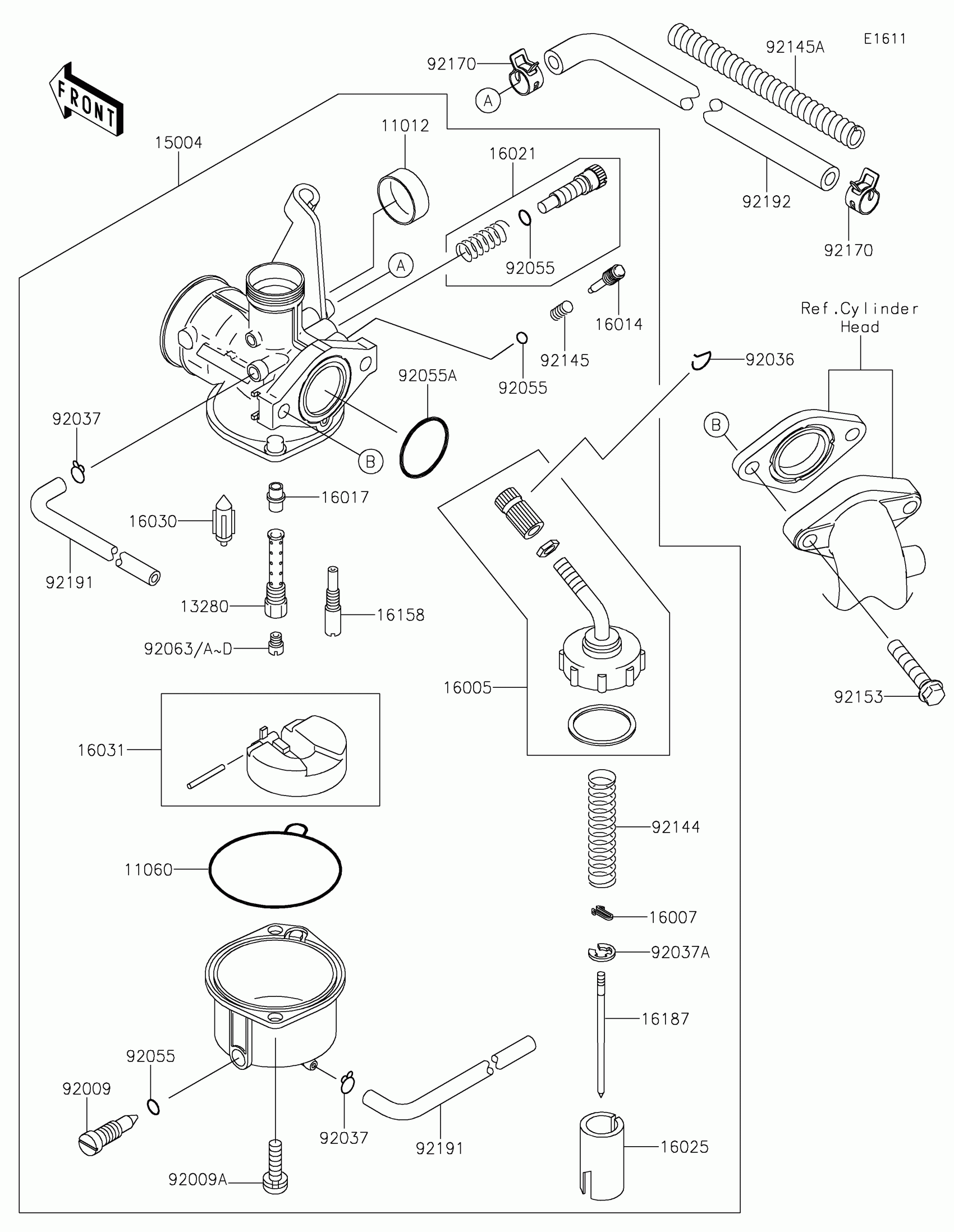

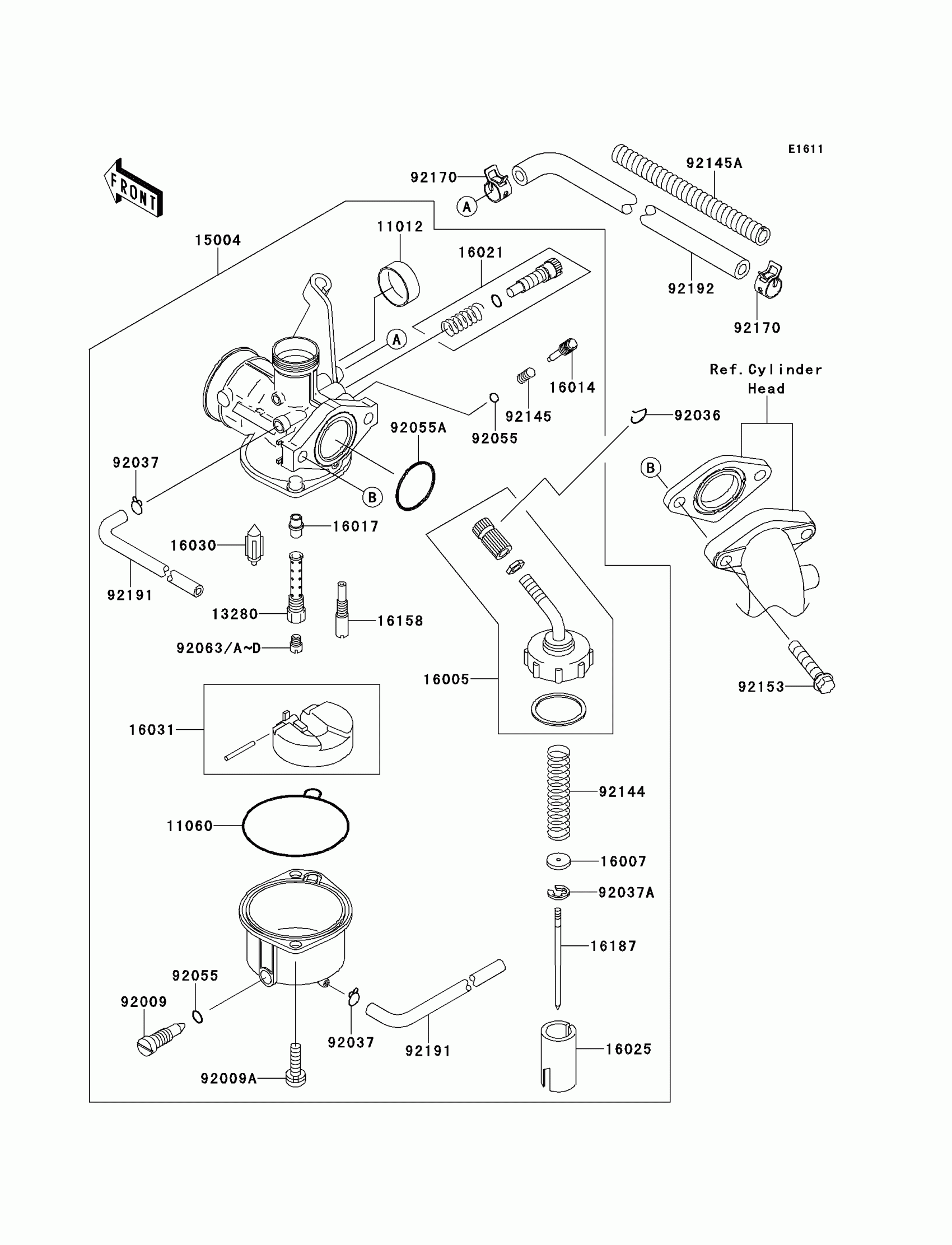

2014 Kawasaki KLX®110 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CHOKE

11012-1940

1
Out of stock

11060

1

$16.00

In stock

13280

HOLDER,NEEDLE JET

13280-0359

1

$29.08

In stock

15004

1

$178.14

In stock

16005

TOP-CHAMBER

16005-1091

1

$22.03

In stock

16007

SEAT-SPRING

16007-1103

1

$5.78

In stock

16014

SCREW-PILOT AIR

16014-0011

1

$14.98

In stock

16017

JET-NEEDLE

16017-1434

1

$48.05

In stock

16021

SCREW-THROTTLE STOP

16021-1241

1

$16.39

In stock

16025

1

$100.82

In stock

16030

VALVE-FLOAT,FLOAT

16030-0002

1
Out of stock

16031

FLOAT

16031-1088

1

$53.57

In stock

16158

JET-SLOW,#40

16158-0005

1

$13.45

In stock

16187

NEEDLE-JET,NCFA

16187-1228

1

$36.62

In stock

92009

SCREW,DRAIN

92009-1057

1
Out of stock

92009A

SCREW

92009-1750

1
Out of stock

92036

RING-SNAP

92036-018

1

$3.10

In stock

92037

CLAMP,TUBE

92037-1142

1

$3.43

In stock

92037A

CLAMP,JET NEEDLE

92037-1401

1

$3.43

In stock

92055

RING-O

92055-1053

1

$3.38

In stock

92055A

RING-O

92055-1541

1

$2.27

In stock

92063

JET-MAIN,#78

92063-1393

1

$10.54

In stock

92063A

JET-MAIN,#72

92063-1394

—

$11.05

In stock

92063B

JET-MAIN,#75

92063-1395

—

$12.00

In stock

92063C

JET-MAIN,#80

92063-1396

—

$12.00

In stock

92063D

JET-MAIN,#82

92063-1397

—

$12.00

In stock

92144

SPRING,THROTTLE

92144-1875

1

$15.36

In stock

92145

SPRING

92145-0004

1

$5.27

In stock

92145A

1

$4.84

In stock

92153

BOLT,FLANGED-SMALL,6X28

92153-1309

1
Out of stock

92170

CLAMP

92170-1872

1

$3.18

In stock

92191

TUBE,3.5X6.5X418

92191-1735

1
Out of stock

92192

TUBE,5.8X10.8X277

92192-0583

1
Out of stock
