1982 Kawasaki KLT250 Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 1982 Kawasaki KLT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

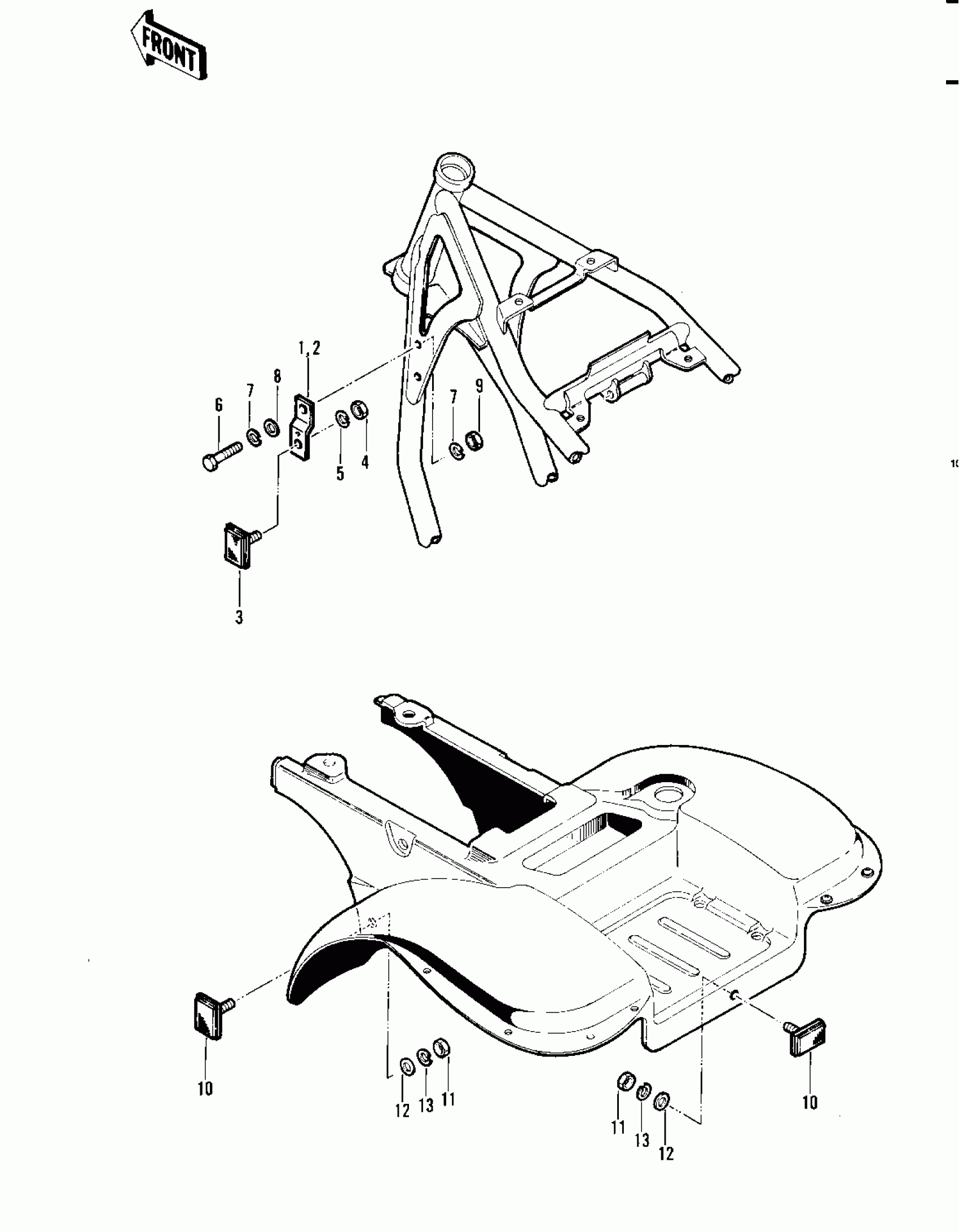

1982 Kawasaki KLT250 Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,REFLECTOR (Canada)

11034-4134

1
Out of stock

2

BRACKET,REFLECTOR (Canada)

11034-4135

1
Out of stock

3

REFLECTOR-REFLEX

28012-1003

1
Out of stock

4

NUT-HEX

311B0500

1
Out of stock

5

WASHER SPRING 5MM

461F0500

1
Out of stock

6

BOLT-UPSET,6X20

112G0620

1
Out of stock

7

WASHER SPRING 6MM

461F0600

1
Out of stock

8

WASHER PLAIN 6MM

411B0600

1
Out of stock

9

NUT 6MM

311B0600

1
Out of stock

10

REFLECTOR-REFLEX,RR

28012-1054

1
Out of stock

11

NUT-HEX

311B0500

1
Out of stock

12

WASHER-PLAIN,5MM

411B0500

1
Out of stock

13

WASHER SPRING 5MM

461F0500

1
Out of stock
