1982 Kawasaki KLT250 Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 1982 Kawasaki KLT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

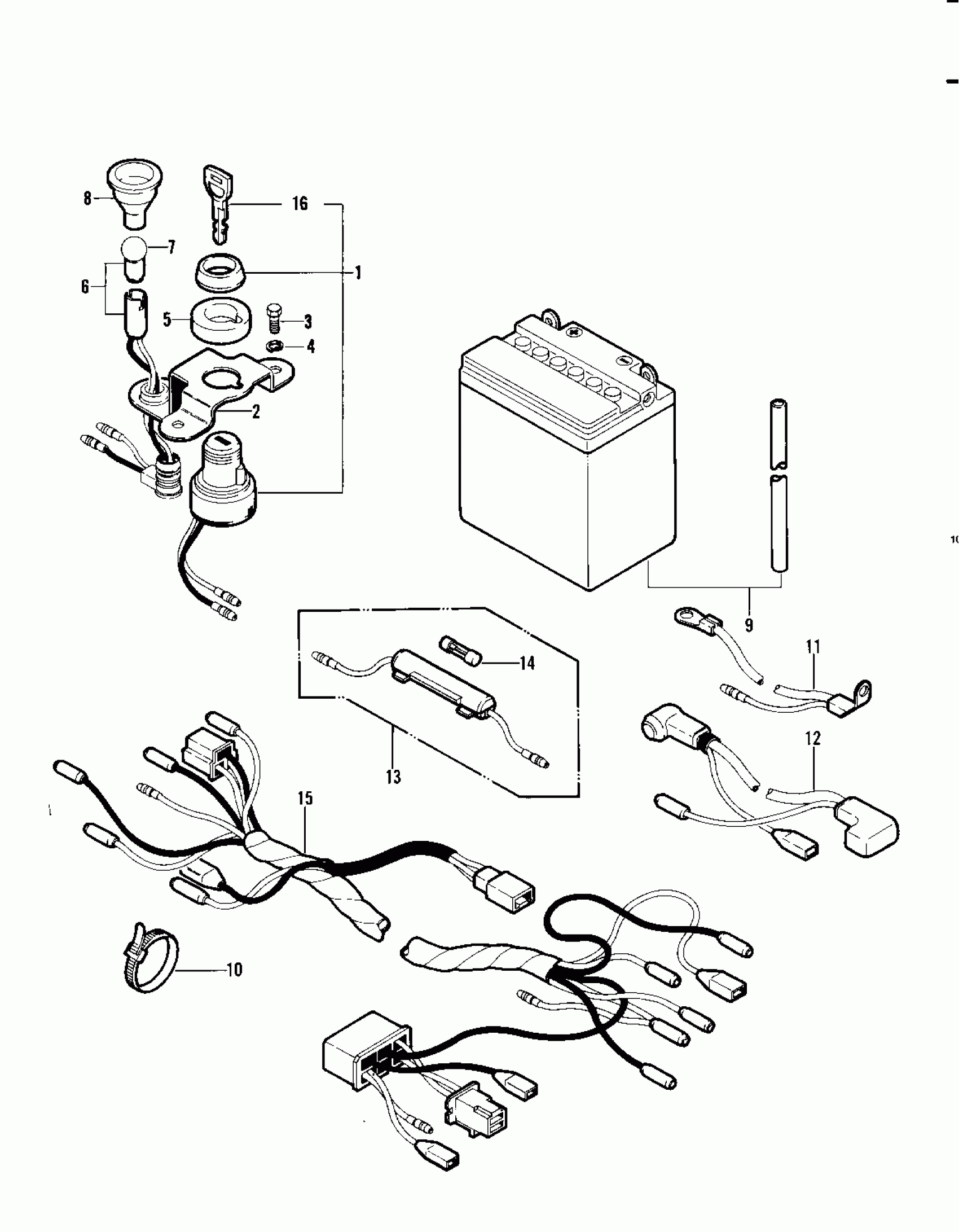

1982 Kawasaki KLT250 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH-ASSY-IGNITION

27005-1117

1
Out of stock

2

1

$9.31

In stock

3

BOLT-UPSET 6X14

112B0614

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

DAMPER IGNITION SWITH

92075-4016

1
Out of stock

6

LIGHT ASSY

23016-4002

1
Out of stock

7

BULB 12V 3W

92069-018

1

$3.87

In stock

8

TUBE,IGNITION SWITCH LAMP

92059-1559

1
Out of stock

9

FB BAT FB12A-A

26012-1004

1

$96.88

In stock

10

BAND

92072-3505

1
Out of stock

11

WIRE-LEAD,BATTERY GROUND

26010-052

1
Out of stock

12

WIRE-LEAD,BATTERY

26011-4004

1

$22.37

In stock

13

FUSE ASSY

26004-013

1
Out of stock

14

FUSE,20A,L=25

26006-005

1

$4.02

In stock

15

HARNESS,MAIN

26001-4015

1

$141.65

In stock

16

KEY-LOCK,BLANK

27008-1103

1

$18.83

In stock
