1982 Kawasaki KLT250 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1982 Kawasaki KLT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

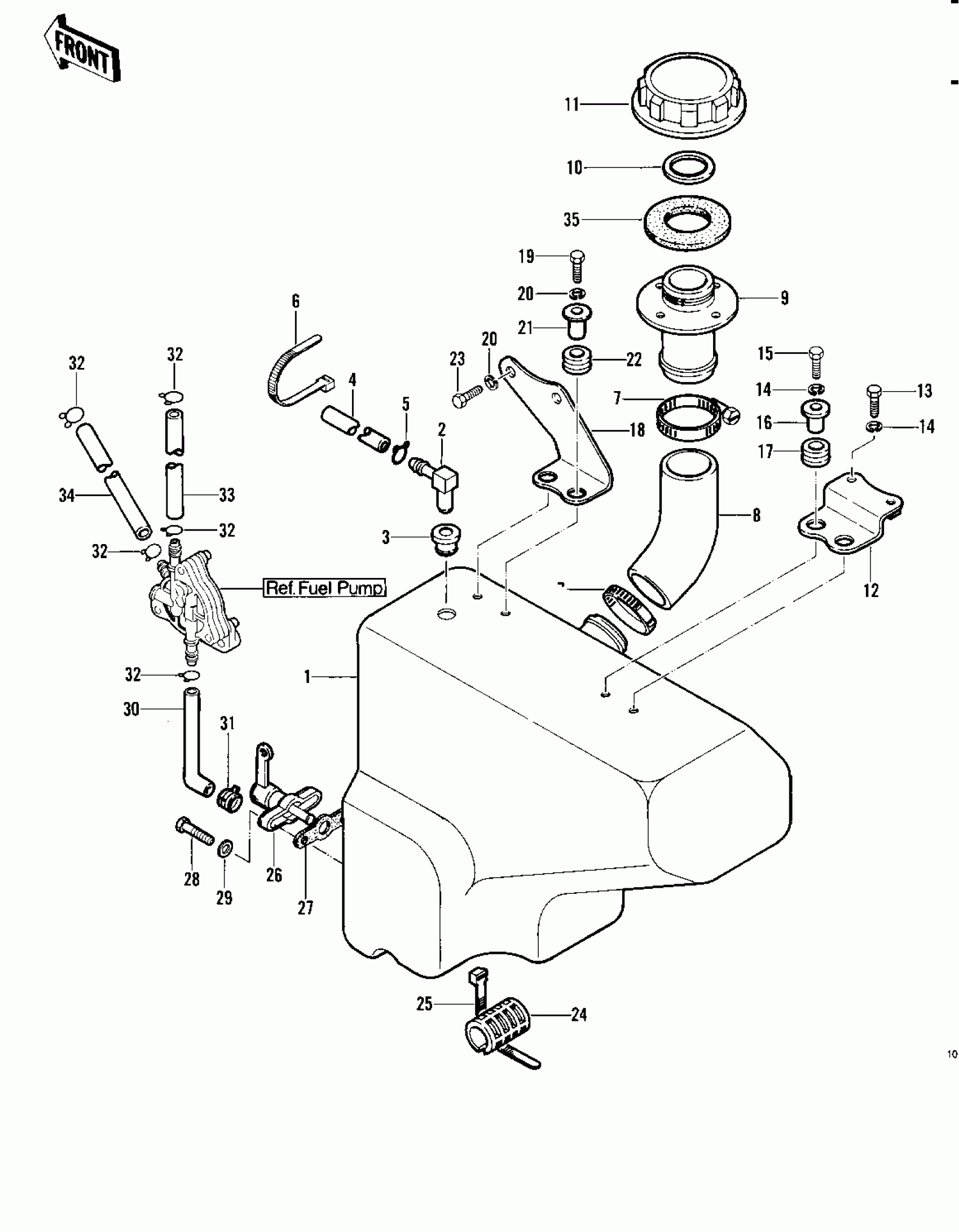

1982 Kawasaki KLT250 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK-FUEL,GRAY

51001-4005-8L

1
Out of stock

1

TANK-FUEL,GRAY

51001-4005-8L

1
Out of stock

2

BREATHER

14069-003

1
Out of stock

3

DAMPER,FUEL TANK

92075-4029

1
Out of stock

4

TUBE-BREATHER

92059-4027

1
Out of stock

5

CLAMP,TUBE

92037-072

1
Out of stock

6

BAND

92072-4004

1
Out of stock

7

CLAMP

92037-3009

1
Out of stock

8

TUBE,TANK

92059-4013

1
Out of stock

9

FILLER,FUEL TANK

59231-3001

1
Out of stock

10

GASKET,TANK CAP

11009-3020

1
Out of stock

11

CAP-TANK

51049-3001

1
Out of stock

12

BRACKET-TANK

32052-4007

1
Out of stock

13

BOLT-UPSET 6X14

112B0614

1
Out of stock

14

WASHER SPRING 6MM

461F0600

1
Out of stock

15

BOLT-UPSET,6X20

112G0620

1
Out of stock

16

COLLAR

92027-1045

1
Out of stock

17

DAMPER

92075-277

1
Out of stock

18

BRACKET-TANK

32052-4006

1
Out of stock

19

BOLT-UPSET,6X20

112G0620

1
Out of stock

20

WASHER SPRING 6MM

461F0600

1
Out of stock

21

COLLAR

92027-1045

1
Out of stock

22

DAMPER

92075-277

1
Out of stock

23

BOLT-UPSET 6X14

112B0614

1
Out of stock

24

DAMPER,FUEL TANK

92075-084

1
Out of stock

25

BAND

92072-3505

1
Out of stock

26

TAP-ASSY,FUEL

51023-1115

1
Out of stock

27

GASKET,FUEL TAP

11009-1135

1
Out of stock

28

BOLT-HEX HEAD,6X16

92001-114

1
Out of stock

29

WASHER-PLAIN

92022-183

1
Out of stock

30

TUBE,6.5X11.5X120

92059-4015

1
Out of stock

31

CLAMP

92037-4009

1
Out of stock

32

CLAMP,CARB CONECT HOS

92037-056

1
Out of stock

33

TUBE,6.5X11.5X290

92059-4028

1
Out of stock

34

TUBE,6.5X11.5X350

92059-4004

1
Out of stock

35

WASHER-RUBBER

92022-4024

1
Out of stock
