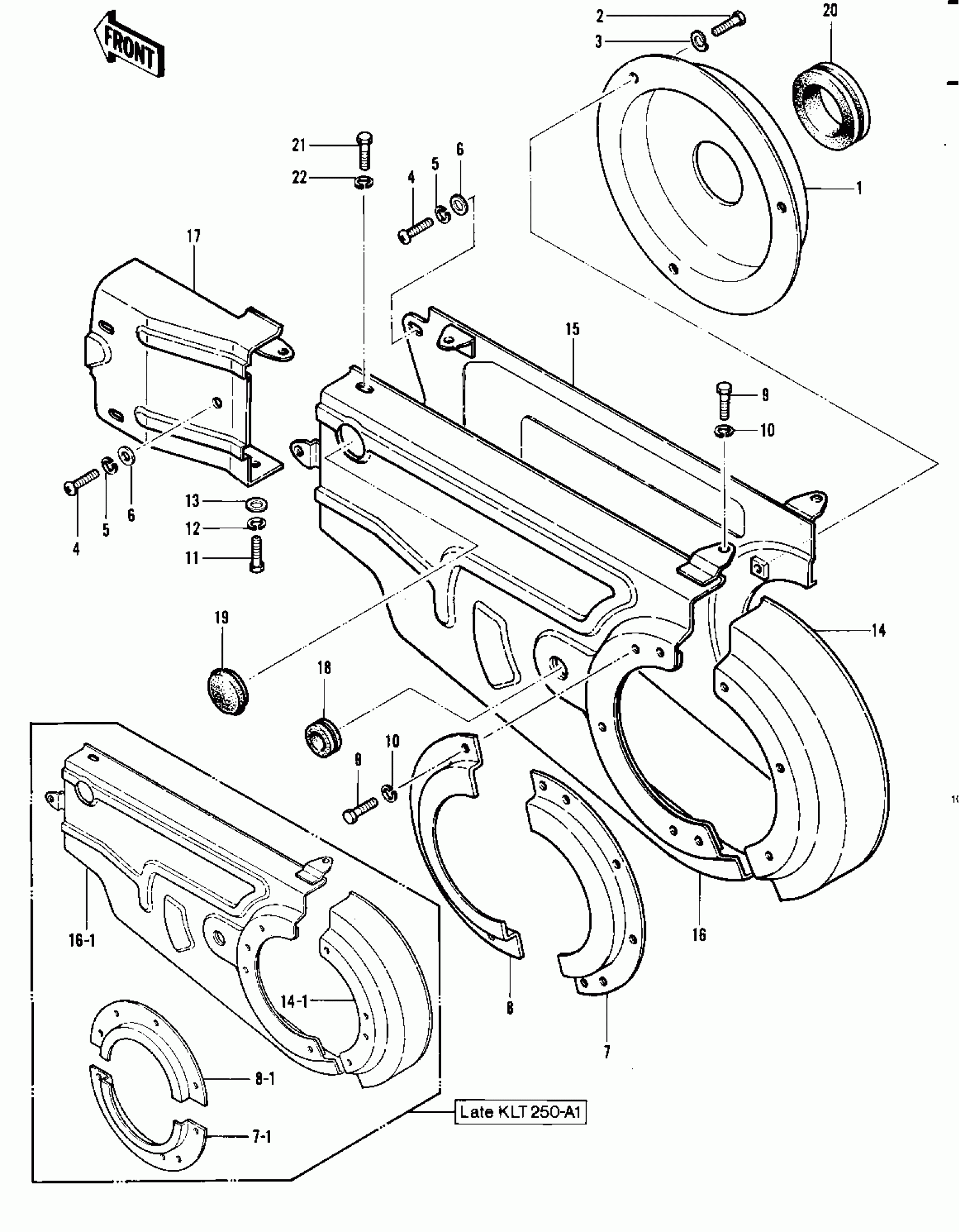

Kawasaki KLT250 CHAIN CASE ('82 A1) Diagram

#

Description
Price

1

COVER,CHAIN CASE

14025-4018

Unavailable

2

BOLT-UPSET,6X12

112G0612

Unavailable

3

WASHER SPRING 6MM

461F0600

Unavailable

4

SCREW PAN HEAD 6X12

220B0612

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

7

BRKT,CHAIN CASE,RR

11034-4055

Unavailable

7-1

BRACKET,SMALL

11036-1455

Unavailable

8

BRKT,CHAIN CASE,FR

11034-4065

Unavailable

8-1

BRACKET,LARGE

11036-1454

Unavailable

9

BOLT-UPSET,6X12

112G0612

Unavailable

10

WASHER SPRING 6MM

461F0600

Unavailable

11

BOLT-UPSET,6X12

112G0612

Unavailable

12

WASHER SPRING 6MM

461F0600

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

14

CASE-CHAIN,RR

36014-1059

$51.42

14-1

CASE-CHAIN,RR

36014-1059

$51.42

15

CASE-CHAIN,INNER

36014-1041

$59.69

16

CASE-CHAIN,SET

36014-5002

$154.74

16-1

CASE-CHAIN,FR

36014-1060

$110.19

17

CASE-CHAIN,FR

36014-1049

$80.72

18

GROMMET HARNESS 22MM

92071-012

Unavailable

19

PLUG CHAIN CASE

92074-004

$4.58

20

SEAL

92093-4005

$3.10

21

BOLT-UPSET,6X16

112G0616

Unavailable

22

WASHER SPRING 6MM

461F0600

Unavailable
