1982 Kawasaki KLT250 AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1982 Kawasaki KLT250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

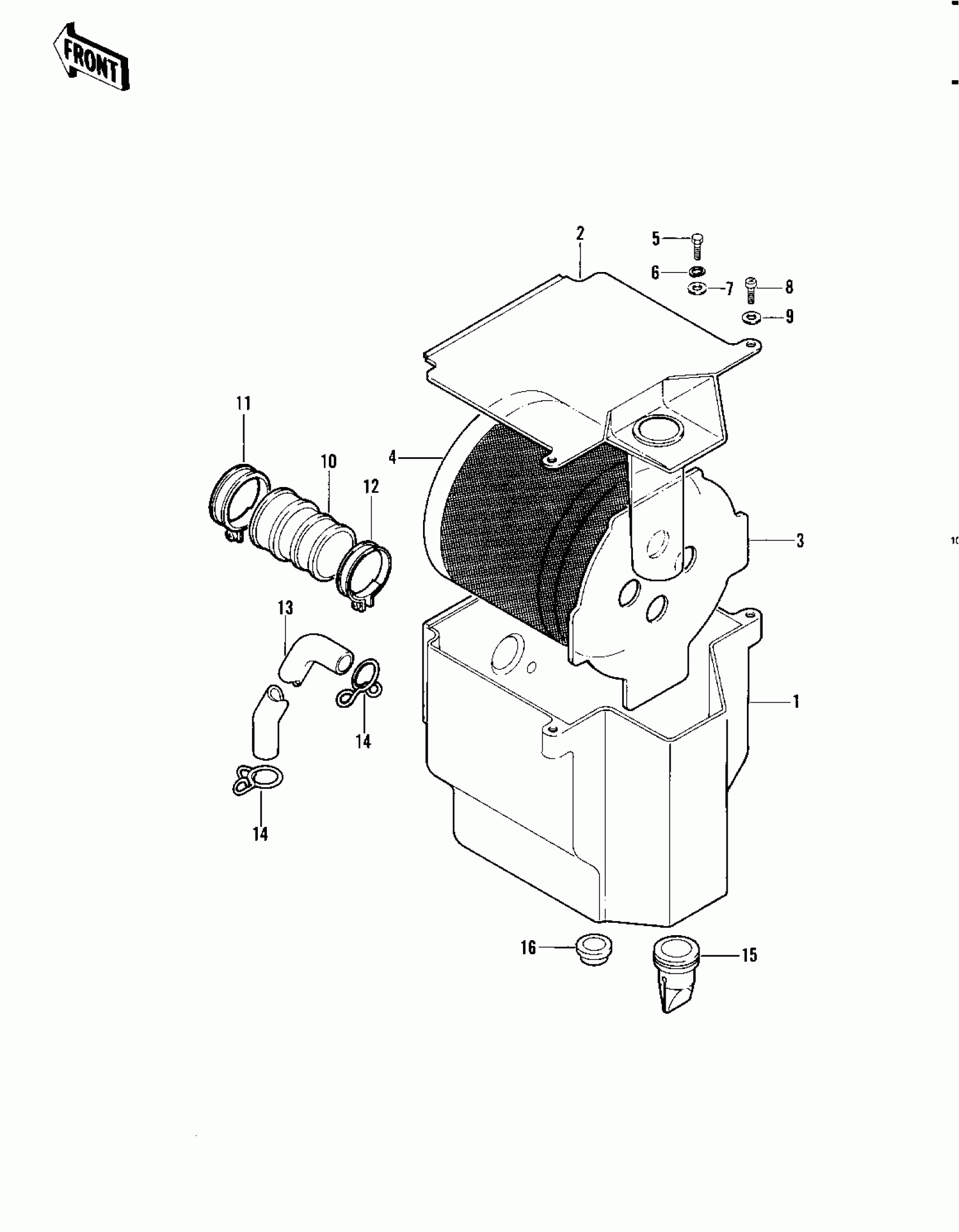

1982 Kawasaki KLT250 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE-AIR FILTER

11011-1086

1
Out of stock

2

COVER,AIR FILTER

14025-1385

1
Out of stock

3

HOLDER,ELEMENT

13091-1125

1
Out of stock

4

ELEMENT,AIR CLNR

11013-1053

1
Out of stock

5

BOLT-UPSET,6X16

112G0616

1
Out of stock

6

WASHER SPRING 8MM

461F0800

1
Out of stock

7

WASHER PLAIN 8MM

411B0800

1
Out of stock

8

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

9

WASHER-PLAIN-SMALL,6MM

410B0600

1
Out of stock

10

DUCT,AIR INLET

14073-1067

1
Out of stock

11

CLAMP-INLET PIPE

92037-061

1
Out of stock

12

CLAMP

92037-177

1
Out of stock

13

TUBE,BREATHER

92059-1154

1
Out of stock

14

CLAMP,TUBE

92037-213

1
Out of stock

15

BOOT,AIR FILTER

49006-1065

1
Out of stock

16

DAMPER RUBBER,SIG LM

92075-158

1
Out of stock
