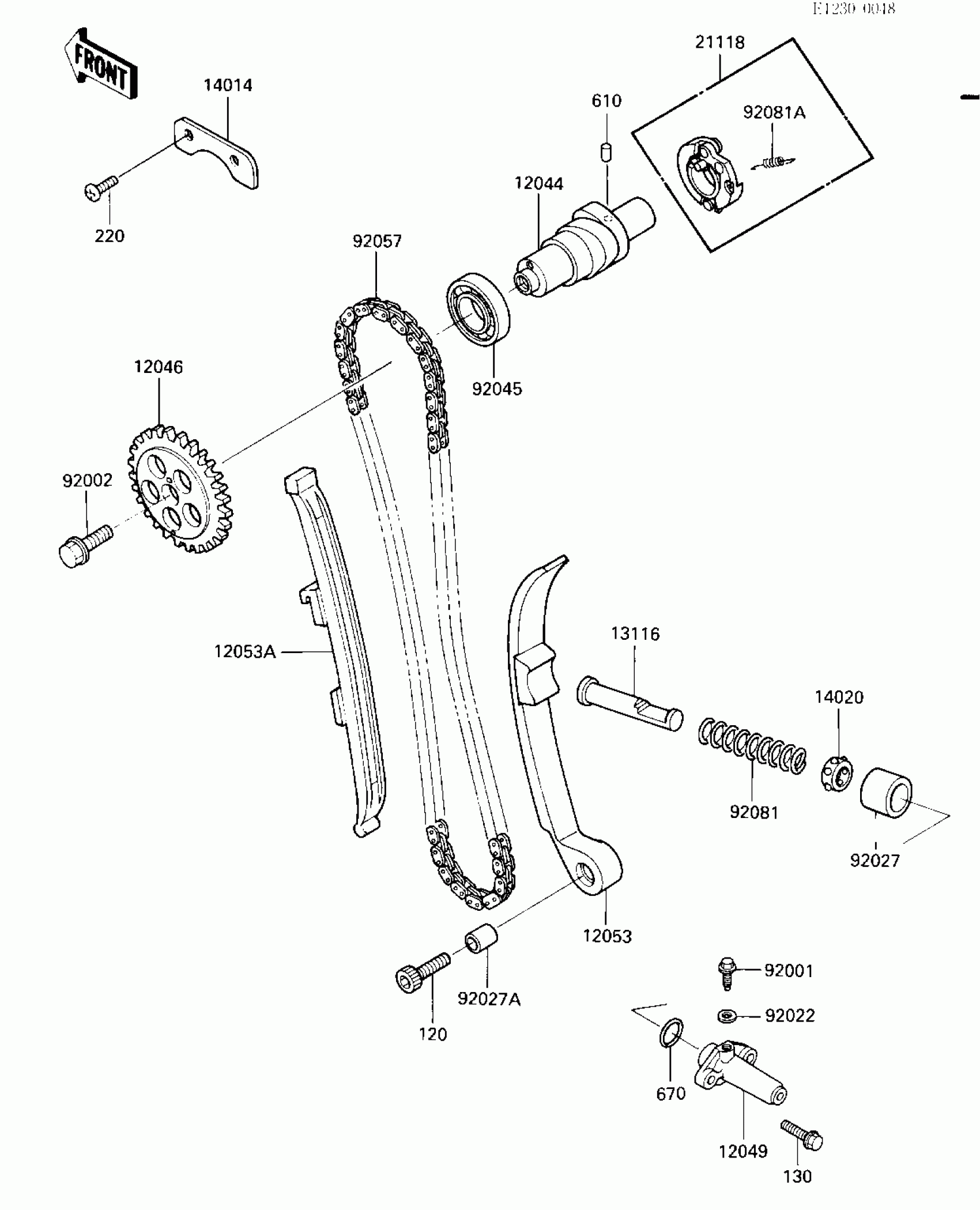

Kawasaki KLT185 CAMSHAFT/CHAIN/TENSIONER Diagram

Description

Price

12044

CAMSHAFT-VALVE

12044-1148

Unavailable

12046

SPROCKET,CAM CHAIN

12046-1059

$27.04

12049

TENSIONER,CAM CHAIN

12049-1055

$47.04

12053

GUIDE-CHAIN,RR

12053-1120

Unavailable

12053A

GUIDE-CHAIN,FR

12053-1121

Unavailable

13116

ROD,PUSH,CAM CHAIN

13116-1019

$15.24

14014

PLATE-POSITION

14014-1054

$4.68

14020

RETAINER,TENSIONER

14020-1054

$18.34

21118

DECOMPRESSOR

21118-1059

$111.48

92001

BOLT,TENSIONER ADJUST

92001-1155

$4.68

92002

BOLT,10X23

92001-1859

$7.54

92022

WASHER OIL PUMP BANJO

92022-077

$2.84

92027

COLLAR,TENSIONER

92027-1273

$33.19

92027A

COLLAR,6X8X10

92027-1721

$2.69

92045

BEARING-BALL,#6005C4

92045-1056

$19.69

92057

CHAIN,CAM,79RH2010-102L

92057-1165

Unavailable

92081

SPRING,TENSIONER

92081-1105

$4.07

92081A

SPRING,DECOMPRESSOR

92081-1674

$7.69

120

BOLT,SOCKET,6X22

120P0622

Unavailable

130

BOLT,FLANGED,6X25

130G0625

Unavailable

220

SCREW-PAN-CROS,6X14

220B0614

$1.14

610

ROLLER,4X8

610A0408

$3.29

670

O RING,21MM

670B2021

$3.57
