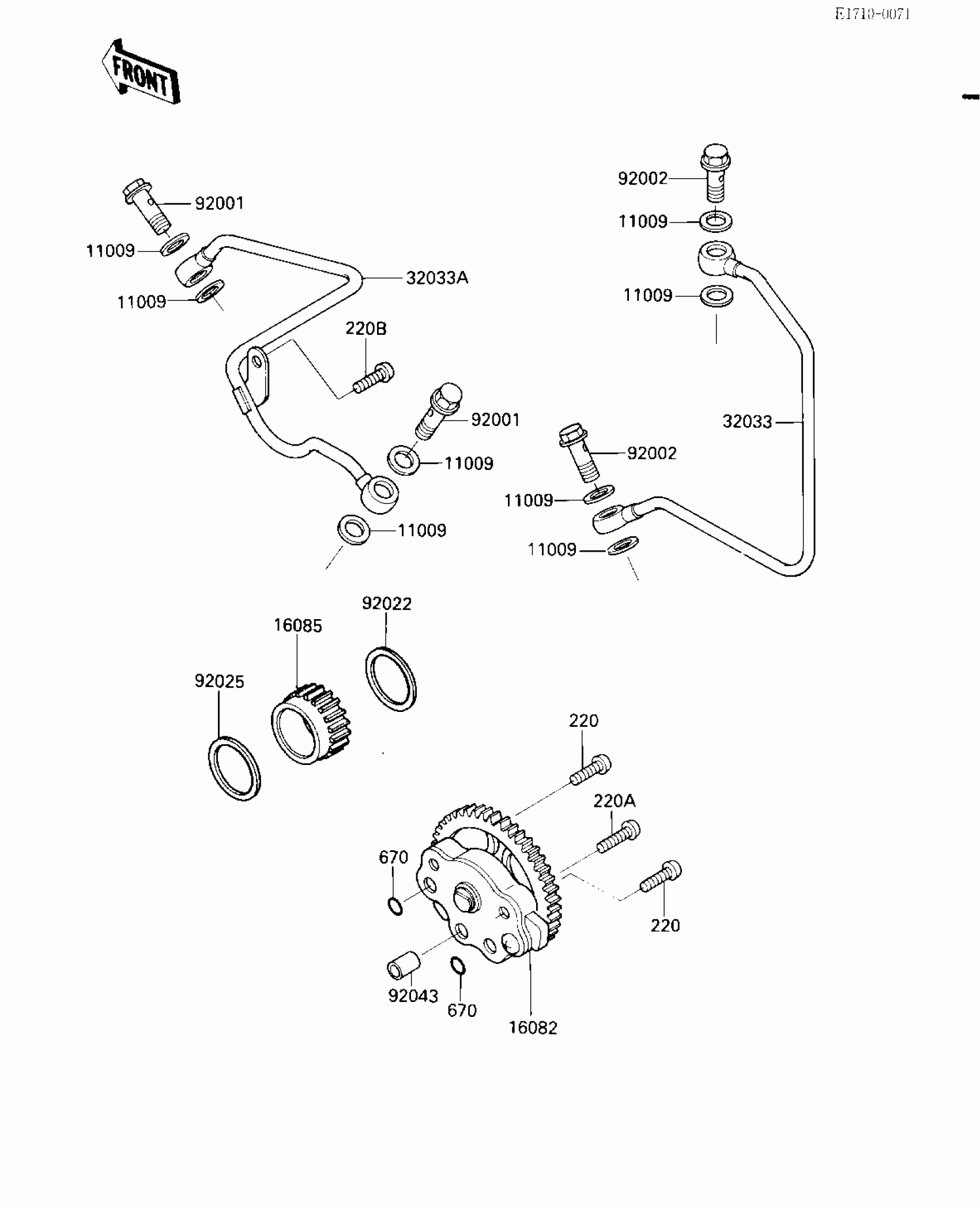

Kawasaki KLT185 OIL PUMP Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$2.11

16082

PUMP-ASSY-OIL

16082-1055

$169.99

16085

GEAR,OIL PUMP,22T

16085-1133

$30.47

32033

PIPE,CYLINDER HEAD

32033-1221

$69.36

32033A

PIPE,TRANSMISSION

32033-1222

$36.47

92001

BOLT,BANJO,8X22

92002-1871

$4.33

92002

BOLT,BANJO,8X20

92150-1557

$7.71

92022

WASHER,24.3X30X1.2

92022-1767

Unavailable

92025

SHIM,25.3X36X0.9

92025-1129

$4.97

92043

PIN,6.2X8X14

92043-1263

$0.46

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

220A

SCREW PAN HEAD 6X30

220B0630

Unavailable

220B

SCREW-PAN-CROS

220X0612

Unavailable

670

O RING,9.8X1.9

670B1510

$3.29
