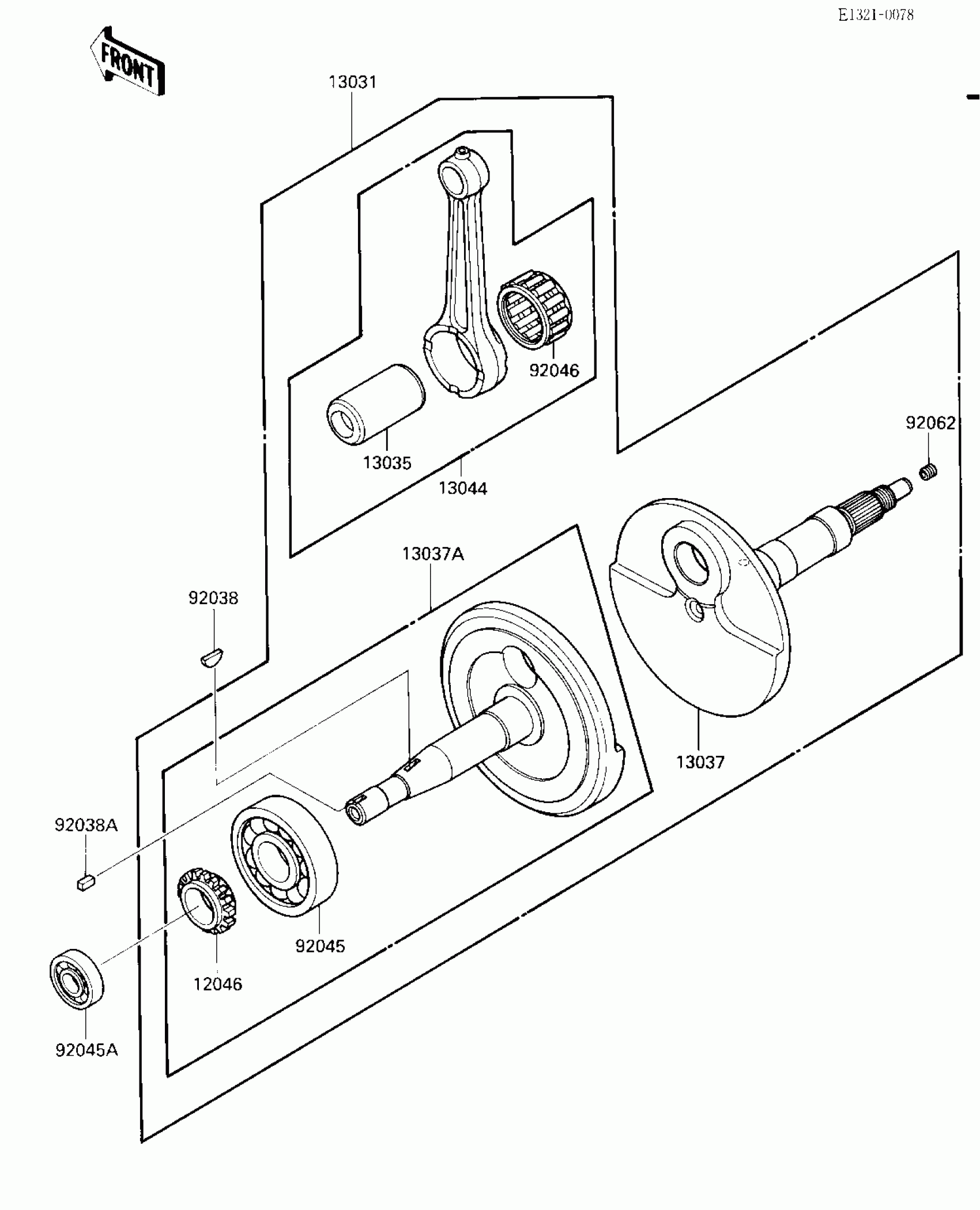

Kawasaki KLT185 CRANKSHAFT Diagram

Description

Price

12046

SPROCKET,CAM CHAIN,19T

12046-1058

Unavailable

13031

CRANKSHAFT-COMP

13031-1216

Unavailable

13035

PIN-CRANK

13035-1063

$70.85

13037

CRANKSHAFT,RH

13037-1259

Unavailable

13037A

CRANKSHAFT,LH

13037-5044

Unavailable

13044

SET-CONNECTING ROD

13044-5054

Unavailable

92038

KEY,WOODRUFF

92038-001

$3.78

92038A

KEY,SUNK

92038-1051

$4.33

92045

BEARING-BALL,6305JR2C3

92045-1120

$32.40

92045A

BEARING-BALL,#6903C3

92045-1131

$20.02

92046

BEARING-NEEDLE

92046-1126

$40.88

92062

NOZZLE

92062-1053

$5.75
