1985 Kawasaki KLT160 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 1985 Kawasaki KLT160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

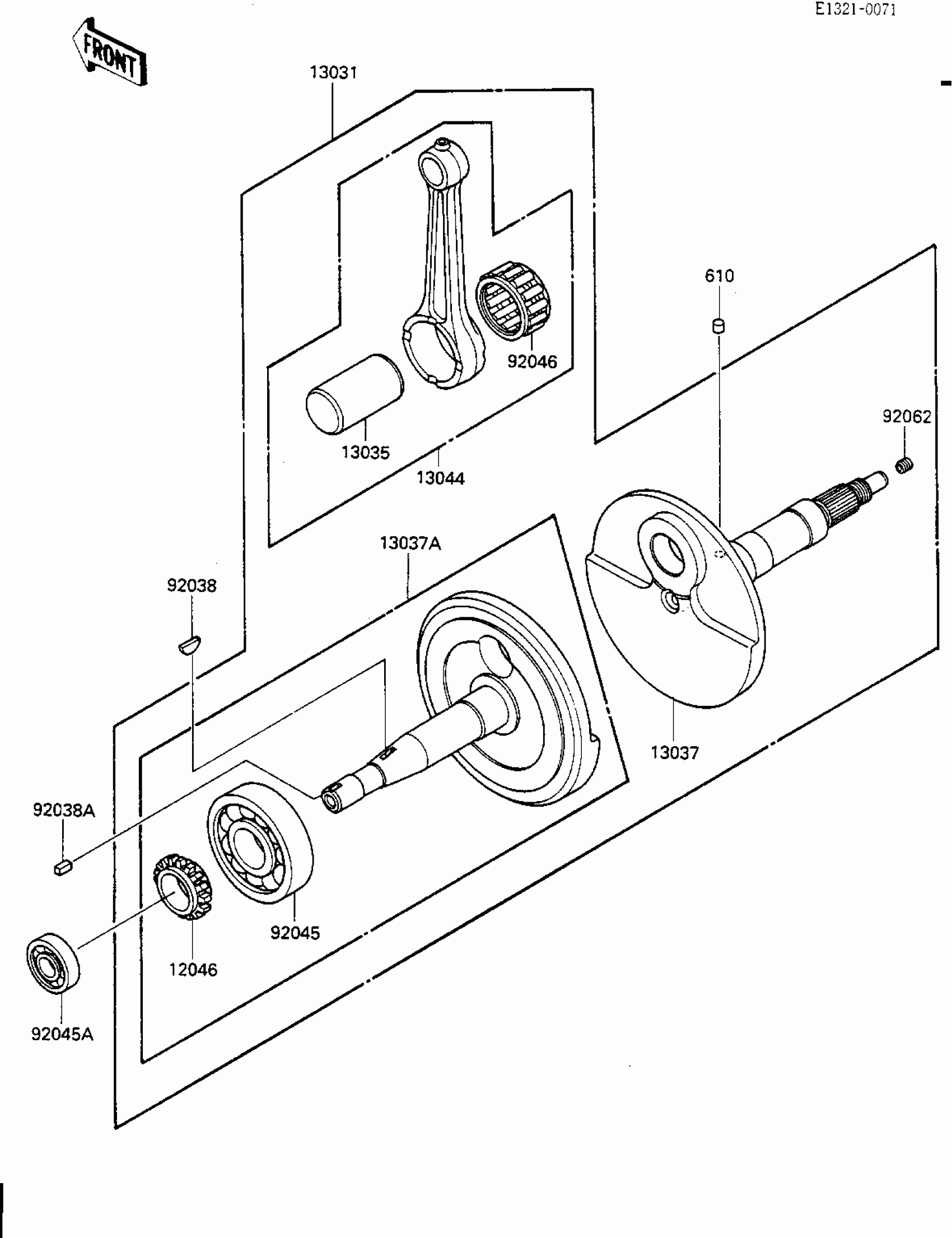

1985 Kawasaki KLT160 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12046

SPROCKET,CAM CHAIN,19T

12046-1058

1
Out of stock

13031

CRANKSHAFT-COMP

13031-1192

1
Out of stock

13035

PIN-CRANK

13035-1053

1
Out of stock

13037

CRANKSHAFT,RH

13037-1257

1
Out of stock

13037A

CRANKSHAFT,LH

13037-5038

1
Out of stock

13044

SET-CONNECTING ROD

13044-5039

1
Out of stock

92038

KEY,WOODRUFF

92038-001

1
Out of stock

92038A

KEY,SUNK

92038-1051

1
Out of stock

92045

BEARING-BALL,6305JR2C3

92045-1120

1
Out of stock

92045A

BEARING-BALL,#6903C3

92045-1131

1
Out of stock

92046

BEARING-NEEDLE

92046-1011

1
Out of stock

92062

NOZZLE

92062-1053

1
Out of stock

610

ROLLER,4X6

610A0406

1
Out of stock
