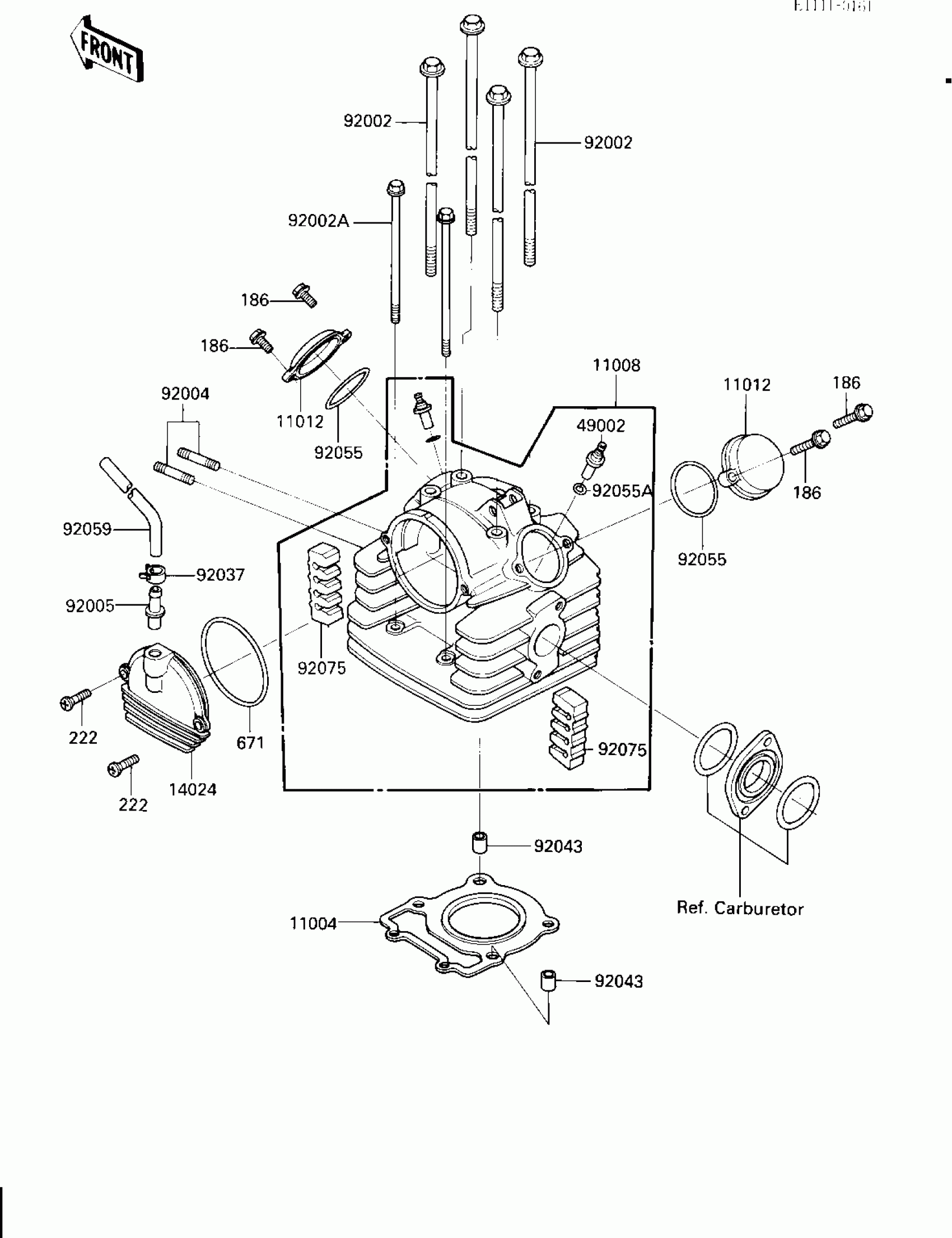

Kawasaki KLT160 CYLINDER HEAD/COVERS Diagram

Description

Price

11004

GASKET-HEAD,CYLINDER

11004-1113

Unavailable

11008

HEAD-COMP-CYLINDER

11008-1108

Unavailable

11012

CAP,ROCKER ARM

11012-1486

$29.66

14024

COVER,CAMSHAFT

14025-1974

Unavailable

49002

GUIDE-VALVE

49002-1058

Unavailable

92002

BOLT,8X211

92001-1892

$18.37

92002A

BOLT,6X97

92001-1893

$3.49

92004

STUD,6X30

92004-1128

$4.02

92005

FITTING,BREATHER PIPE

92005-1124

$18.68

92037

CLAMP,HOSE CLIP

92037-1181

$2.31

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92055

RING-O,53.5X2.6

92055-112

$4.97

92055A

RING-O,VALVE GUIDE

92055-1177

Unavailable

92059

TUBE,BREATHER

92059-1511

$29.92

92075

DAMPER

92075-1657

Unavailable

186

BOLT-UPSET-WP

186G0625

Unavailable

222

SCREW,OVL CNTSNK,6X16

222E0616

Unavailable

671

O RING,95MM

671B2595

$5.58
