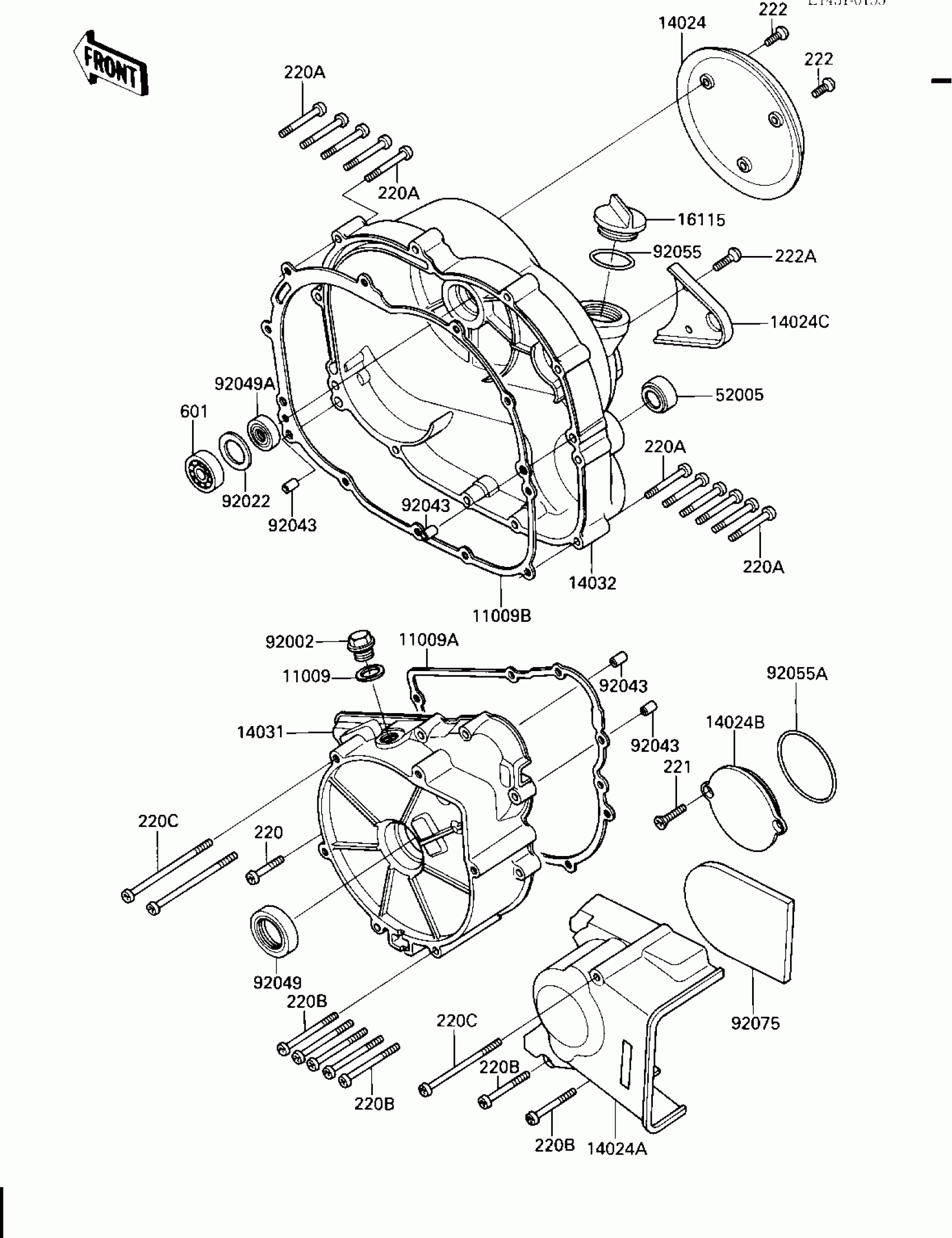

Kawasaki KLT160 ENGINE COVERS Diagram

#

Description
Price

11009

GASKET,14.3X20X1

11009-1238

$3.51

11009A

GASKET,GENERATOR COVER

11009-1393

Unavailable

11009B

GASKET,CLUTCH COVER

11009-1395

Unavailable

14024

COVER

14025-1807

$39.62

14024A

COVER,LH

14025-1811

Unavailable

14024B

COVER

14025-1813

$34.01

14024C

COVER

14025-1838

Unavailable

14031

COVER-GENERATOR

14031-1158

Unavailable

14032

COVER-CLUTCH

14032-1158

Unavailable

16115

CAP-OIL FILLER

16115-1009

$10.86

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92002

BOLT,14X10

92002-1513

$7.44

92022

WASHER,21X31.5X1.0

92022-1624

$4.42

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92049

SEAL-OIL,TC25356

92049-1317

$10.61

92049A

SEAL-OIL

92049-1191

$22.97

92055

RING-O,31.5X2.6

92055-049

$3.29

92055A

RING-O,55MM

92055-1120

$4.18

92075

DAMPER

92075-1664

$5.15

220

SCREW-PAN-CROS,6X25,B

220C0625

Unavailable

220A

SCREW-PAN HEAD,6X30

220C0630

$1.41

220B

SCREW-PAN-CROS,6X35,B

220C0635

$4.75

220C

SCREW-PAN-CROS,6X70

220C0670

Unavailable

221

SCREW-CSK-CROS,6X18

221B0618

Unavailable

222

SCREW-CSK-RD-CROS

222C0510

Unavailable

222A

SCREW-CSK-RD-CROS

222C0518

$4.15

601

BEARING-BALL,#6201C3

601B6201

$10.56
