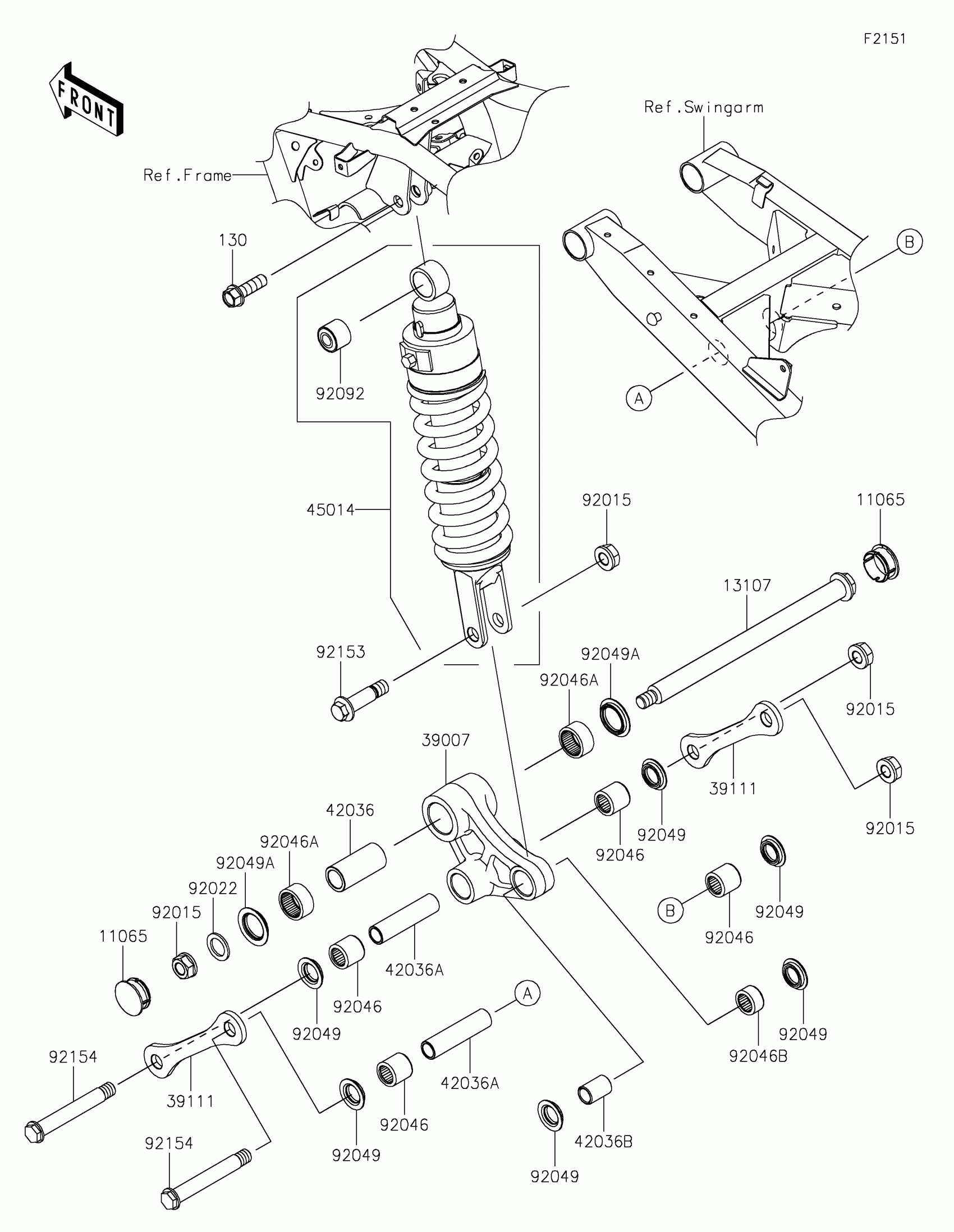

Find the part on the Suspension/shock Absorber diagram for your 2025 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,32X14

11065-0822

1

$7.17

In stock

13107

1

$81.91

In stock

39007

ARM-SUSP,UNI TRAK

39007-0075

1

$246.58

In stock

39111

ROD-TIE,SUSPENSION

39111-0386

1

$29.92

In stock

42036

SLEEVE,20X28X60

42036-0071

1

$32.59

In stock

42036A

SLEEVE,15X20X82

42036-0072

1

$28.95

In stock

42036B

SLEEVE,15X20X30

42036-0073

1

$15.97

In stock

45014

SHOCKABSORBER

45014-0693

1

$1,345.66

In stock

92015

NUT,14MM

92015-1459

1

$7.86

In stock

92022

WASHER,20X30X2.3

92022-1568

1

$3.85

In stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92046B

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92092

BUSHING-RUBBER

92092-1063

1

$29.70

In stock

92153

BOLT,FLANGED,14X56

92153-1692

1

$20.88

In stock

92154

BOLT,FLANGED,14X108

92154-1427

1

$19.14

In stock

130

BOLT-FLANGED,12X40

130BA1240

1

$2.68

In stock
