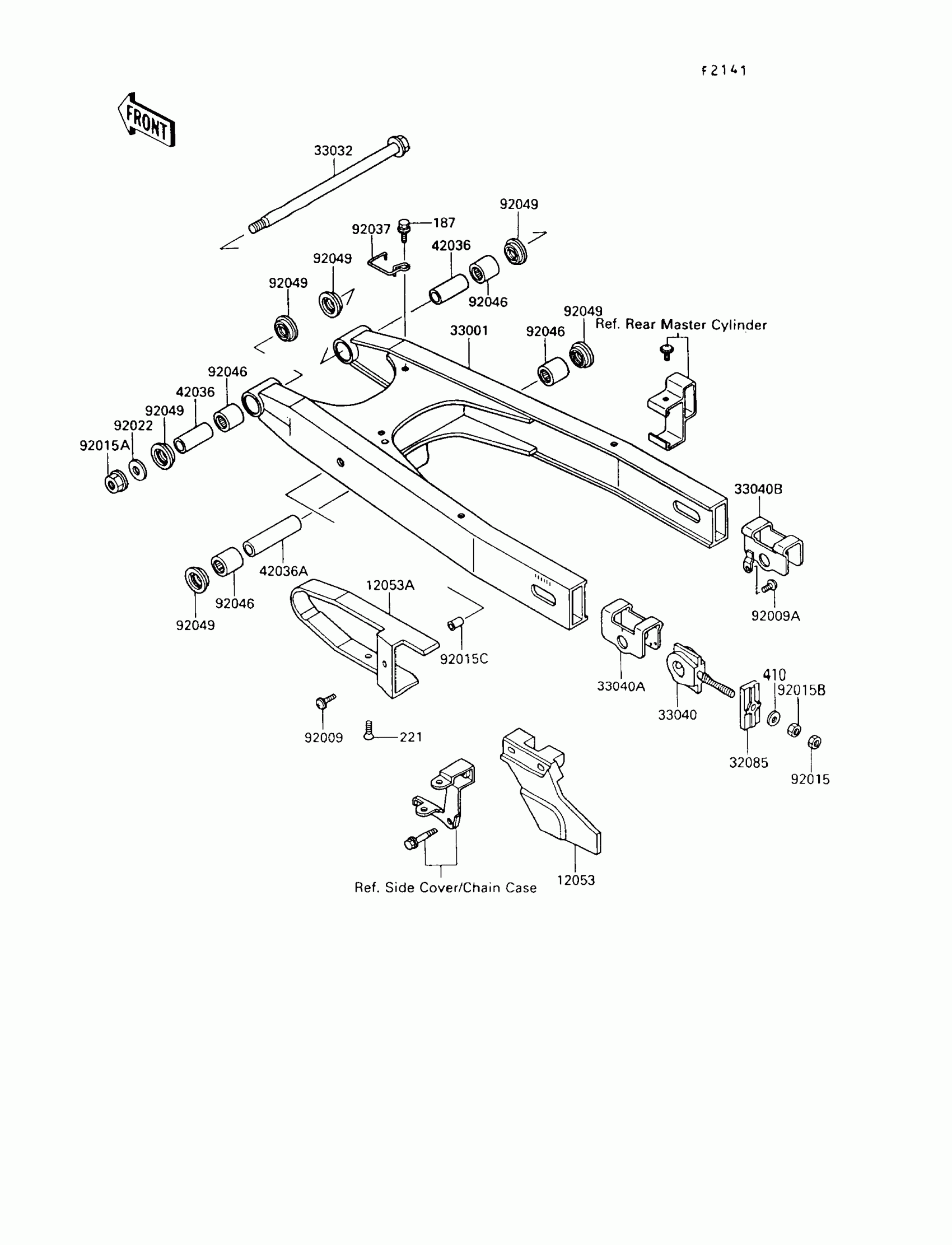

Kawasaki KLR650 Swingarm Diagram

#

Description
Price

12053

GUIDE-CHAIN,RR

12053-1104

$65.60

12053A

GUIDE-CHAIN,DRIVE,FR

12053-1293

Unavailable

32085

STOPPER,CHAIN ADJUSTER

32085-1256

$19.94

33001

ARM-COMP-SWING,SILVER NO.25

33001-1278-CE

$1,019.77

33032

SHAFT-SWING ARM

33032-1128

$74.81

33040

ADJUSTER-CHAIN,INNER

33040-1075

$31.08

33040A

ADJUSTER-CHAIN,OUTER

33040-1076

$38.22

33040B

ADJUSTER-CHAIN,OUTER

33040-1078

$40.73

42036

SLEEVE,15X20X47.5

42036-1204

$18.14

42036A

SLEEVE,15X20X82

42036-1205

$25.68

92009

SCREW,6X14

92009-1288

$2.99

92009A

SCREW,5X10

92009-1651

$3.92

92015

NUT,8MM

92015-1364

$2.99

92015A

NUT,14MM

92015-1459

$7.54

92015B

NUT,8MM

92015-1658

$3.71

92015C

NUT,CRIMP 6MM

92015-1796

$5.37

92022

WASHER,16X32X3.2

92022-1701

$3.57

92037

CLAMP,HOSE

92037-1902

$7.44

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92049

SEAL-OIL,ARM

92049-1109

$7.08

187

BOLT-UPSET-WSP

187D0610

$4.15

221

SCREW-CSK-CROS,6X10

221B0610

$2.79

410

WASHER PLAIN 8MM

410B0800

Unavailable
