1991 Kawasaki KLR650 Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1991 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

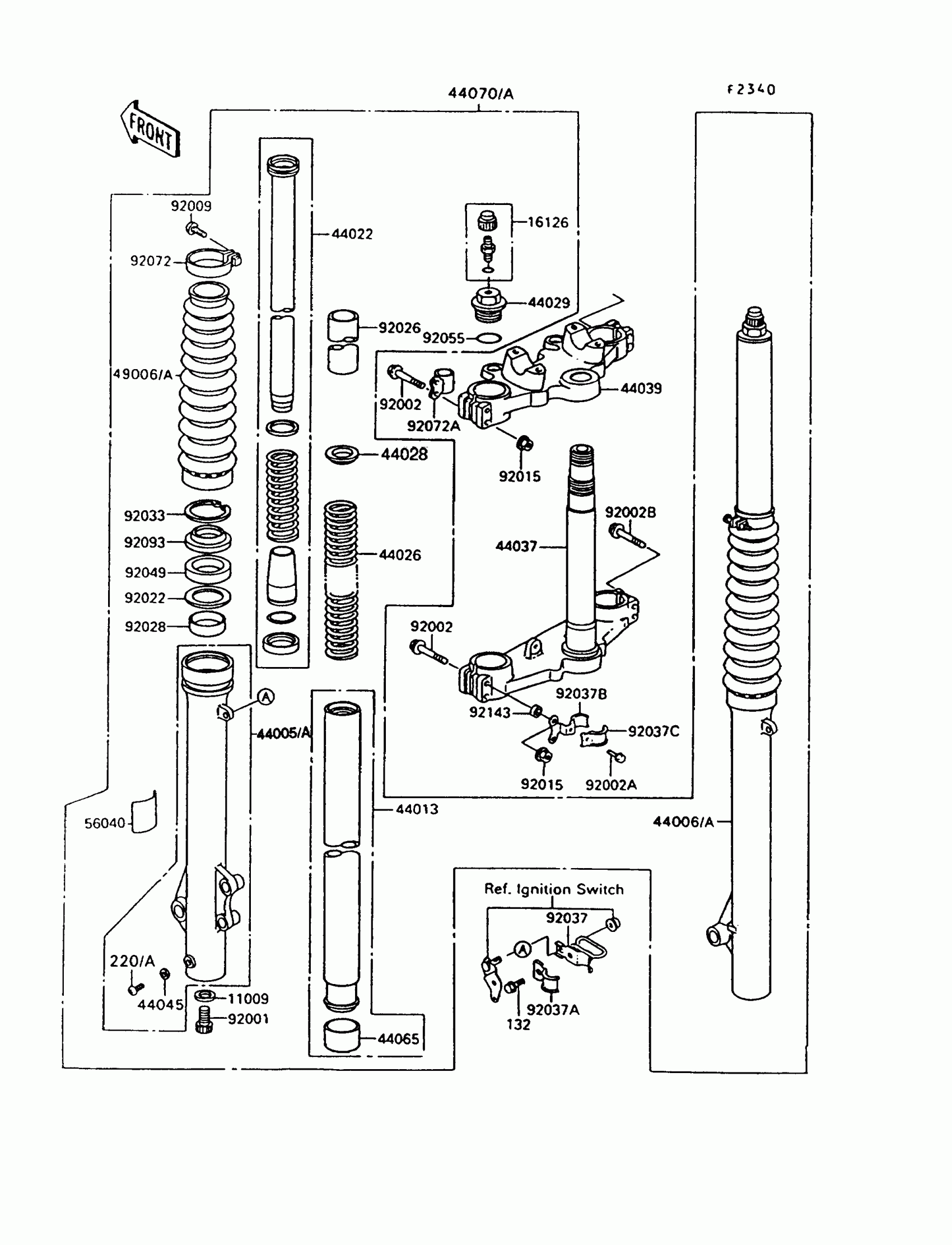

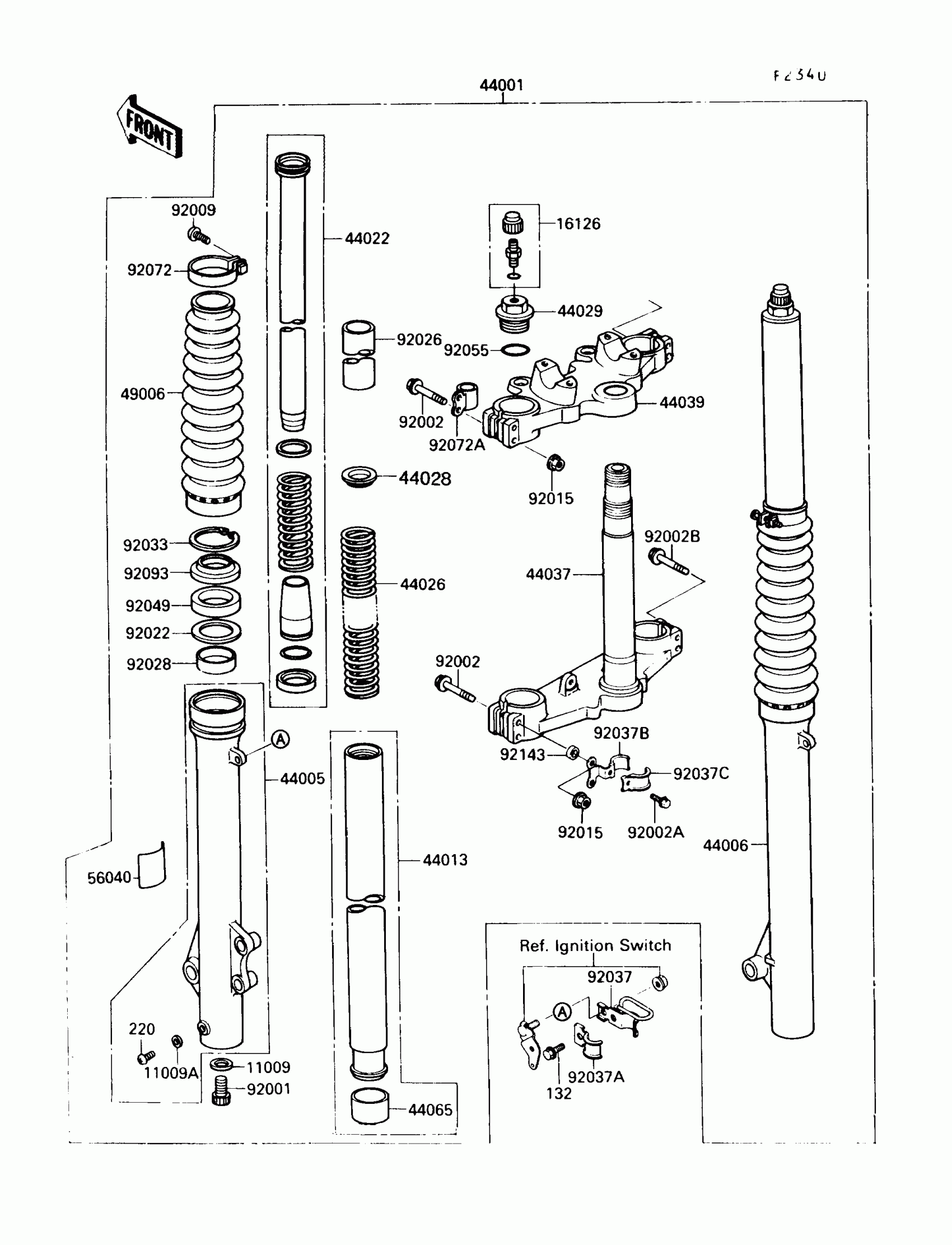

1991 Kawasaki KLR650 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11009A

1

$4.12

In stock

16126

VALVE,AIR

16126-1052

1

$32.11

In stock

44001

FORK-FRONT,BLUE

44001-1648-BC

1

$1,985.90

In stock

44005

1

$451.98

In stock

44006

1

$423.51

In stock

44013

PIPE-FORK INNER

44013-1264

1

$429.99

In stock

44022

CYLINDER-FORK

44022-1211

1

$193.84

In stock

44026

SPRING-FRONT FORK

44026-1369

1

$74.31

In stock

44028

GUIDE-FORK SPRING

44028-1003

1
Out of stock

44029

SEAT-FORK SPRING

44029-1042

1

$73.52

In stock

44037

HOLDER-FORK UNDER

44037-1207

1

$635.80

In stock

44039

HOLDER-FORK UPPER

44039-1160

1

$322.77

In stock

44065

1

$44.61

In stock

49006

BOOT,FORK,BLUE

49006-1222-BC

1

$96.09

In stock

56040

LABEL-WARNING,FRONT FORK

56040-1120

1
Out of stock

92001

BOLT,FORK CYLINDER

92001-1309

1

$6.06

In stock

92002

BOLT,FLANGED,8X55

92002-1158

1

$7.33

In stock

92002A

BOLT

92002-1982

1
Out of stock

92002B

BOLT,FLANGED,8X45

92002-1983

1
Out of stock

92009

SCREW,4X16

92009-1348

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1

$4.27

In stock

92022

WASHER

92022-1242

1

$8.39

In stock

92026

SPACER

92026-1294

1

$44.62

In stock

92028

BUSHING

92028-1125

1

$23.54

In stock

92033

RING-SNAP,FORK

92033-1047

1

$5.11

In stock

92037

CLAMP,HOSE

92037-1897

1

$15.66

In stock

92037A

CLAMP,HOSE

92037-1898

1

$8.71

In stock

92037B

CLAMP

92037-1913

1

$20.27

In stock

92037C

CLAMP

92037-1931

1

$8.63

In stock

92049

SEAL-OIL,FRONT FORK

92049-1180

1
Out of stock

92055

RING-O,FORK TOP CAP

92055-1050

1

$4.97

In stock

92072

BAND,BOOT

92072-1171

1
Out of stock

92072A

BAND,CABLE

92072-1225

1

$21.95

In stock

92093

SEAL,FRONT FORK

92093-1166

1

$14.33

In stock

92143

COLLAR

92143-1134

1

$12.20

In stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

220

SCREW PAN HEAD 4X8

220B0408

1
Out of stock
