2025 Kawasaki KLR650 S Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

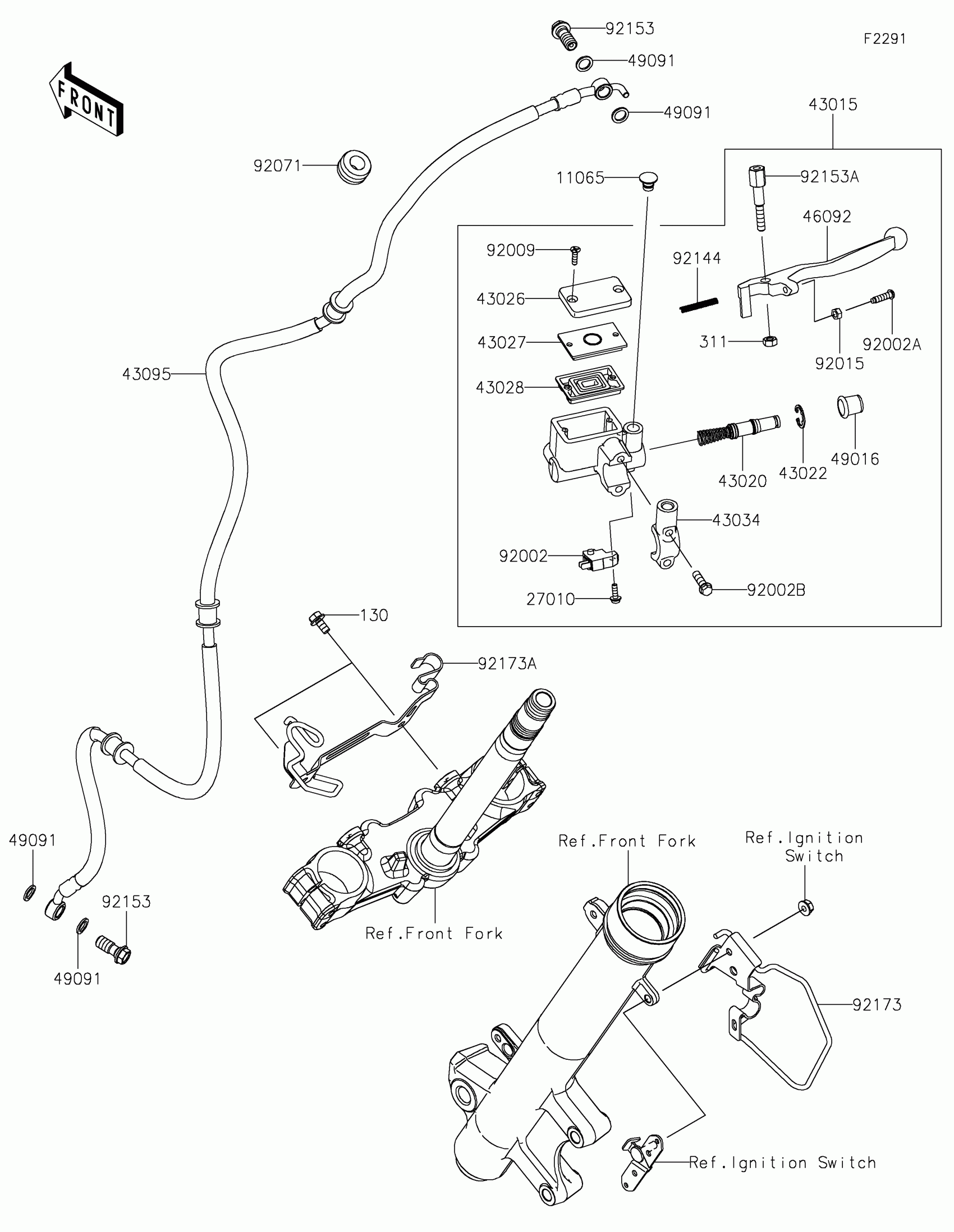

2025 Kawasaki KLR650 S Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,DUMMY

11065-0921

1

$4.44

In stock

27010

SWITCH,BRAKE

27010-0762

1

$32.10

In stock

43015

1

$312.92

In stock

43020

PISTON-COMP-BRAKE

43020-1104

1

$53.22

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-1082

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1057

1
Out of stock

43028

DIAPHRAGM

43028-1061

1

$12.79

In stock

43034

HOLDER-BRAKE

43034-0145

1

$15.29

In stock

43095

1

$184.75

In stock

46092

1

$20.31

In stock

49016

1

$6.90

In stock

49091

1

$1.81

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT,ADJUST

92002-1893

1
Out of stock

92002B

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,ADJUST

92015-1642

1

$3.12

In stock

92071

GROMMET,12.2X26X16

92071-0785

1
Out of stock

92144

SPRING,RETURN

92144-1103

1

$7.48

In stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,LEVER SET

92153-0790

1
Out of stock

92173

CLAMP

92173-2348

1

$11.61

In stock

92173A

CLAMP

92173-2350

1

$21.56

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

311

NUT-HEX,6MM

311BB0600

1

$0.98

In stock
