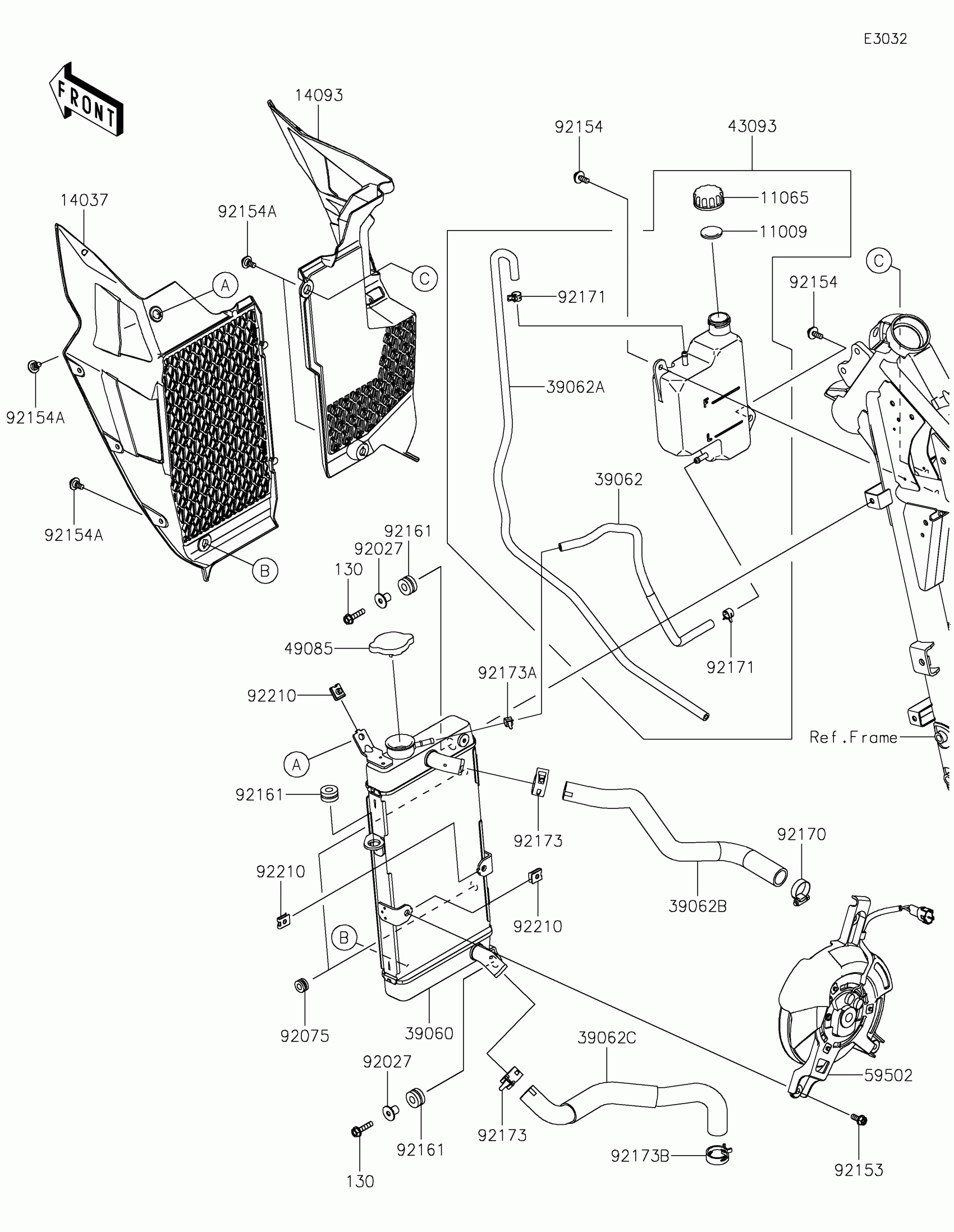

2025 Kawasaki KLR650 S Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

14037

SCREEN,RADIATOR

14037-0821

1

$48.94

In stock

14093

COVER,RH

14093-1070

1

$32.73

In stock

39060

RADIATOR

39060-0744

1

$426.38

In stock

39062

1

$7.58

In stock

39062A

1

$13.47

In stock

39062B

1

$19.61

In stock

39062C

1

$17.41

In stock

43093

RESERVOIR-ASSY-TANK

43093-0010

1

$54.11

In stock

49085

CAP-ASSY-PRESSURE

49085-0006

1

$45.73

In stock

59502

FAN-ASSY

59502-0632

1

$484.69

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92075

DAMPER

92075-1912

1

$5.07

In stock

92153

BOLT

92153-0531

1
Out of stock

92154

BOLT,6X16

92154-0391

1

$1.66

In stock

92154A

BOLT,FLANGED,6X9

92154-0546

1

$2.97

In stock

92161

DAMPER

92161-1755

1

$4.17

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

92171

CLAMP,10.5X8X0.7

92171-1992

1

$5.42

In stock

92173

CLAMP

92173-1567

1

$3.14

In stock

92173A

CLAMP

92173-2425

1

$1.22

In stock

92173B

CLAMP

92173-2459

1

$2.63

In stock

92210

NUT

92210-1323

1
Out of stock

130

BOLT-FLANGED,6X25

130BA0625

1

$1.01

In stock
