2025 Kawasaki KLR650 S Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

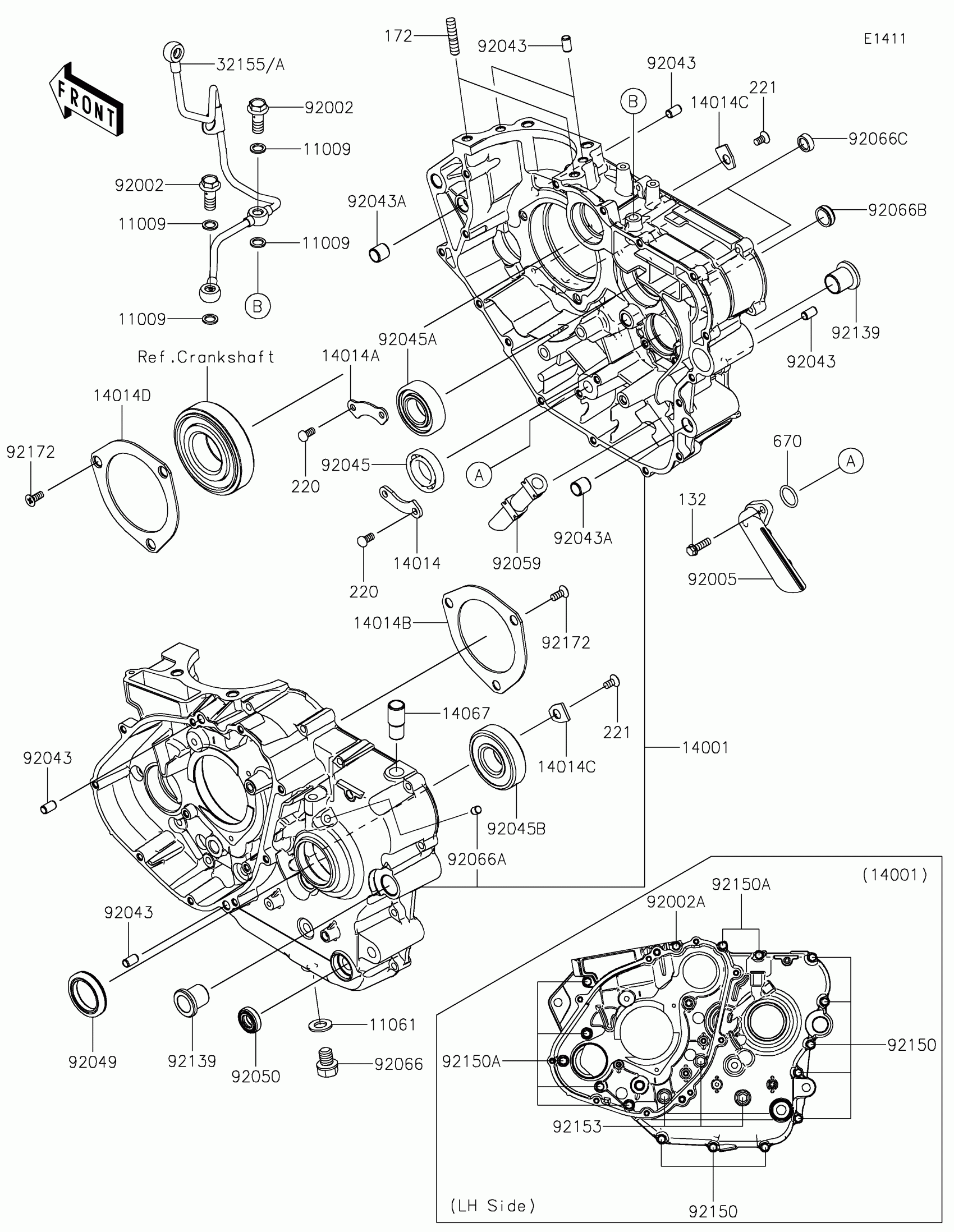

2025 Kawasaki KLR650 S Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

11061

GASKET,12X22X2

11061-0417

1

$2.58

In stock

14001

SET-CRANKCASE

14001-0730

1

$1,020.09

In stock

14014

PLATE-POSITION

14014-0045

1
Out of stock

14014A

PLATE-POSITION

14014-0562

1
Out of stock

14014B

PLATE-POSITION

14014-1051

1
Out of stock

14014C

PLATE-POSITION

14014-1057

1
Out of stock

14014D

PLATE-POSITION

14014-1083

1
Out of stock

14067

FITTING,BREATHER

14067-006

1

$19.78

In stock

32155A

PIPE,CRANKCASE-HEAD

32155-7524

1

$110.10

In stock

92002

BOLT,BANJO,10X25

92002-1170

1

$9.22

In stock

92002A

BOLT,FLANGED,6X60

92002-1567

1
Out of stock

92005

FITTING

92005-1152

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043A

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

92045A

BEARING-BALL,TMB205

92045-1105

1

$24.68

In stock

92045B

1

$44.18

In stock

92049

SEAL-OIL,32X45X7.5

92049-0825

1

$20.69

In stock

92050

SEAL-OIL

92050-082

1
Out of stock

92059

TUBE,BREATHER

92059-1833

1

$13.54

In stock

92066

1

$5.45

In stock

92066A

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066B

PLUG,RCA207

92066-1264

1

$7.88

In stock

92066C

PLUG

92066-1282

1

$5.66

In stock

92139

BUSHING

92139-1117

1

$16.97

In stock

92150

BOLT,6X30

92150-1021

1
Out of stock

92150A

BOLT,6X50

92150-1968

1

$3.87

In stock

92153

BOLT,FLANGED-SMALL,8X80

92153-1323

1
Out of stock

92172

SCREW,6X15

92172-0144

1

$1.69

In stock

132

1

$2.05

In stock

172

BOLT-STUD,8X22

172BA0822

1

$1.83

In stock

220

1

$1.10

In stock

221

1

$1.73

In stock

670

O RING,18MM

670D2018

1

$1.61

In stock
