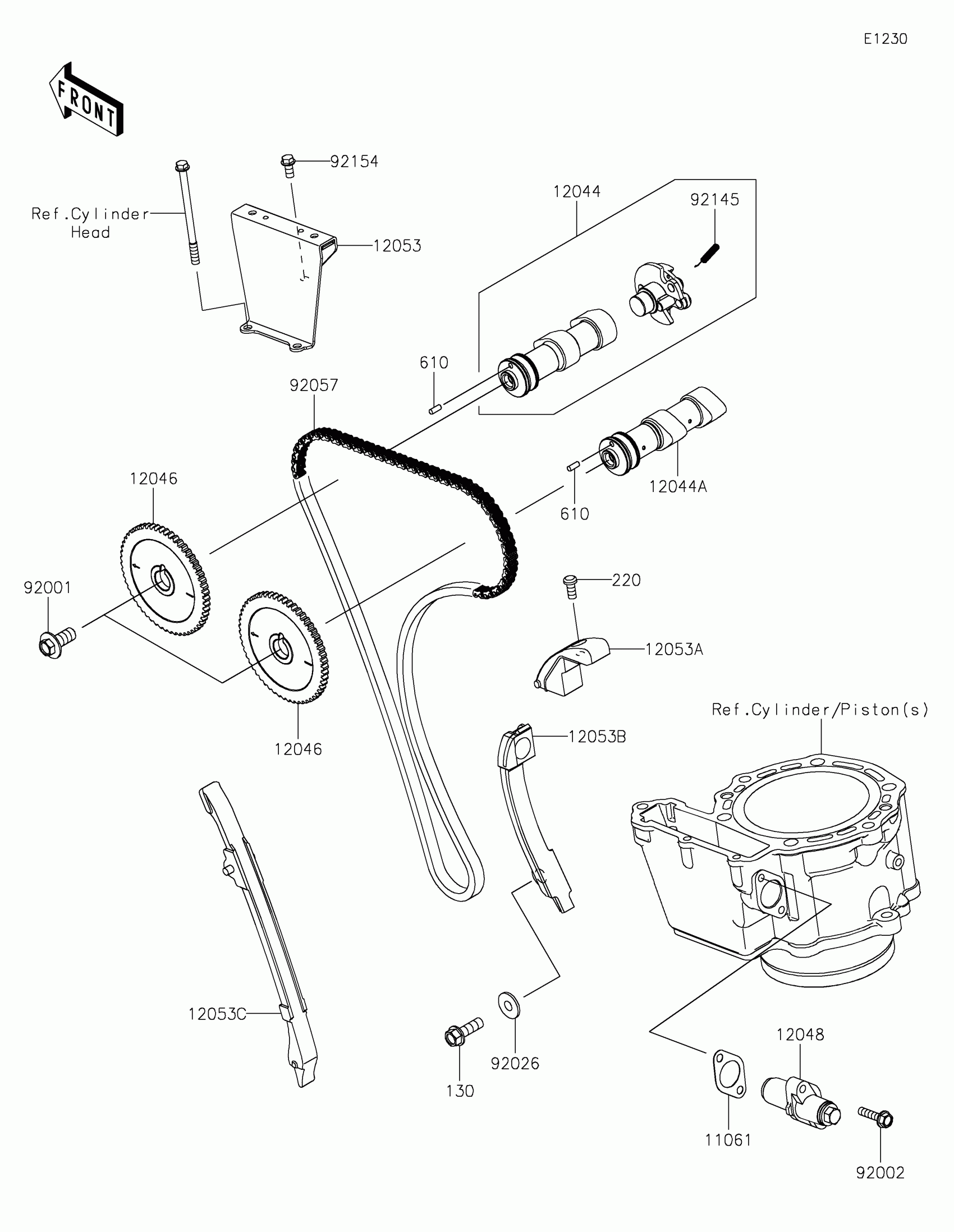

Kawasaki KLR650 S Camshaft(s)/Tensioner Diagram

Description

Price

11061

GASKET,TENSIONER

11061-0427

$4.91

12044

CAMSHAFT-VALVE,EXHAUST

12044-1522

$363.15

12044A

CAMSHAFT-VALVE,INTAKE

12044-1523

$364.20

12046

SPROCKET,48T

12046-1160

$69.72

12048

TENSIONER-ASSY,CAM CHAIN

12048-1141

$130.13

12053

GUIDE-CHAIN,UPP

12053-0314

$73.80

12053A

GUIDE-CHAIN,LWR

12053-1134

$19.78

12053B

GUIDE-CHAIN,RR

12053-1222

$79.35

12053C

GUIDE-CHAIN,FR

12053-1223

$45.84

92001

BOLT,10X23

92001-1859

$7.86

92002

BOLT,FLANGED,6X25

92002-1086

$4.37

92026

SPACER

92026-1146

$8.37

92057

CHAIN,CAM,92RH2015

92057-0671

$141.80

92145

SPRING,DECOMPRESSOR

92145-1984

$5.37

92154

BOLT,FLANGED,6X12

92154-0358

$1.66

130

BOLT-FLANGED,8X25

130BA0825

$2.34

220

SCREW-PAN-CROSS,6X14

220AA0614

$1.32

610

ROLLER,4X10

610A0410

$3.43
