2025 Kawasaki KLR650 S Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

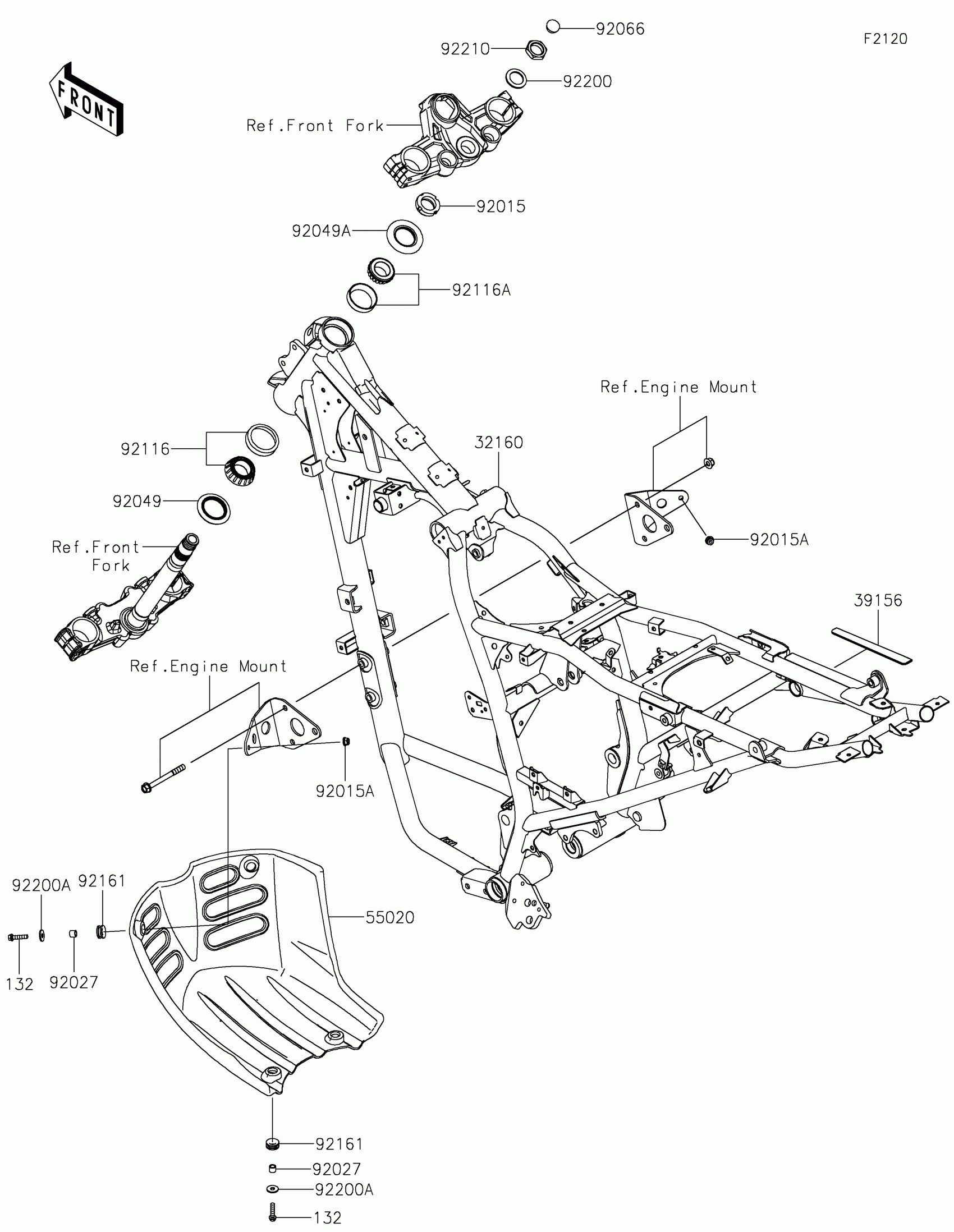

2025 Kawasaki KLR650 S Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,F.S.BLACK

32160-1906-18R

1

$2,588.04

In stock

39156

PAD,RH

39156-2775

1

$5.92

In stock

55020

GUARD,ENGINE,F.BLACK

55020-2372-6Z

1

$162.78

In stock

92015

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92015A

1

$3.72

In stock

92027

COLLAR,6.8X10X8.5

92027-129

1

$3.97

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,STEERING STEM

92049-1214

1
Out of stock

92066

PLUG

92066-1306

1

$4.34

In stock

92116

1

$33.21

In stock

92116A

1

$37.01

In stock

92161

DAMPER,10X20X8

92161-1828

1

$1.10

In stock

92200

WASHER,STEERING STEM

92200-0517

1
Out of stock

92200A

WASHER,6.5X18X1.6

92200-0766

1
Out of stock

92210

NUT,STEERING STEM,22MM

92210-1521

1
Out of stock

132

1

$2.29

In stock
