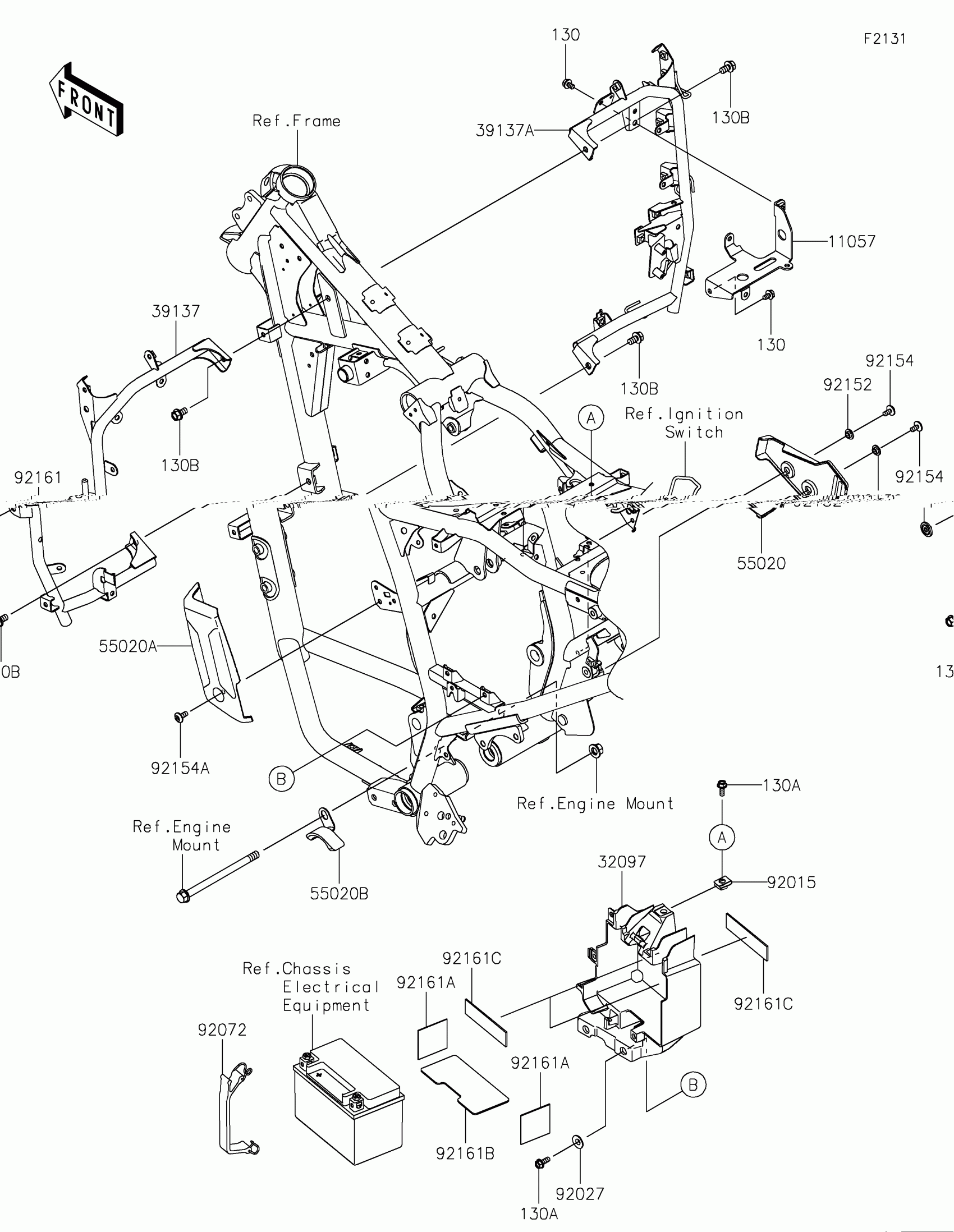

Find the part on the Frame Fittings diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-7886

1
Out of stock

32097

CASE-BATTERY

32097-0565

1
Out of stock

39137

STAY-COMP,LH

39137-0710

1
Out of stock

39137A

STAY-COMP,RH

39137-0711

1
Out of stock

55020

GUARD,HEEL

55020-2330

1
Out of stock

55020A

GUARD

55020-2335

1
Out of stock

55020B

GUARD,CHAIN

55020-2390

1
Out of stock

92015

NUT,6MM

92015-1671

1
Out of stock

92027

COLLAR

92027-1794

1
Out of stock

92072

BAND,BATTERY

92072-0839

1
Out of stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-2706

1
Out of stock

92154A

BOLT,SOCKET,6X14

92154-4285

1
Out of stock

92161

DAMPER,8X22X10

92161-1685

1
Out of stock

92161A

DAMPER,60X140X1

92161-1868

1
Out of stock

92161B

DAMPER,BATTERY

92161-2353

1
Out of stock

92161C

DAMPER,25X100X2

92161-2354

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1
Out of stock

130A

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

130B

BOLT-FLANGED,8X14

130BA0814

1
Out of stock
