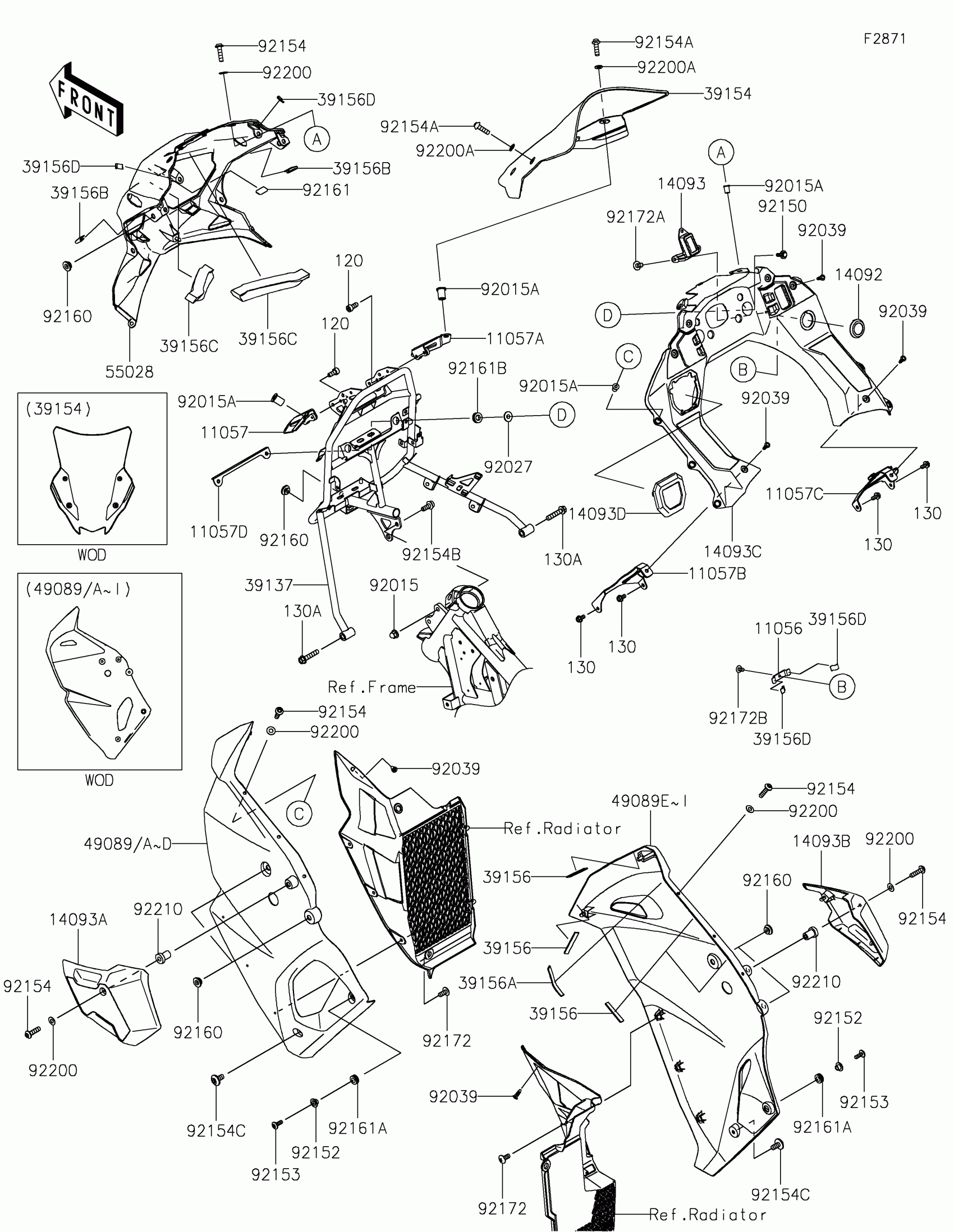

2025 Kawasaki KLR650 S Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2025 Kawasaki KLR650 S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CAP COVER

11056-4313

1

$1.10

In stock

11057

1

$4.68

In stock

11057A

1

$4.68

In stock

11057B

1

$9.61

In stock

11057C

1

$11.39

In stock

11057D

BRACKET,METER

11057-7893

1

$5.19

In stock

14092

COVER,DC SOCKET

14092-0214

1

$5.71

In stock

14093

COVER,FOG SW.

14093-0565

1

$2.37

In stock

14093A

COVER,SHROUD,LH

14093-1074

1

$43.54

In stock

14093B

COVER,SHROUD,RH

14093-1075

1

$43.54

In stock

14093C

COVER,DASHBOARD

14093-1076

1

$226.54

In stock

14093D

COVER,USB

14093-1077

1

$31.45

In stock

39137

STAY-COMP,COWLING

39137-0731

1

$329.45

In stock

39154

WINDSHIELD

39154-0434

1

$142.66

In stock

39156

PAD,10X50X2

39156-1924

1

$2.02

In stock

39156A

PAD,10X80X2

39156-2238

1

$1.20

In stock

39156B

PAD,25X25X2

39156-2573

1

$1.12

In stock

39156C

PAD,20X15X150

39156-2762

1

$4.83

In stock

39156D

PAD,20X10X2

39156-2849

1

$0.69

In stock

49089C

1

$199.09

In stock

49089H

1

$185.72

In stock

55028

COWLING,UPP

55028-0800

1

$119.60

In stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92027

COLLAR,L=7.4

92027-1848

1

$3.72

In stock

92039

RIVET

92039-0709

1

$2.19

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92152

COLLAR

92152-2770

1

$3.07

In stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0216

1

$1.78

In stock

92154A

BOLT,SOCKET,5X18

92154-1945

1

$1.47

In stock

92154B

BOLT,SOCKET,8X20

92154-2314

1

$2.02

In stock

92154C

BOLT,SOCKET,6X12

92154-2355

1

$1.66

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,12X23

92161-1367

1

$1.10

In stock

92161A

DAMPER,10X18X6.5

92161-2091

1

$2.02

In stock

92161B

DAMPER,10X20X6

92161-2168

1

$3.92

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

92172A

SCREW,5X10

92172-0864

1

$1.20

In stock

92172B

SCREW,CROSS,4X8

92172-1227

1

$0.47

In stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,5.2X10X1

92200-2286

1

$0.44

In stock

92210

NUT,5MM

92210-0001

1
Out of stock

120

BOLT-SOCKET,5X12

120CB0512

1

$1.51

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,8X40

130BA0840

1

$1.68

In stock
