2025 Kawasaki KLR650 S ABS Swingarm Diagram

← All diagrams

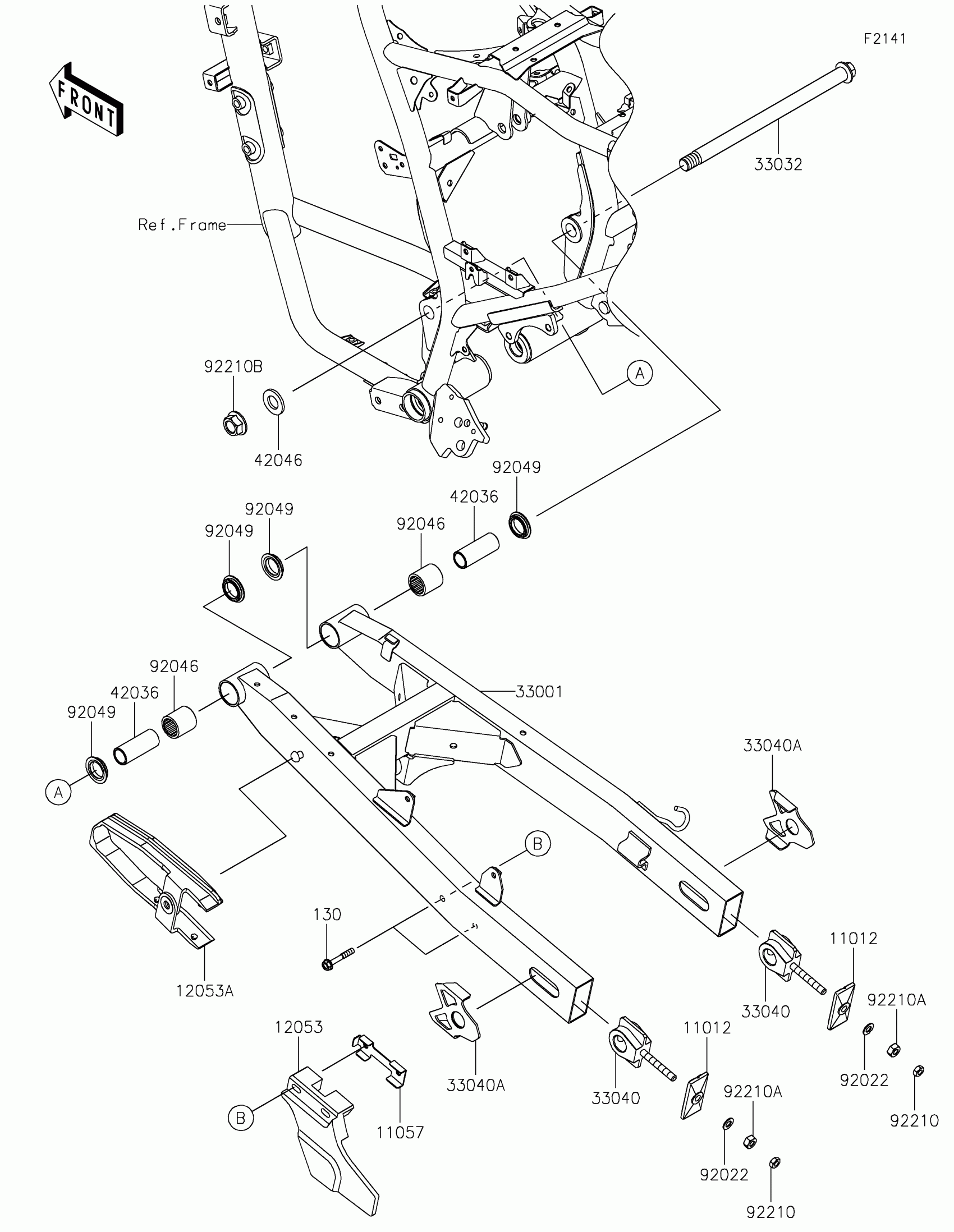

Find the part on the Swingarm diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S ABS Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

1

$24.26

In stock

11057

BRACKET,CHAIN GUIDE

11057-7405

1

$4.08

In stock

12053

GUIDE-CHAIN,RR

12053-0222

1

$66.65

In stock

12053A

GUIDE-CHAIN,FR

12053-0313

1

$45.41

In stock

33001

ARM-COMP-SWING,F.S.BLACK

33001-0733-18R

1

$962.56

In stock

33032

SHAFT-SWING ARM

33032-0066

1

$71.54

In stock

33040

ADJUSTER-CHAIN

33040-0098

1

$27.47

In stock

33040A

ADJUSTER-CHAIN,F.S.BLACK

33040-0099-18R

1

$21.41

In stock

42036

SLEEVE,17.1X22X55.5

42036-0859

1

$33.66

In stock

42046

WASHER,17.3X32X3.2

42046-009

1

$7.71

In stock

92022

WASHER,8.5X16X1.2

92022-1582

1

$0.84

In stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

1
Out of stock

92210

NUT,8MM,5X12

92210-1588

1

$0.88

In stock

92210A

NUT,8MM,6.5X14

92210-1589

1

$1.47

In stock

92210B

NUT,FLANGED,16MM

92210-1817

1

$21.63

In stock

130

BOLT-FLANGED,6X40

130BA0640

1

$1.12

In stock
