2025 Kawasaki KLR650 S ABS Front Hub Diagram

← All diagrams

Find the part on the Front Hub diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

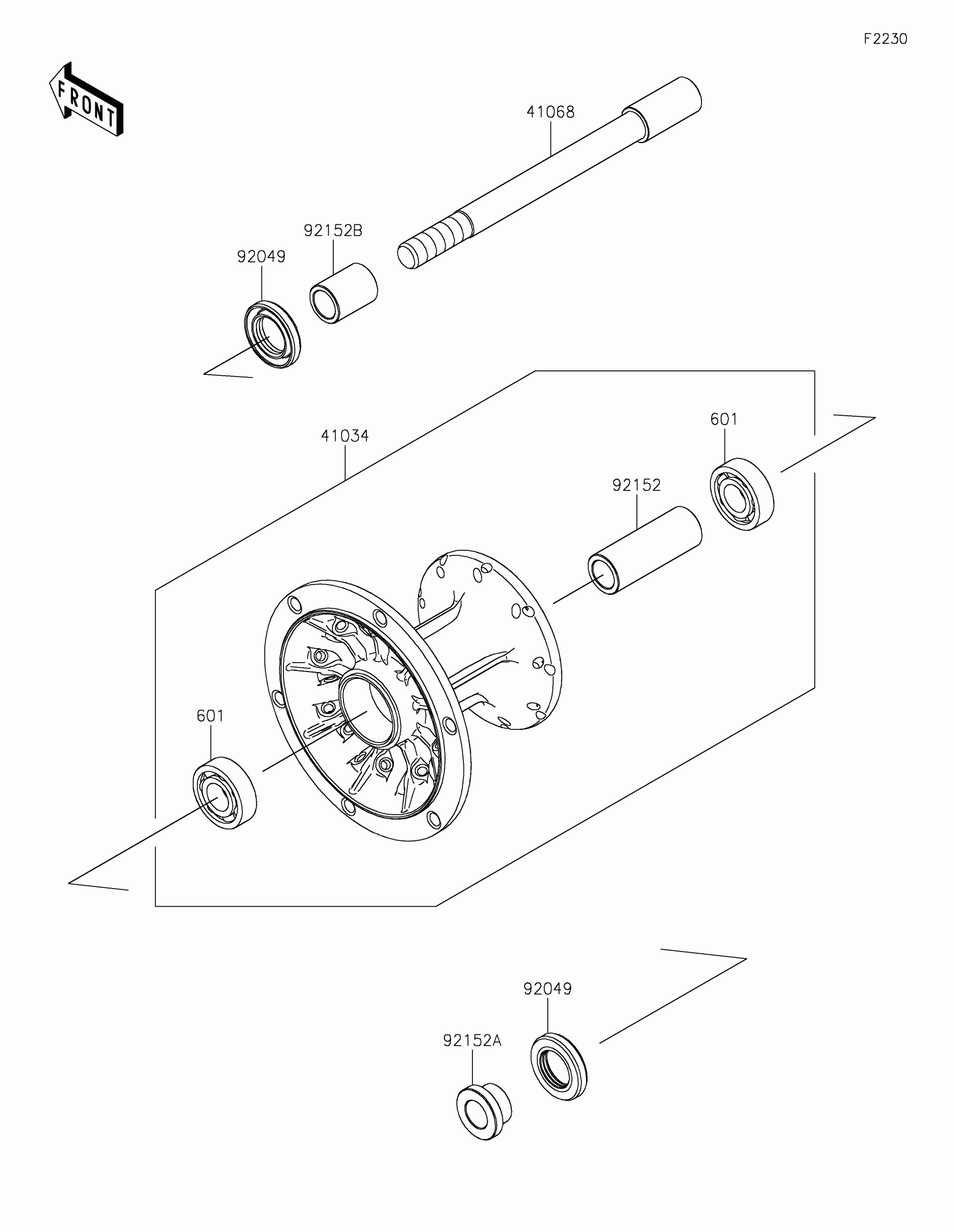

2025 Kawasaki KLR650 S ABS Front Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,FR

41034-0608

1

$588.17

In stock

41068

AXLE,FR

41068-0658

1

$91.58

In stock

92049

SEAL-OIL,23X40X7

92049-0801

1

$5.11

In stock

92152

COLLAR,17.2X25X67.5

92152-2732

1

$20.24

In stock

92152A

COLLAR,LH

92152-2733

1

$15.14

In stock

92152B

COLLAR,RH

92152-2734

1

$14.24

In stock

601

1

$34.89

In stock
