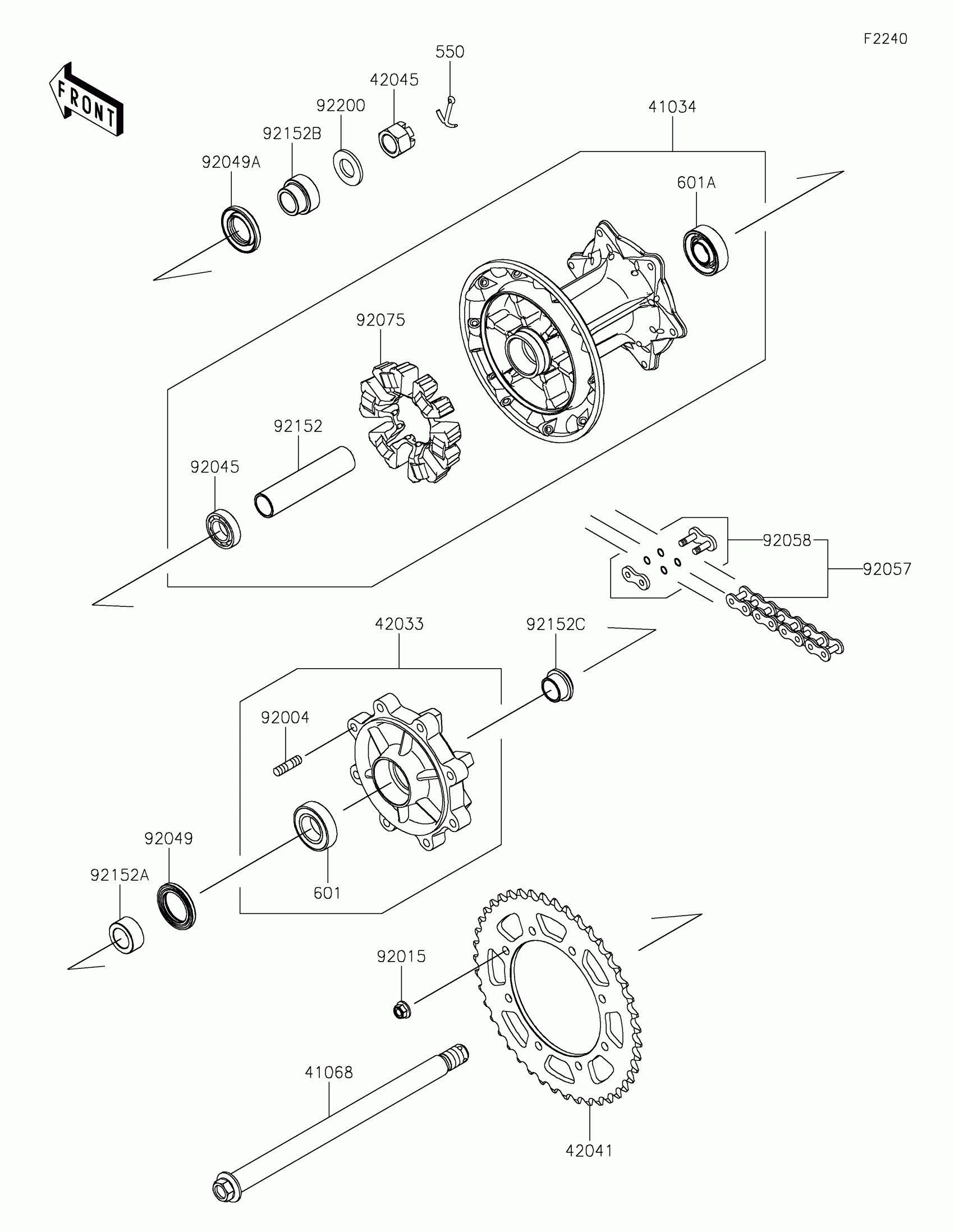

Find the part on the Rear Hub diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S ABS Rear Hub Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41034

DRUM-ASSY,RR

41034-0609

1
Out of stock

41068

AXLE,RR

41068-0659

1
Out of stock

42033

COUPLING-ASSY,REAR HUB

42033-0596

1
Out of stock

42041

SPROCKET-HUB,43T

42041-0185

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

92004

STUD,8X16

92004-1150

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92045

BEARING-BALL,20X37X9

92045-0942

1
Out of stock

92049

SEAL-OIL,32X47X5

92049-0795

1
Out of stock

92049A

SEAL-OIL,27X47X7

92049-0802

1
Out of stock

92057

CHAIN,DRIVE,520VEX110L

92057-0806

1
Out of stock

92058

JOINT-CHAIN

92058-0044

1
Out of stock

92075

DAMPER,SHOCK,RR HUB

92075-1068

1
Out of stock

92152

COLLAR,20.2X28X110.5

92152-2735

1
Out of stock

92152A

COLLAR,LH

92152-2736

1
Out of stock

92152B

COLLAR,RH

92152-2737

1
Out of stock

92152C

COLLAR,COUPLING

92152-2738

1
Out of stock

92200

WASHER,19X36X3.2

92200-0296

1
Out of stock

550

PIN-COTTER,4.0X35

550AA4035

1
Out of stock

601

BEARING-BALL,#6005UU

601B6005UU

1
Out of stock

601A

BEARING-BALL,#6204UG

601B6204UG

1
Out of stock
