2025 Kawasaki KLR650 S ABS Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

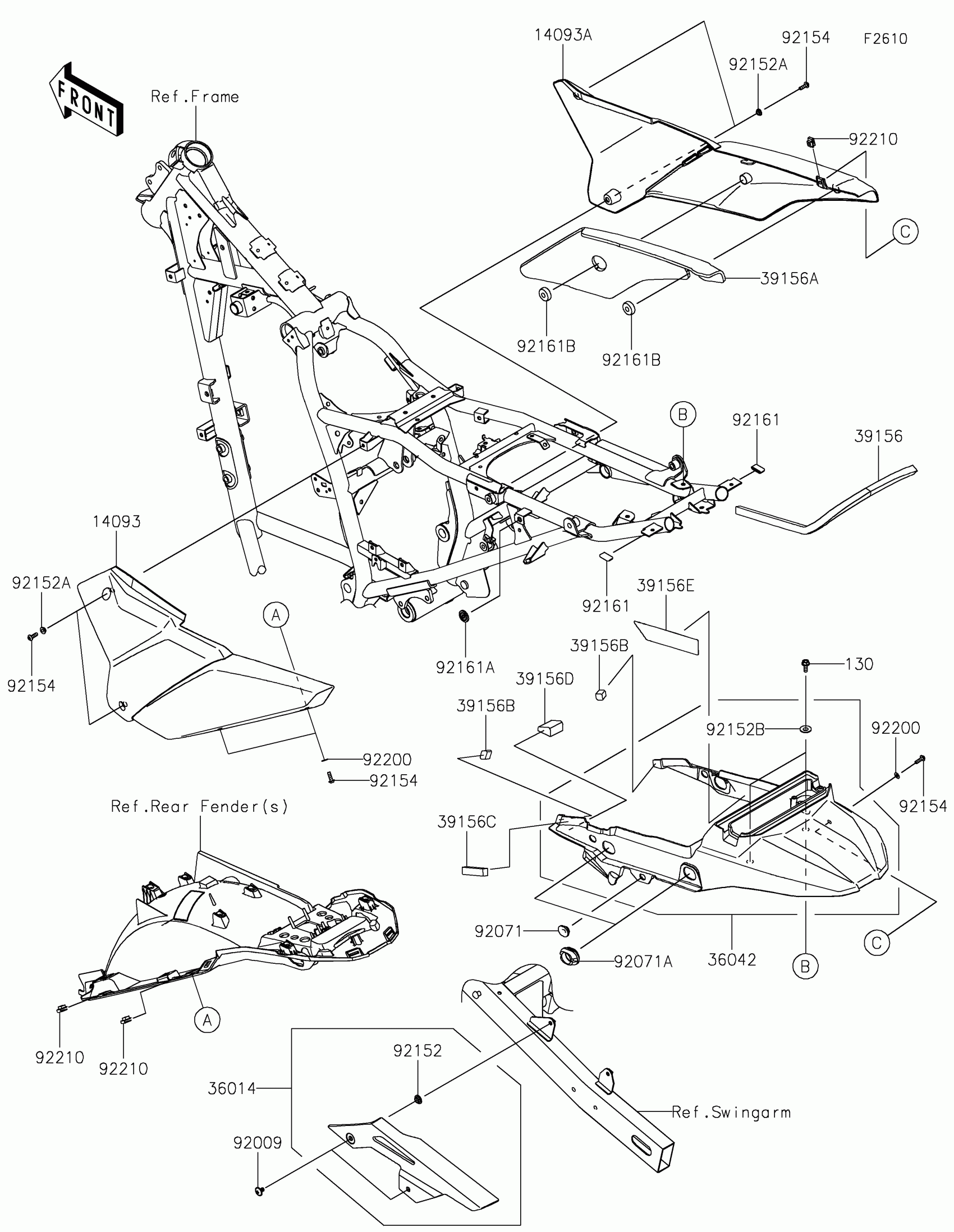

2025 Kawasaki KLR650 S ABS Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,SIDE,LH,BLACK

14093-1275-6Z

1
Out of stock

14093A

COVER,SIDE,RH,BLACK

14093-1276-6Z

1
Out of stock

36014

CASE-CHAIN

36014-0044

1
Out of stock

36042

COVER-TAIL,BLACK

36042-0015-6Z

1
Out of stock

39156

PAD,10X13X440

39156-2663

1
Out of stock

39156A

PAD,SIDE COVER,RH

39156-2682

1
Out of stock

39156B

PAD

39156-2750

1
Out of stock

39156C

PAD,10X13X62

39156-2763

1
Out of stock

39156D

PAD

39156-2764

1
Out of stock

39156E

PAD,TAIL COVER

39156-2780

1
Out of stock

92009

SCREW,6X10

92009-1729

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92071A

GROMMET,26.4X42.4X15.8

92071-0772

1
Out of stock

92152

COLLAR,8.8X11.2X4

92152-0909

1
Out of stock

92152A

COLLAR

92152-2903

1
Out of stock

92152B

COLLAR

92152-2907

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0182

1
Out of stock

92161

DAMPER,12X23

92161-1367

1
Out of stock

92161A

DAMPER,8X22X10

92161-1685

1
Out of stock

92161B

DAMPER

92161-2090

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock

130

BOLT-FLANGED,6X16

130BA0616

1
Out of stock
