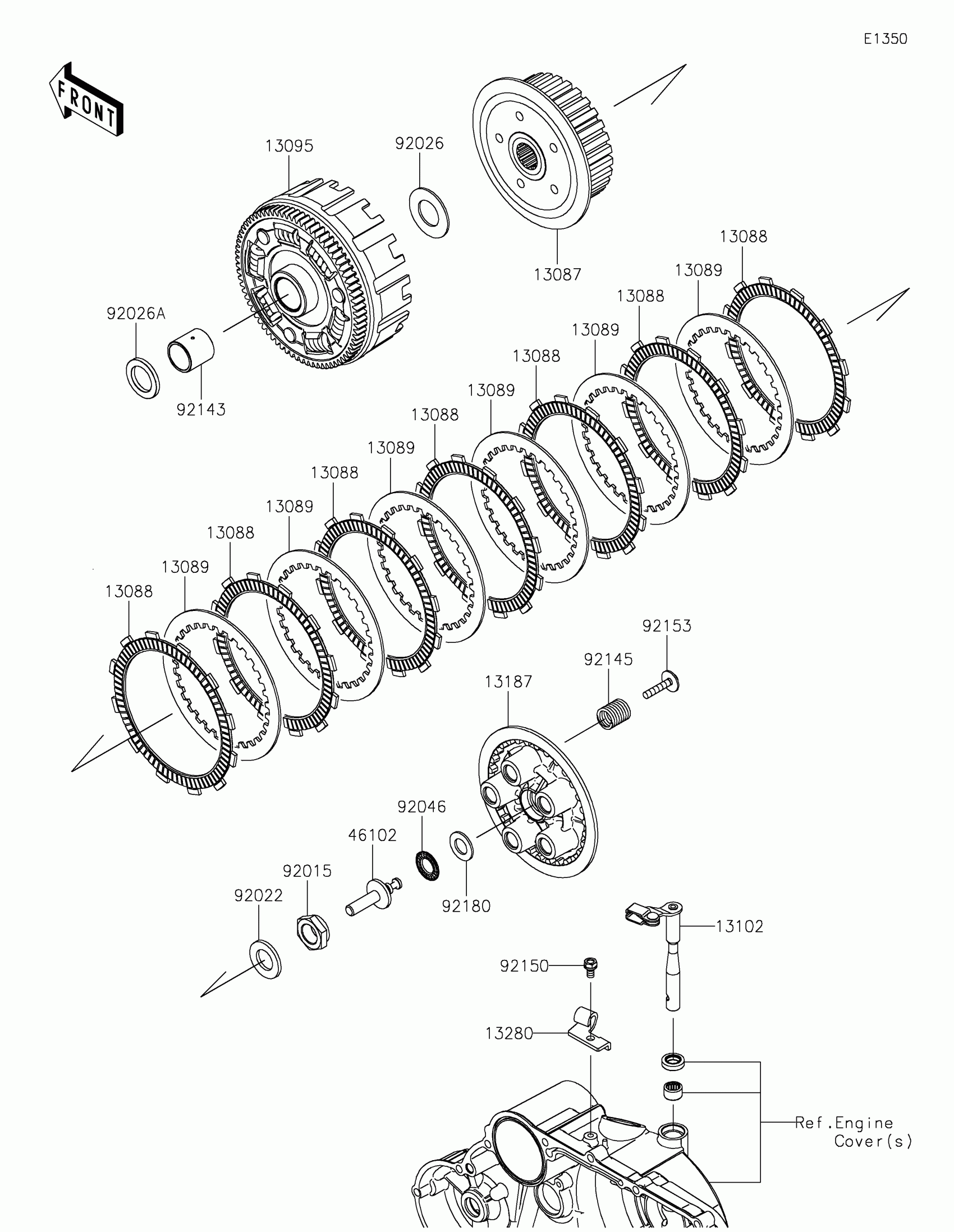

Find the part on the Clutch diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S ABS Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0046

1

$149.30

In stock

13088

PLATE-FRICTION

13088-0023

1

$13.11

In stock

13089

PLATE-CLUTCH,T=2.3

13089-0016

1

$10.10

In stock

13095

HOUSING-COMP-CLUTCH

13095-0129

1

$517.43

In stock

13102

RELEASE-COMP-CLUTCH

13102-0083

1

$61.78

In stock

13187

1

$76.97

In stock

13280

HOLDER

13280-0379

1

$13.47

In stock

46102

ROD

46102-0668

1

$20.06

In stock

92015

NUT,20MM

92015-1555

1

$10.37

In stock

92022

WASHER,20.3X36X3.7

92022-1868

1
Out of stock

92026

SPACER,25.5X48X2

92026-0114

1
Out of stock

92026A

SPACER,25.1X38X4

92026-0154

1
Out of stock

92046

1

$11.45

In stock

92143

COLLAR

92143-1769

1

$33.81

In stock

92145

SPRING,CLUTCH

92145-0796

1

$6.75

In stock

92150

BOLT,6X12

92150-1965

1

$3.85

In stock

92153

BOLT,UPSET-WP,6X32

92153-1880

1

$2.71

In stock

92180

SHIM,15.3X27.5X2.0

92180-0149

1

$3.51

In stock
