2025 Kawasaki KLR650 S ABS Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

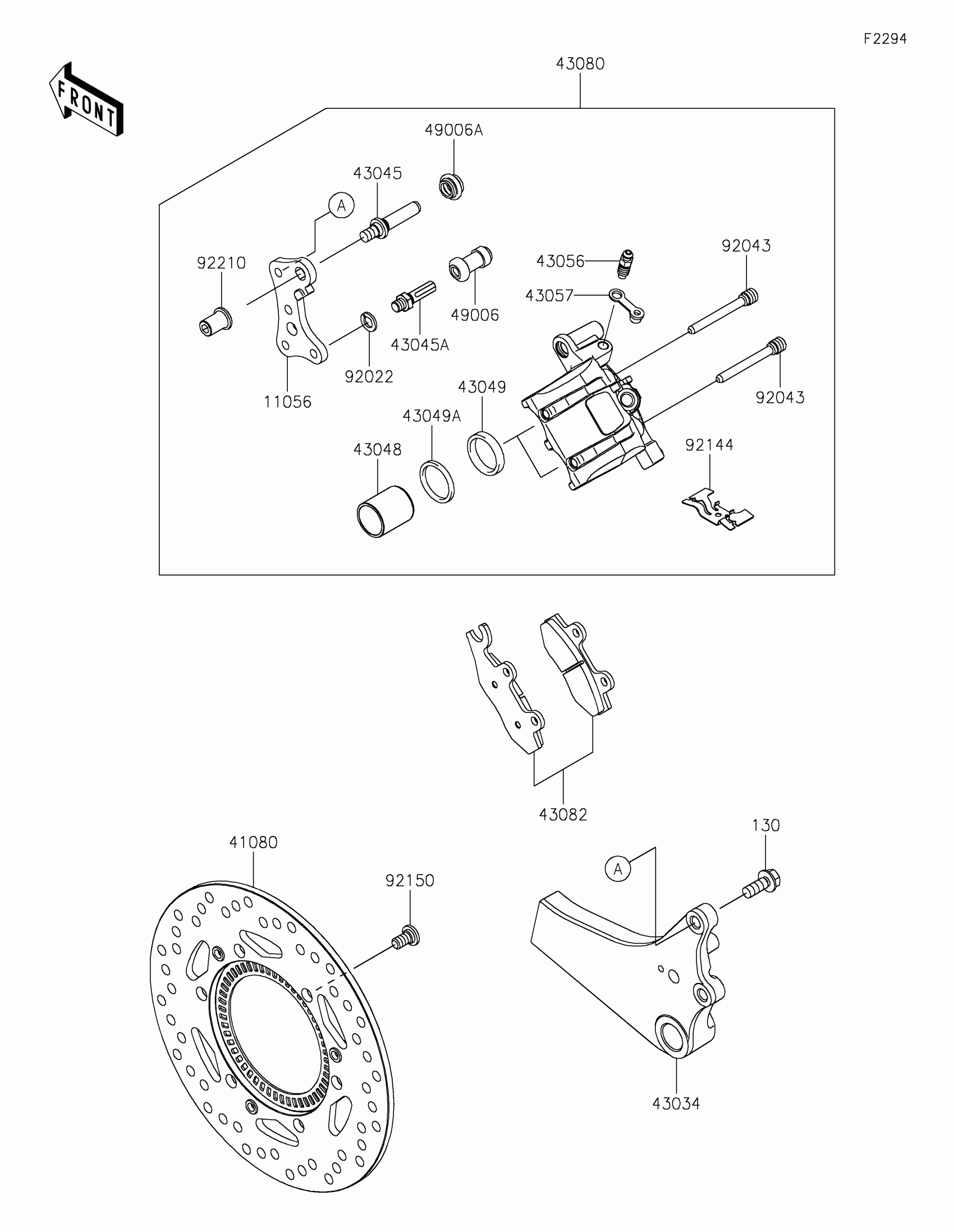

2025 Kawasaki KLR650 S ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,CALIPER

11056-0202

1
Out of stock

41080

DISC,RR,ABS,BLACK

41080-0731-11H

1
Out of stock

43034

HOLDER-BRAKE

43034-0164

1
Out of stock

43045

SHAFT-CALIPER

43045-0013

1
Out of stock

43045A

SHAFT-CALIPER

43045-1010

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER-BRAKE

43056-0004

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0232-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0080

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92022

WASHER,WAVE

92022-1373

1
Out of stock

92043

PIN,HANGER

92043-1416

1
Out of stock

92144

SPRING,PAD

92144-1847

1
Out of stock

92150

BOLT,DISC PLATE,8X15

92150-1811

1
Out of stock

92210

NUT

92210-0615

1
Out of stock

130

BOLT-FLANGED,8X20

130BA0820

1
Out of stock
