2025 Kawasaki KLR650 S ABS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

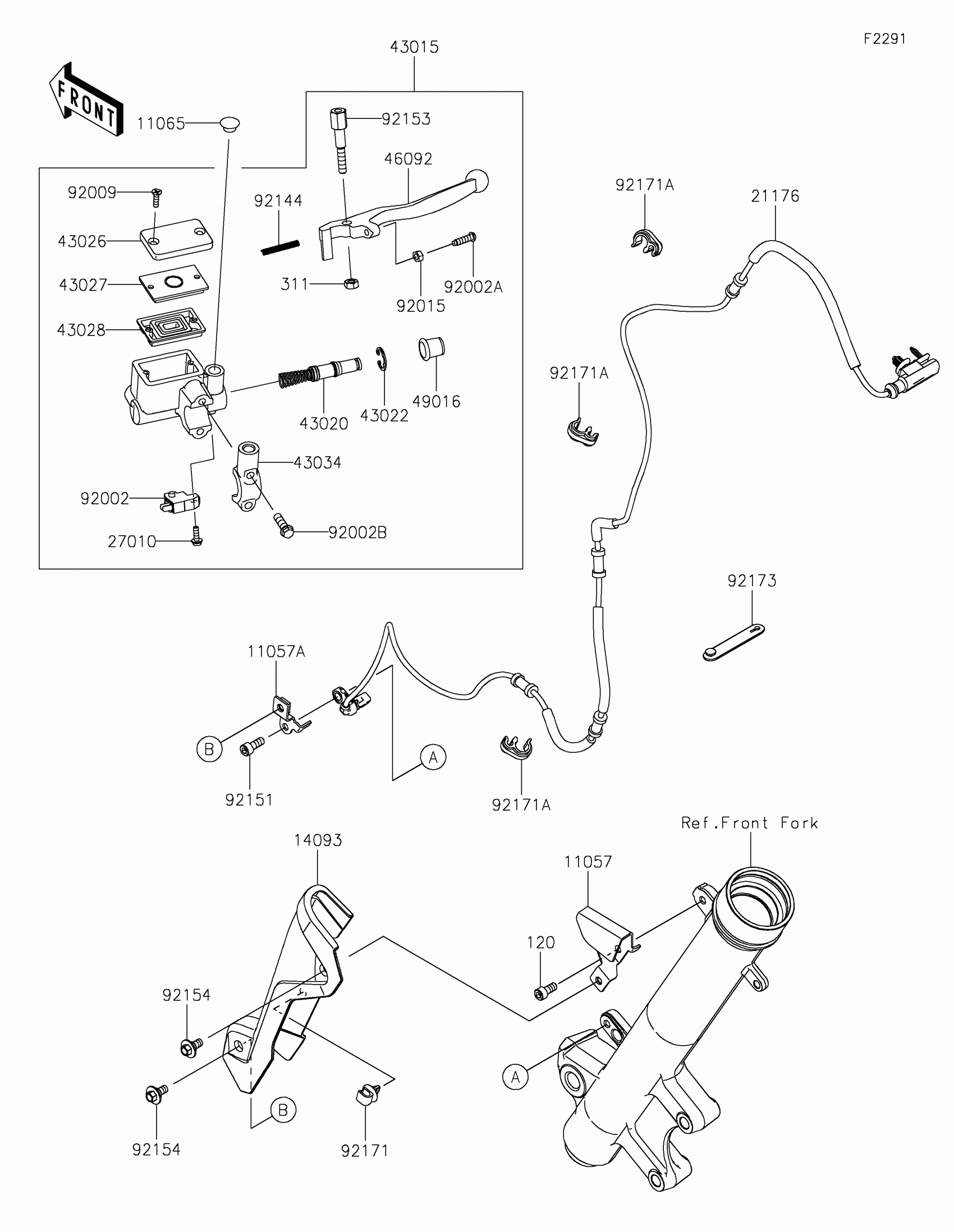

2025 Kawasaki KLR650 S ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS SENSOR COVER

11057-4375

1
Out of stock

11057A

BRACKET,SPEED SENSOR

11057-4376

1
Out of stock

11065

CAP,DUMMY

11065-0921

1
Out of stock

14093

COVER,ABS SENSOR

14093-0863

1
Out of stock

21176

SENSOR,SPEED,FR

21176-0994

1
Out of stock

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0788

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1104

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-1082

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1057

1
Out of stock

43028

DIAPHRAGM

43028-1061

1
Out of stock

43034

HOLDER-BRAKE

43034-0145

1
Out of stock

46092

LEVER-GRIP,FRONT BRAKE

46092-1175

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT,ADJUST

92002-1893

1
Out of stock

92002B

BOLT

92002-1894

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,ADJUST

92015-1642

1
Out of stock

92144

SPRING,RETURN

92144-1103

1
Out of stock

92151

BOLT

92151-1166

1
Out of stock

92153

BOLT,LEVER SET

92153-0790

1
Out of stock

92154

BOLT,FLANGED,6X9

92154-0546

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-1819

1
Out of stock

92173

CLAMP

92173-2199

1
Out of stock

120

BOLT-SOCKET,6X14

120CA0614

1
Out of stock

311

NUT-HEX,6MM

311BB0600

1
Out of stock
