2025 Kawasaki KLR650 S ABS Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

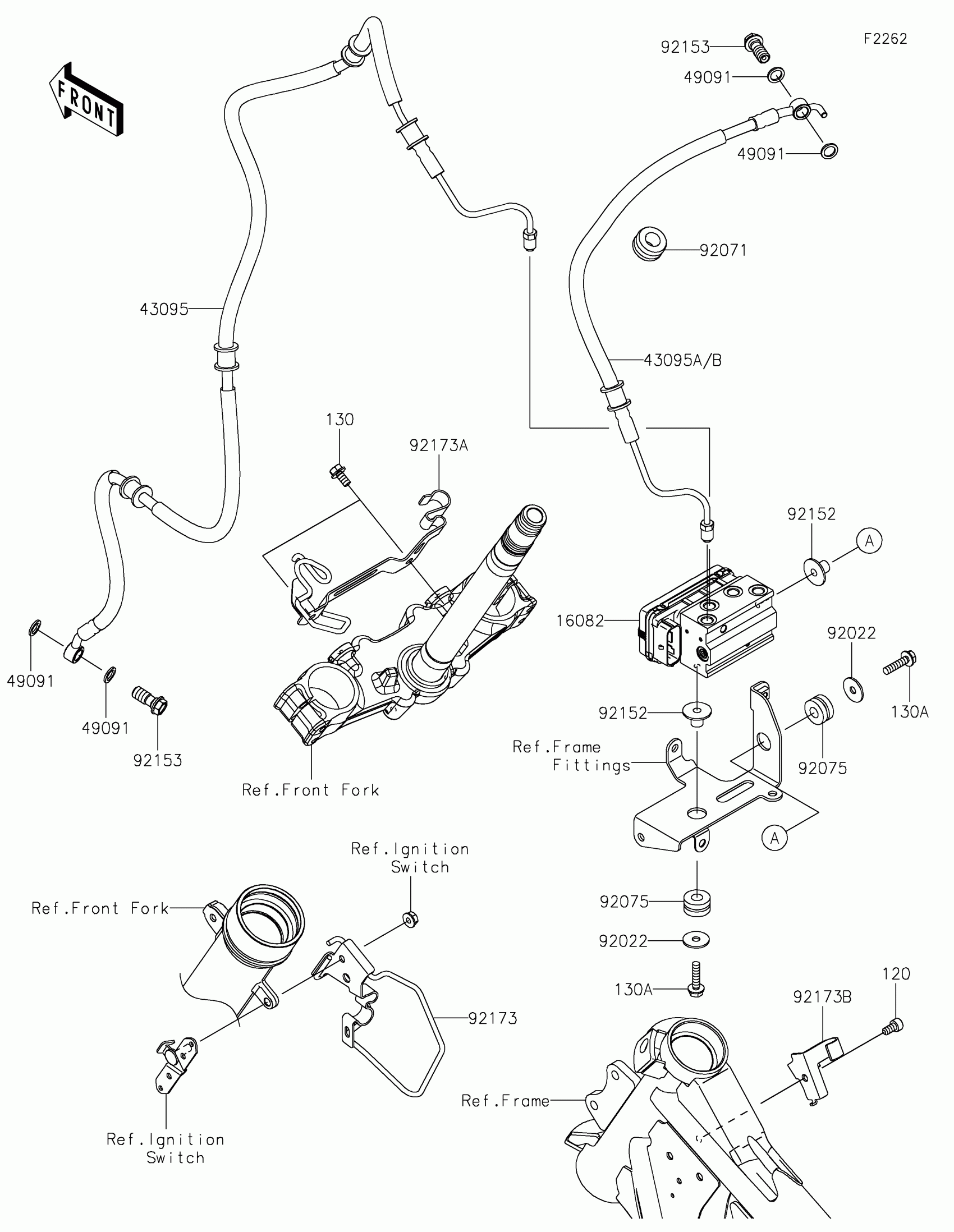

2025 Kawasaki KLR650 S ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16082

PUMP-ASSY-OIL,ABS,BOSCH,10MB

16082-0852

1
Out of stock

43095

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1757

1
Out of stock

43095B

HOSE-BRAKE,FR M/C-ABS UNIT

43095-1966

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92071

GROMMET,12.2X26X16

92071-0785

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92152

COLLAR,6.5X10X13.6

92152-2204

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92173

CLAMP

92173-2348

1
Out of stock

92173A

CLAMP

92173-2350

1
Out of stock

92173B

CLAMP

92173-2352

1
Out of stock

120

BOLT-SOCKET,6X12

120CA0612

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

130A

BOLT-FLANGED,6X25

130BA0625

1
Out of stock
