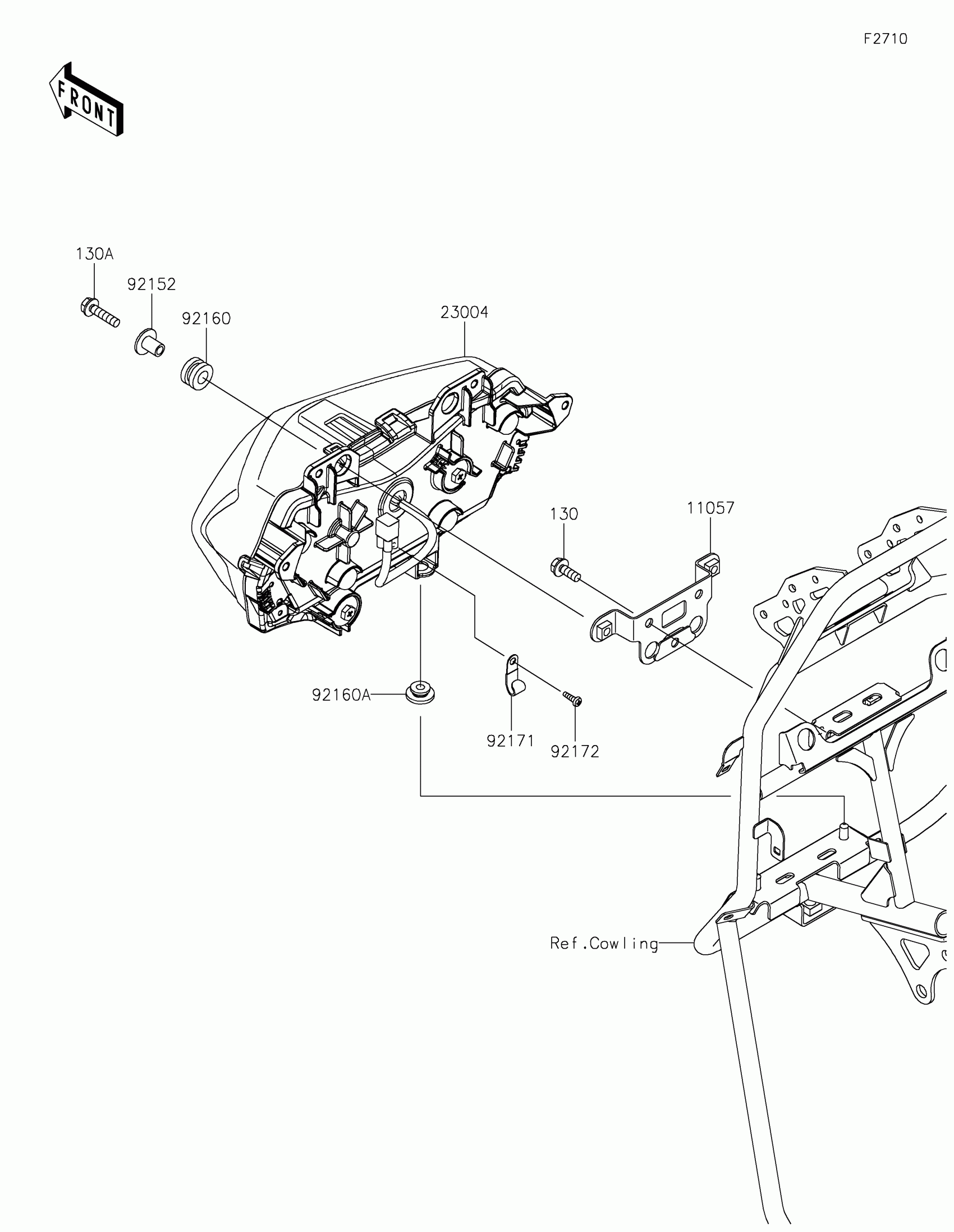

Find the part on the Headlight diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HEAD LAMP

11057-7884

1

$12.95

In stock

23004

LAMP-HEAD,LED

23004-0414

1

$1,249.46

In stock

92152

COLLAR,6.3X20X15.1

92152-2322

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92160A

DAMPER

92160-1613

1

$2.97

In stock

92171

CLAMP

92171-1539

1

$2.29

In stock

92172

SCREW,TAPPING,4X12

92172-0233

1

$1.20

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
