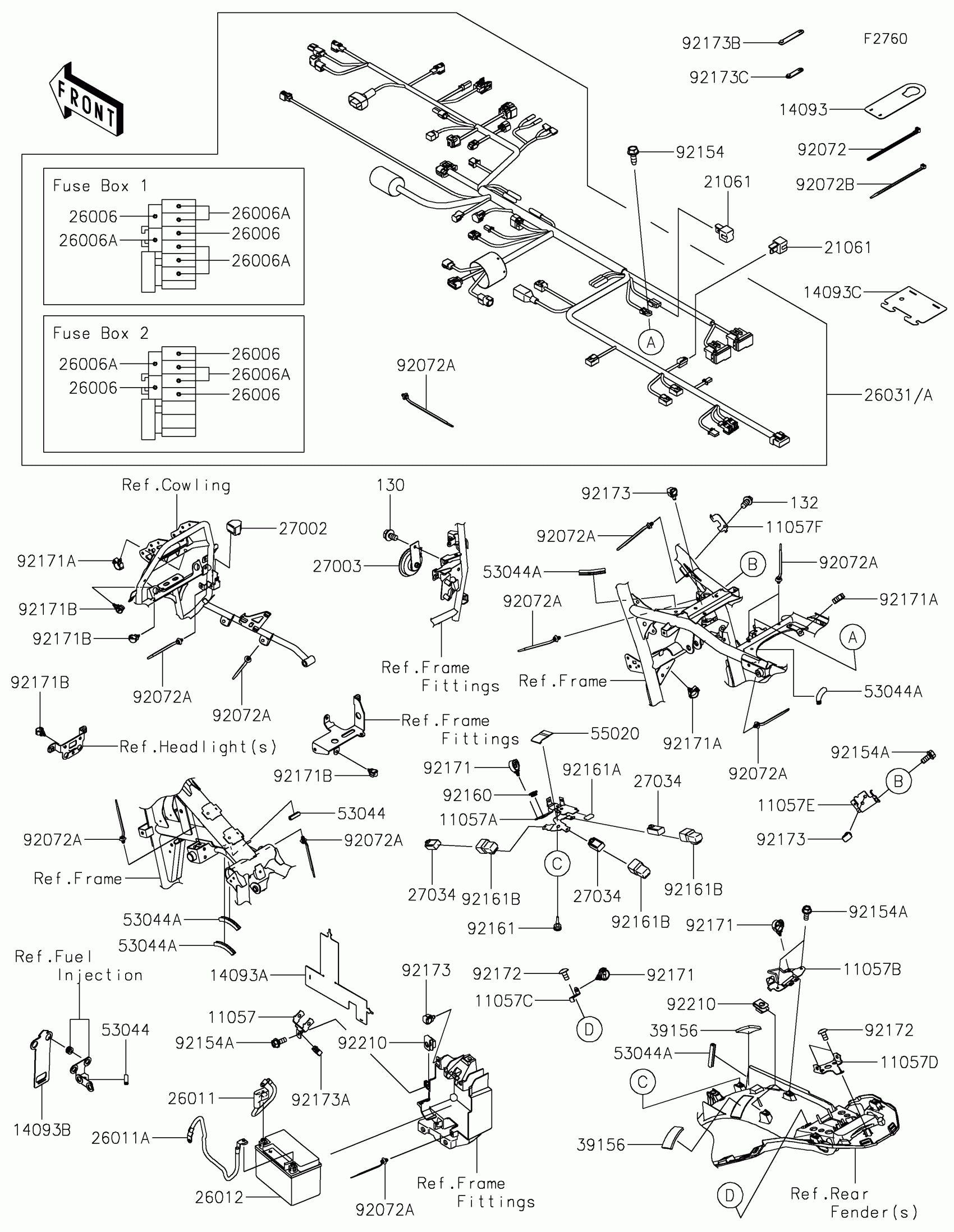

Find the part on the Chassis Electrical Equipment diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,MAGNETIC SWITCH

11057-4292

1
Out of stock

11057A

BRACKET,FUSE BOX

11057-4295

1
Out of stock

11057B

BRACKET,RR HARNESS

11057-4298

1
Out of stock

11057C

BRACKET,HARNESS GUIDE

11057-4301

1
Out of stock

11057D

BRACKET,ECU

11057-4302

1
Out of stock

11057E

BRACKET,RR SPEED SENSOR

11057-4378

1
Out of stock

11057F

BRACKET,OXYGEN SENSOR

11057-4379

1
Out of stock

14093

COVER,IGNITION SWITCH

14093-1044

1
Out of stock

14093A

COVER,MAGNETIC SWITCH

14093-1197

1
Out of stock

14093B

COVER

14093-1214

1
Out of stock

14093C

COVER,HARNESS

14093-1539

1
Out of stock

21061

RECTIFIER

21061-1003

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-1935

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-1937

1
Out of stock

26012

BATTERY,FTX9-BS,12V 8AH

26012-0608

1
Out of stock

26031A

HARNESS,MAIN

26031-3899

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

1
Out of stock

27003

HORN

27003-0163

1
Out of stock

27034

RELAY

27034-0012

1
Out of stock

39156

PAD,30X55X5

39156-2694

1
Out of stock

53044

TRIM,L=30

53044-0001

1
Out of stock

53044A

TRIM,L=60

53044-0032

1
Out of stock

55020

GUARD,50X30

55020-2334

1
Out of stock

92072

BAND,L=140

92072-1293

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92072B

BAND,L=152

92072-3874

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92154A

BOLT,FLANGED,5X12

92154-2893

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-0901

1
Out of stock

92161A

DAMPER,12X23

92161-1367

1
Out of stock

92161B

DAMPER

92161-2290

1
Out of stock

92171

CLAMP,20MM DIA.

92171-0069

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-0316

1
Out of stock

92171B

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92173A

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92173B

CLAMP

92173-2194

1
Out of stock

92173C

CLAMP

92173-2198

1
Out of stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BB0612

1
Out of stock

26031

HARNESS,MAIN

26031-3898

1
Out of stock
