2025 Kawasaki KLR650 S ABS Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

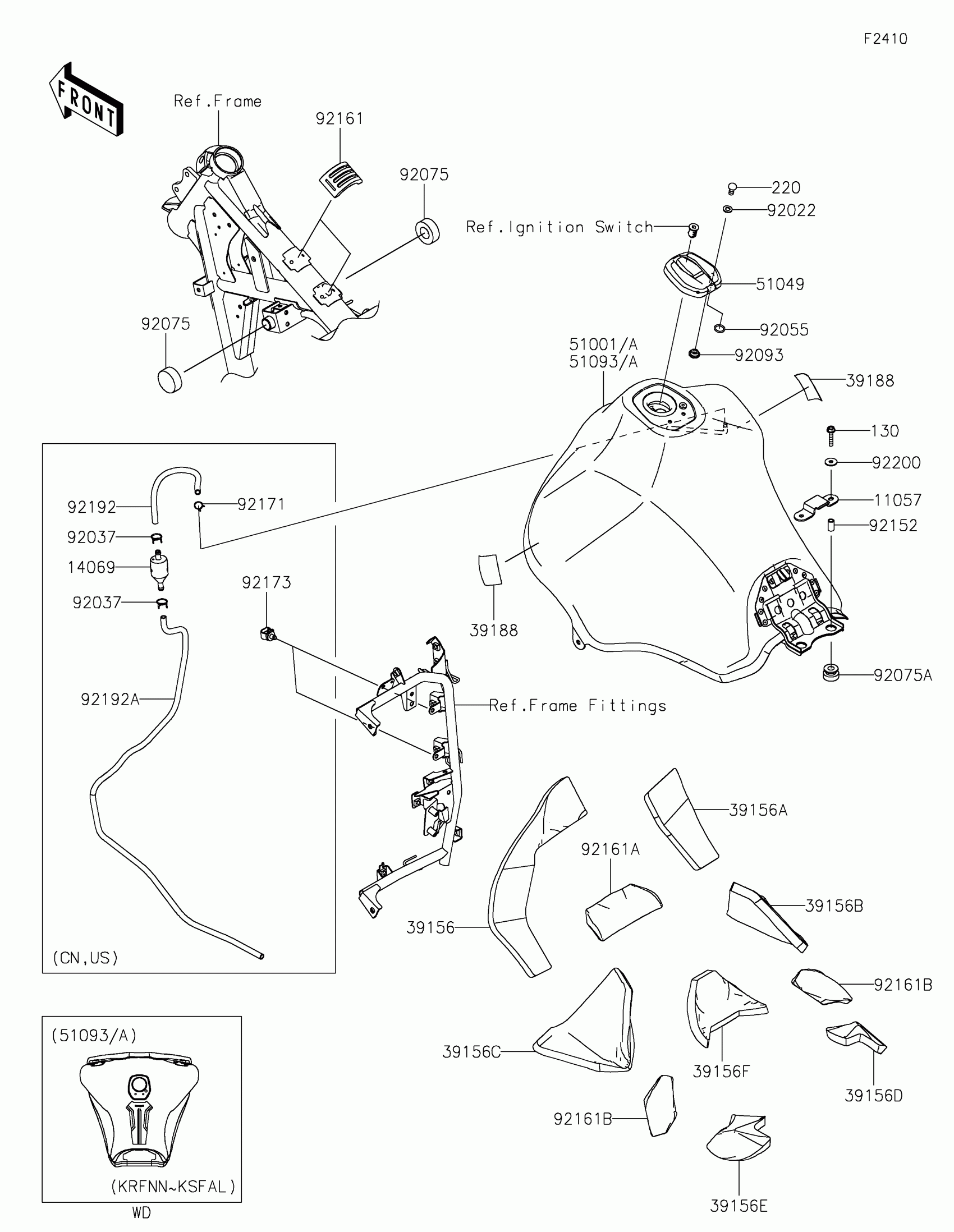

2025 Kawasaki KLR650 S ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SEAT

11057-4274

1
Out of stock

39156

PAD,FR,LH

39156-2664

1
Out of stock

39156A

PAD,FR,RH

39156-2665

1
Out of stock

39156B

PAD,MID,RH

39156-2701

1
Out of stock

39156C

PAD,MID,LH

39156-2702

1
Out of stock

39156D

PAD,RR,RH

39156-2703

1
Out of stock

39156E

PAD,RR,LH

39156-2704

1
Out of stock

39156F

PAD,CNT

39156-2705

1
Out of stock

39188

TAPE,40X50

39188-0049

1
Out of stock

51049

CAP-TANK,FUEL

51049-0760

1
Out of stock

51093

TANK-COMP-FUEL,M.C.GRAY

51093-5173-51A

1
Out of stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92055

RING-O

92055-1023

1
Out of stock

92075

DAMPER,FUEL TANK

92075-101

1
Out of stock

92075A

DAMPER

92075-1660

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92152

COLLAR,6.8X10X18

92152-2726

1
Out of stock

92161

DAMPER

92161-2372

1
Out of stock

92161A

DAMPER,CNT

92161-2394

1
Out of stock

92161B

DAMPER,LH&RH

92161-2395

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-1962

1
Out of stock

130

BOLT-FLANGED,6X30

130BB0630

1
Out of stock

220

SCREW-PAN-CROS,5X10

220AA0510

1
Out of stock

14069

BREATHER,FUEL TANK

14069-1004

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92171

CLAMP,8X0.7

92171-1973

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92192

TUBE,BREATHER,6X9X220

92192-2441

1
Out of stock

92192A

TUBE,BREATHER,6X9X900

92192-2442

1
Out of stock
