2025 Kawasaki KLR650 S ABS Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

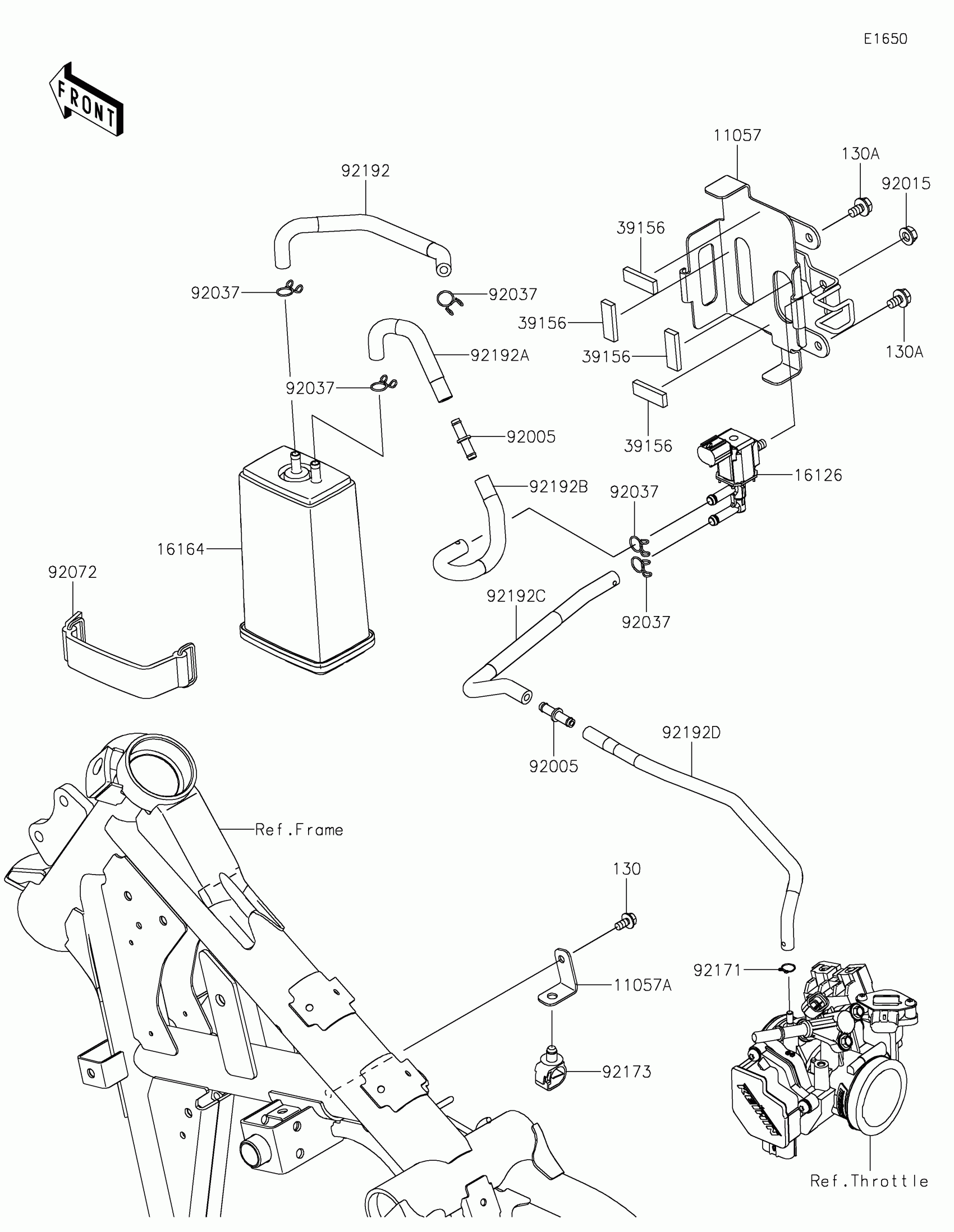

2025 Kawasaki KLR650 S ABS Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,CANISTER

11057-4309

1
Out of stock

11057A

BRACKET,EVAPO TUBE

11057-4394

1
Out of stock

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

39156

PAD,10X30X4

39156-0927

1
Out of stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92072

BAND,L=90

92072-0135

1
Out of stock

92171

CLAMP

92171-0573

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92192

TUBE,TANK-CANISTER

92192-2455

1
Out of stock

92192A

TUBE,CANISTER-FITTING

92192-2456

1
Out of stock

92192B

TUBE,FITTING-VALVE

92192-2457

1
Out of stock

92192C

TUBE,VALVE-FITTING

92192-2458

1
Out of stock

92192D

TUBE,FITTING-THROTTLEBODY

92192-2591

1
Out of stock

130

BOLT-FLANGED,5X10

130BA0510

1
Out of stock

130A

BOLT-FLANGED,6X10

130BA0610

1
Out of stock
