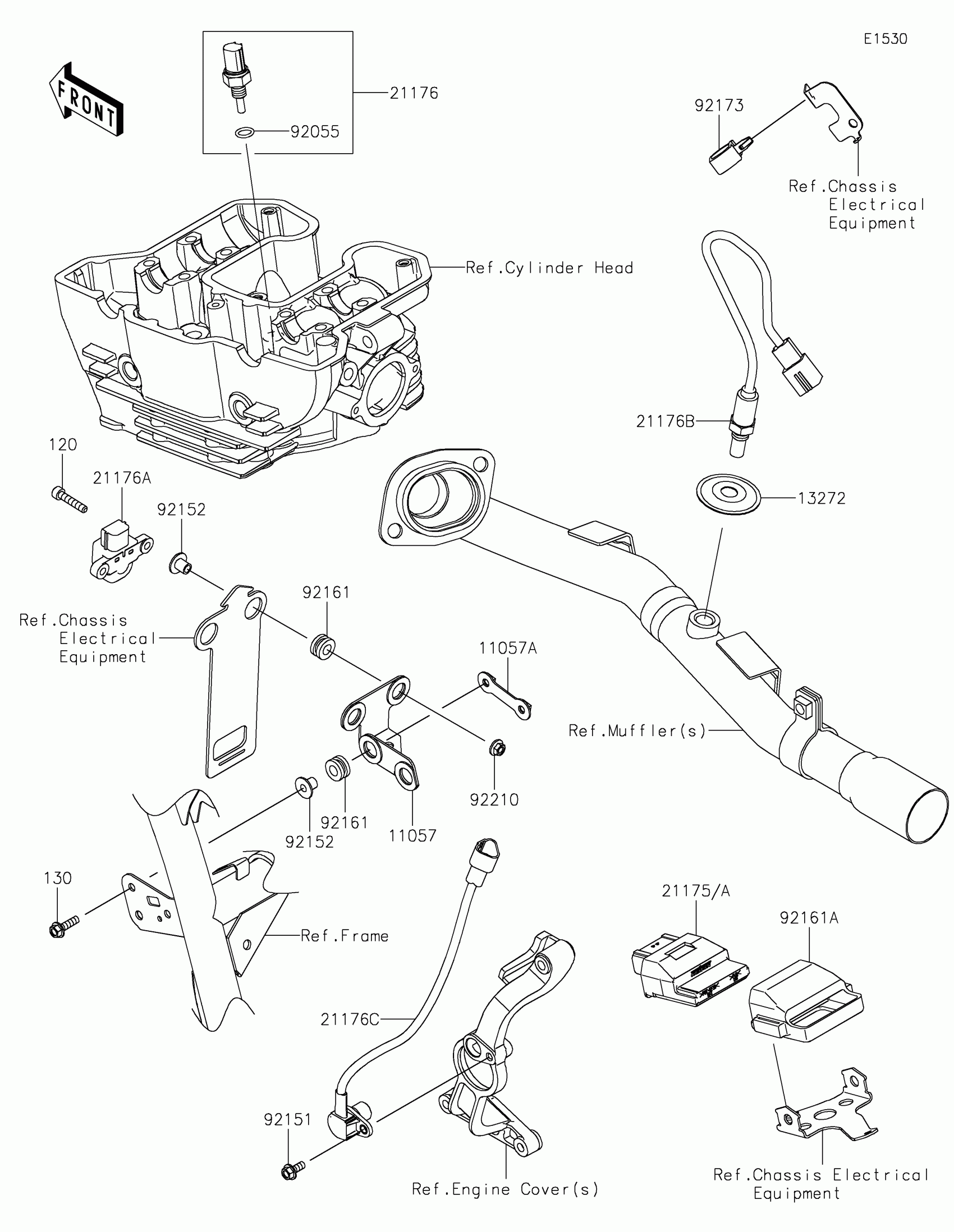

Find the part on the Fuel Injection diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 S ABS Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

1

$2.46

In stock

11057A

BRACKET

11057-7434

1

$2.12

In stock

13272

PLATE,O2 SENSOR

13272-3888

1

$1.59

In stock

21175A

1

$388.27

In stock

21176

SENSOR,WATER TEMP

21176-0009

1

$63.44

In stock

21176A

SENSOR,VEHICLE-DOWN

21176-0067

1

$92.11

In stock

21176B

SENSOR,OXYGEN

21176-0993

1

$239.98

In stock

21176C

SENSOR,SPEED SENSOR

21176-0996

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92151

BOLT,FLANGED,5X12

92151-1305

1

$1.39

In stock

92152

COLLAR

92152-1592

1
Out of stock

92161

DAMPER,8X16X8.6

92161-0685

1

$5.24

In stock

92161A

DAMPER,ECU

92161-2358

1

$7.20

In stock

92173

CLAMP

92173-2462

1

$1.59

In stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

120

BOLT-SOCKET,5X25

120CA0525

1

$3.86

In stock

130

BOLT-FLANGED,5X18

130BB0518

1

$1.71

In stock

21175

1

$388.27

In stock
