2025 Kawasaki KLR650 S ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

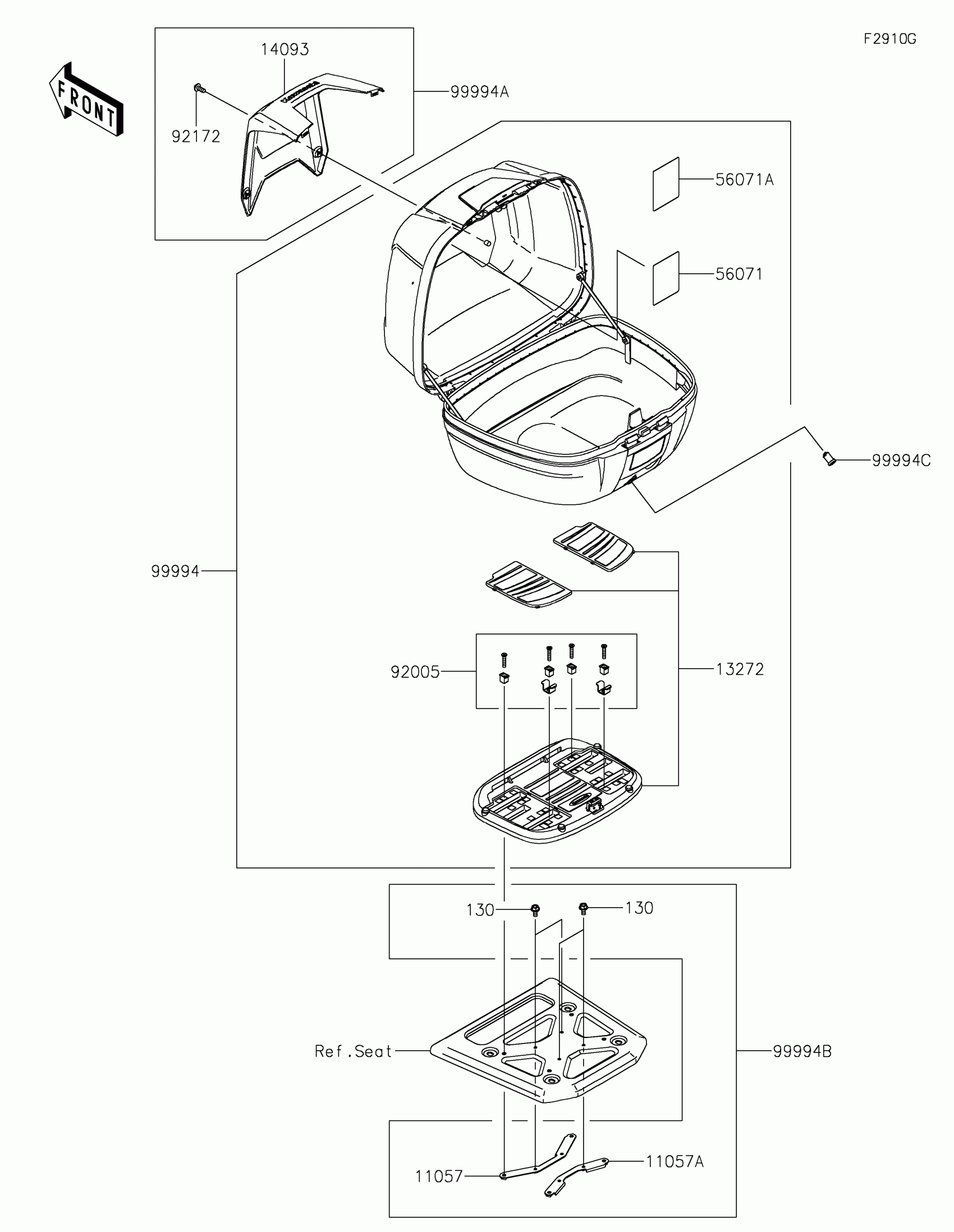

2025 Kawasaki KLR650 S ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-7099

1

$57.79

In stock

11057A

BRACKET

11057-7100

1

$57.79

In stock

13272

PLATE,TOPCASE BASE

13272-3743

1

$52.17

In stock

14093

COVER,TOPCASE,M.P.SILVER

14093-1067-GU

1

$79.22

In stock

56071

1

$44.95

In stock

56071A

1

$44.95

In stock

92005

FITTING

92005-1428

1

$99.83

In stock

92172

SCREW,SOCKET,5X14

92172-0823

1

$0.85

In stock

99994

TOPCASE

99994-1493

1

$288.42

In stock

99994A

PANEL-TOPCASE,M.P.SILVER

99994-1494-GU

1

$49.88

In stock

99994B

FITTING-TOPCASE

99994-1495

1

$67.06

In stock

99994C

ROTOR(INNER GROOVE)

99994-1496

1

$27.51

In stock

130

BOLT-FLANGED,5X10

130BA0510

1

$1.47

In stock
