2025 Kawasaki KLR650 S ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2025 Kawasaki KLR650 S ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

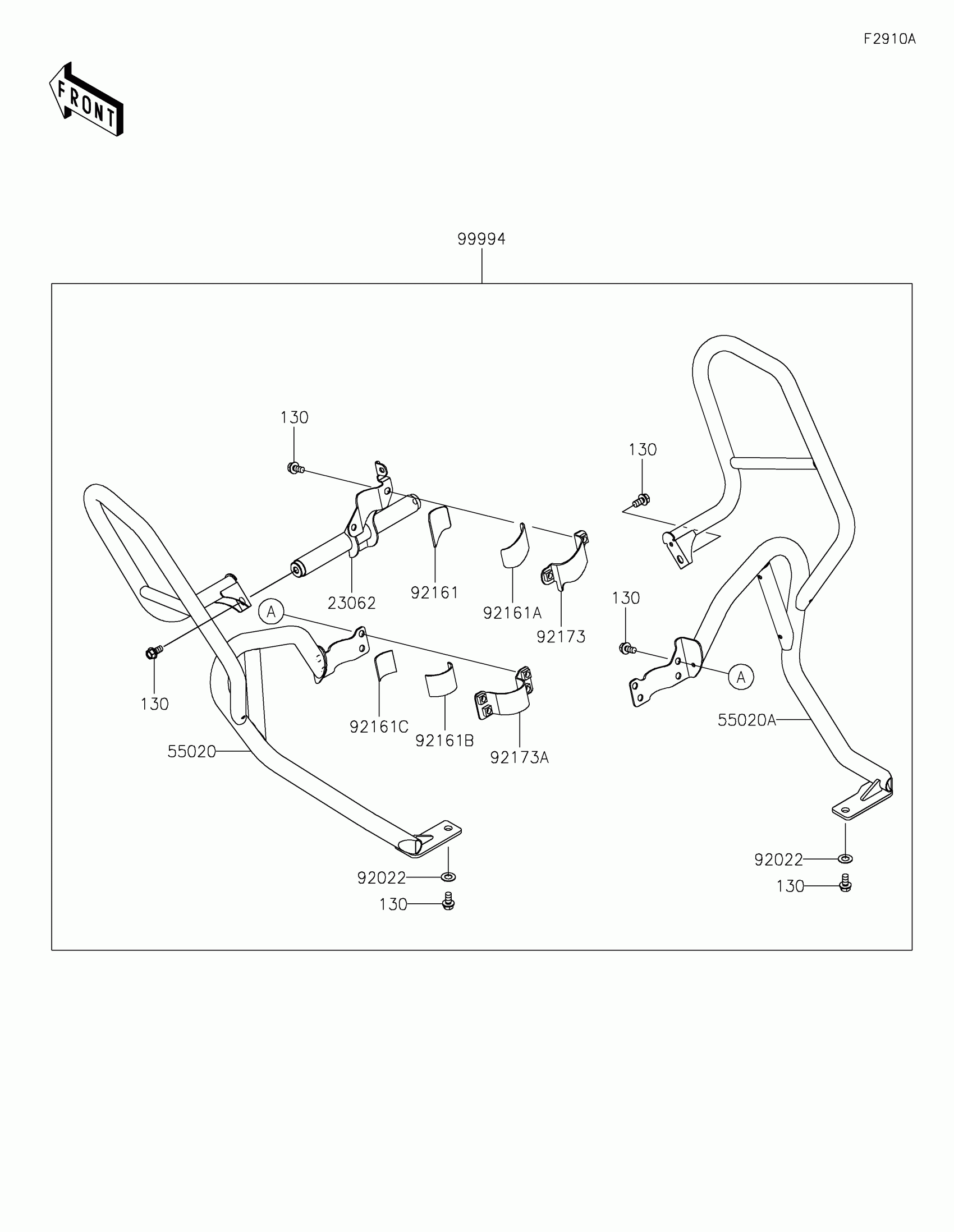

2025 Kawasaki KLR650 S ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23062

BRACKET-COMP,MID

23062-1365

1
Out of stock

55020

GUARD,LH

55020-2406

1
Out of stock

55020A

GUARD,RH

55020-2407

1
Out of stock

92022

WASHER,10.5X20X1

92022-239

1
Out of stock

92161

DAMPER

92161-2461

1
Out of stock

92161A

DAMPER

92161-2462

1
Out of stock

92161B

DAMPER

92161-2463

1
Out of stock

92161C

DAMPER

92161-2464

1
Out of stock

92173

CLAMP

92173-2518

1
Out of stock

92173A

CLAMP

92173-2519

1
Out of stock

99994

FRAME-SLIDER(VER.2)

99994-1849

1
Out of stock

130

BOLT-FLANGED,8X16

130CA0816

1
Out of stock
