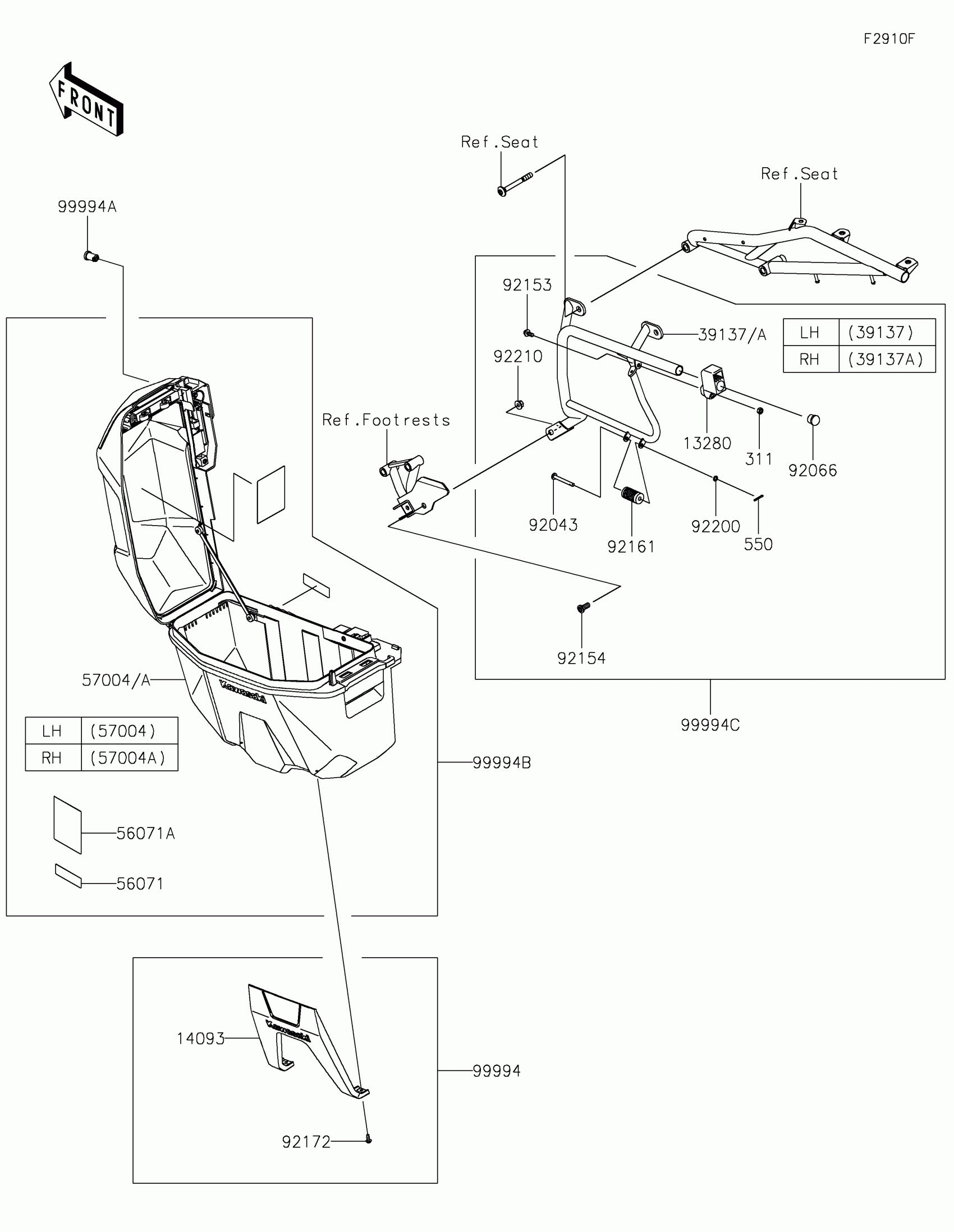

Kawasaki KLR650 S ABS Accessory(Pannier Case) Diagram

Description

Price

13280

HOLDER,PANNIER

13280-1314

$33.38

14093

COVER,PANNIER,M.P.SILVER

14093-1068-GU

$151.38

39137

STAY-COMP,LH

39137-0738

Unavailable

39137A

STAY-COMP,RH

39137-0739

$78.03

56071

LABEL-WARNING,PICTOGRAM

56071-0457

$7.27

56071A

LABEL-WARNING,PICTOGRAM

56071-1042

$44.95

57004

BAG-ASSY,PANNIER,LH

57004-0023

$358.01

57004A

BAG-ASSY,PANNIER,RH

57004-0024

$346.63

92043

PIN,6X44.5

92043-1110

Unavailable

92066

PLUG

92066-1484

Unavailable

92153

BOLT,FLANGED,6X14

92153-1571

$1.81

92154

BOLT,SOCKET8X20

92154-1711

$1.68

92161

DAMPER

92161-2401

$5.88

92172

SCREW,SOCKET,5X14

92172-0823

$0.73

92200

WASHER,6.2X10X1

92200-1465

$1.20

92210

NUT,FLANGED,8MM

92210-0304

$2.34

99994

PANEL-SIDECASES,M.P.SILVER

99994-1491-GU

$118.99

99994A

ROTOR(2PC)

99994-1566

$58.32

99994B

SIDECASES

99994-1866

$735.59

99994C

FITTING-SIDECASES

99994-1942

$25.10

311

NUT-HEX,6MM

311BA0600

$1.58

550

PIN-COTTER,2.0X15

550AA2015

$0.90
