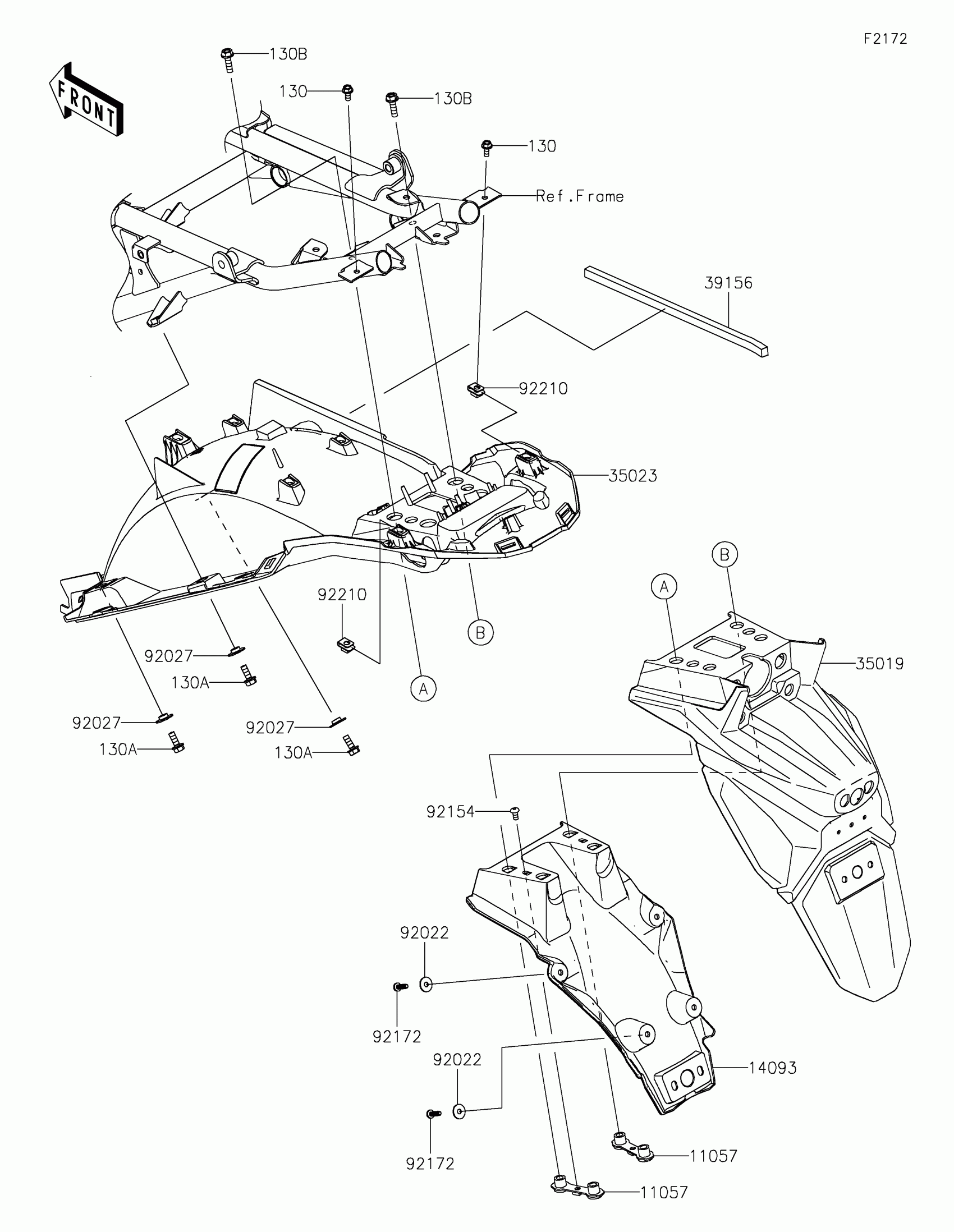

Find the part on the Rear Fender diagram for your 2025 Kawasaki KLR650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki KLR650 Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-0556

1
Out of stock

14093

COVER,FLAP

14093-1086

1
Out of stock

35019

FLAP

35019-0683

1
Out of stock

35023

FENDER-REAR

35023-0479

1
Out of stock

39156

PAD,10X8X280

39156-2662

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92027

COLLAR

92027-1794

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1547

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0790

1
Out of stock

92210

NUT,PLATE,5MM

92210-0935

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1
Out of stock

130A

BOLT-FLANGED,6X16

130BA0616

1
Out of stock

130B

BOLT-FLANGED,6X20

130BA0620

1
Out of stock
